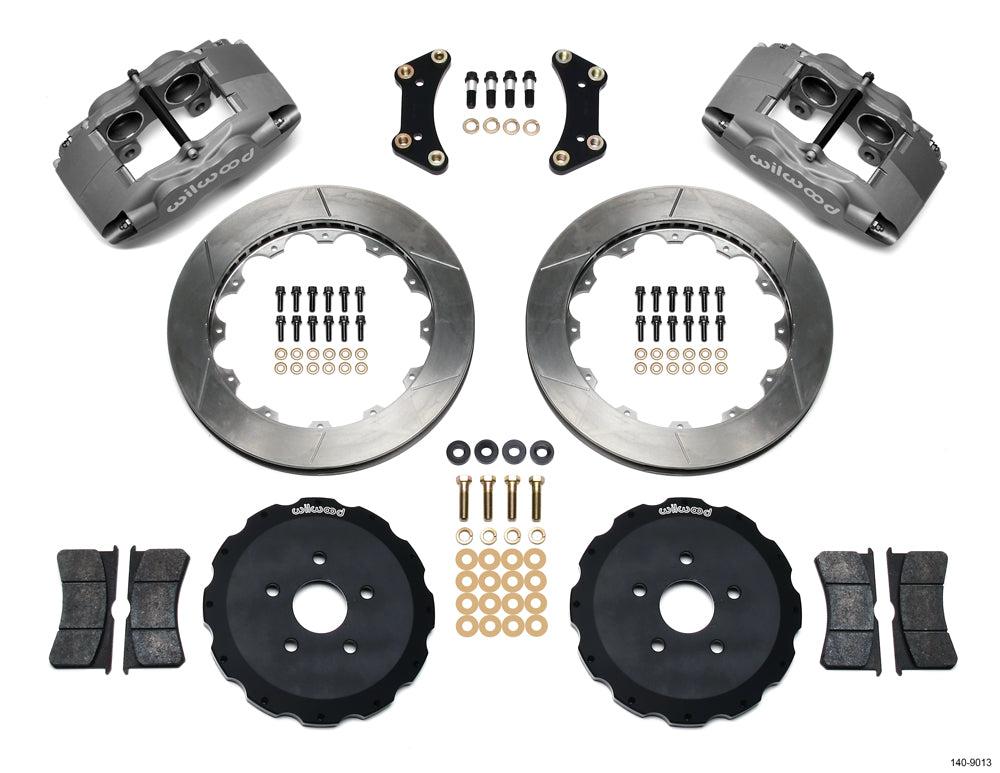

Wilwood front Superlite 4 kit for Scion tC, Type III anodized calipers and 12.88-inch gt slotted rotors laid out

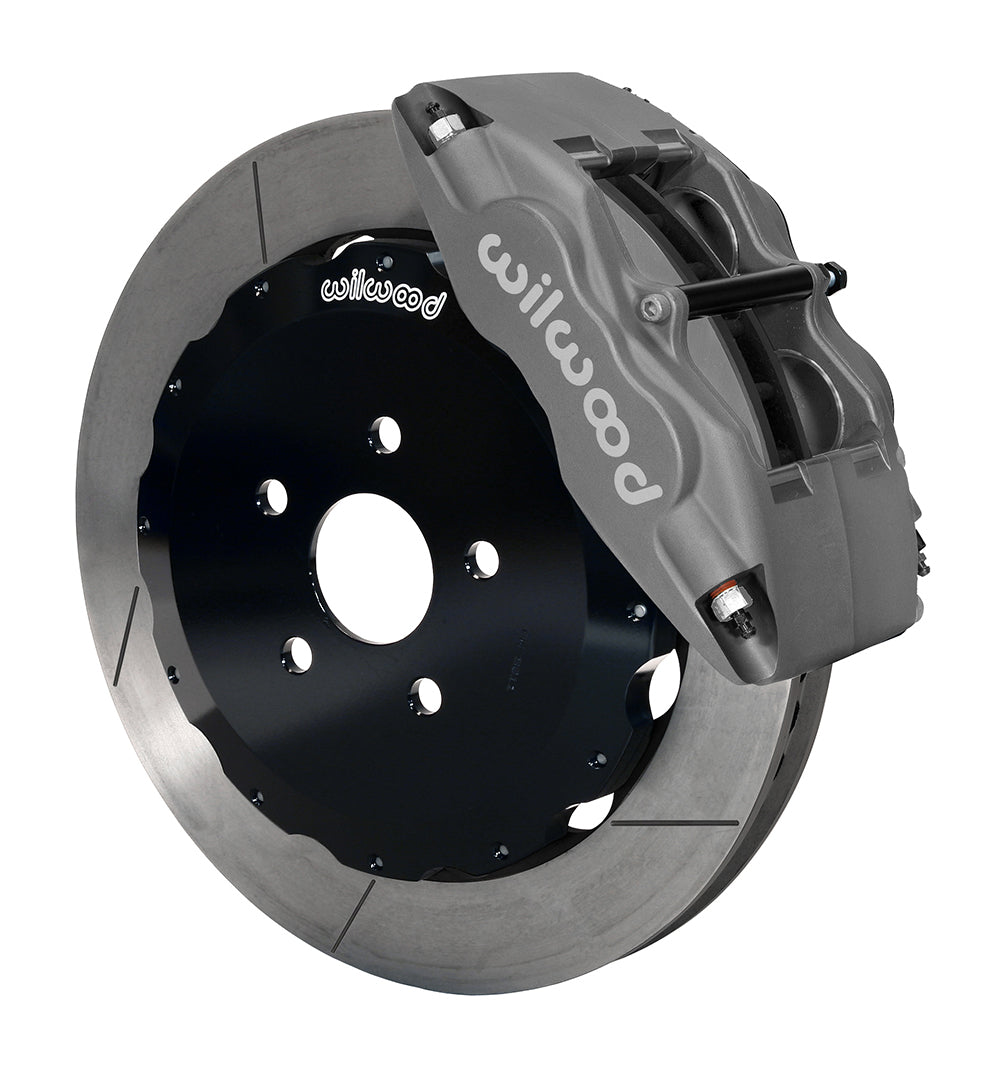

Wilwood Type III anodized Superlite 4 caliper and 12.88-inch gt slotted rotor for Scion tC, assembled front view
Wilwood front Superlite 4 kit for Scion tC, Type III anodized calipers and 12.88-inch gt slotted rotors laid out
Wilwood Type III anodized Superlite 4 caliper and 12.88-inch gt slotted rotor for Scion tC, assembled front view

Wilwood Front 12.88-Inch GT-Slotted Brake Kit — Type III Anodized Superlite 4 for Scion tC (2005–2010)

SKU: 140-9013

$1,529.56 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The Scion tC front kit combines Type III anodized Superlite Internal calipers with 12.88-inch GT rotors. Four-piston calipers work with 1.10-inch-thick rotors and application-specific hats over the retained factory hubs. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

  • Manufacturer part number: 140-9013
  • Service calipers: 4-piston Forged Superlite Internal; Type III Anodize; lug mounting
  • Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 3.93 in; 5 x 99.82 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit

Fitment & Compatibility

For the first-generation Scion tC applications listed from 2005–2010. The actual rotor specification is 12.88 inches in diameter and 1.10 inches thick. The kit fits over the retained factory front hubs and uses four-piston Superlite Internal calipers.

Check the existing hub pattern and the complete wheel envelope in DS510. Front flexline kit 220-9365 is separate. The factory master cylinder can be used as documented, but the completed system still requires brake-bias evaluation and testing.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
2005-2010 Scion tC All Disc Disc Front Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Front line-kit reference: 220-9365
