Wilwood Front Red TC6 Conversion with Drilled/Slotted 16-Inch Rotors for GM Six-Lug Trucks & SUVs (1999–2020)

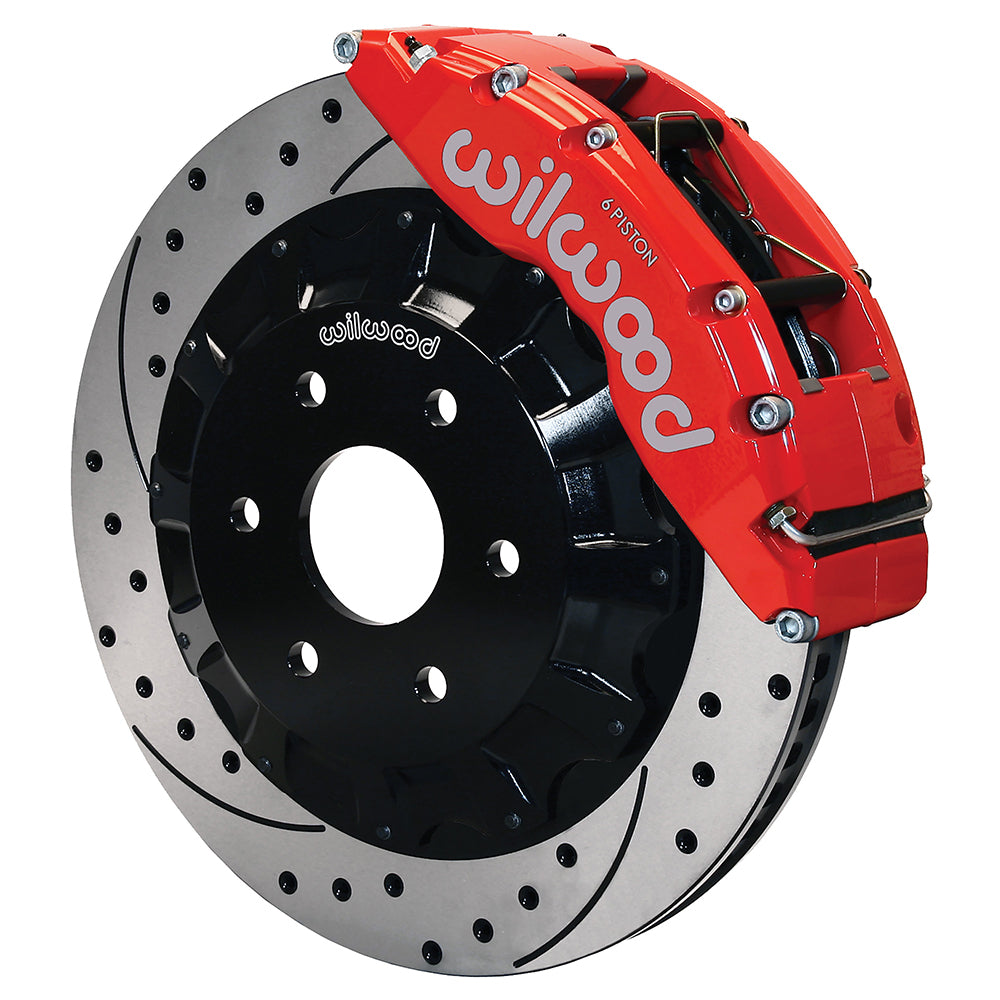

Red TC6 calipers distinguish this GM front conversion, which includes 16-inch SRP iron rotors and application-specific hats. Later spindle castings and the original dust shields may require the modifications documented in DS506. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

• Manufacturer part number: 140-8992-DR
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 6 X 5.5 in; 6 X 139.7 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.630 in; 16.00 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

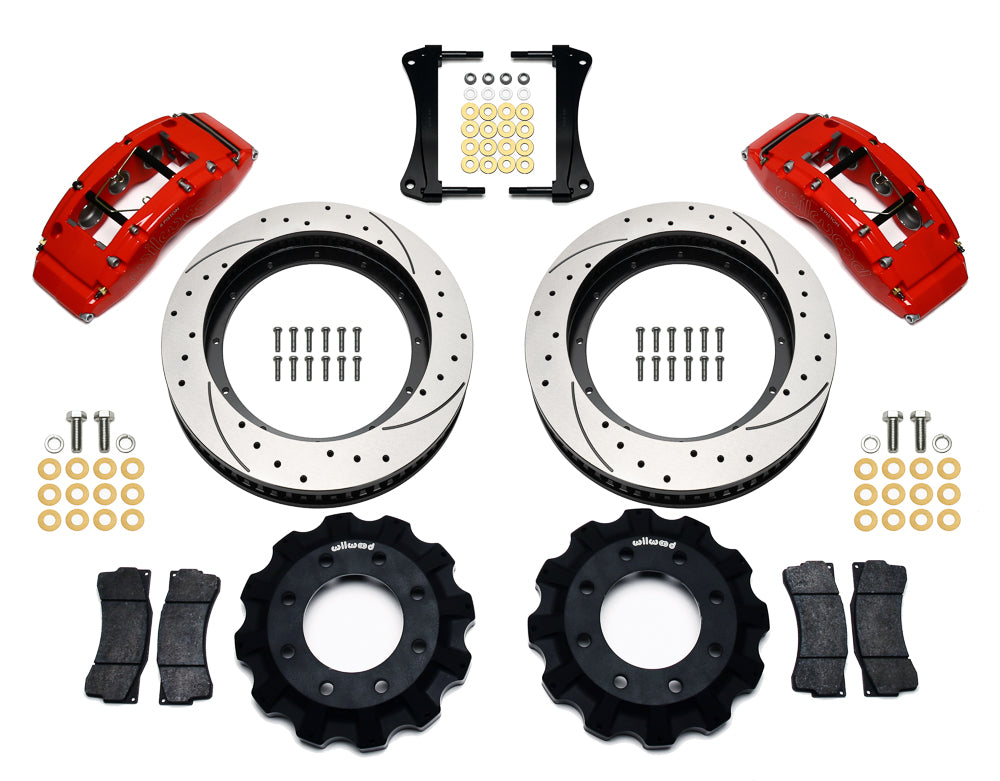

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 20-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 6-piston TC6; Red Powder Coat; radial mounting
• Brake rotors: 16.00 x 1.38 inches; Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

For the qualified six-lug Chevrolet, GMC and Cadillac truck/SUV applications below. Coverage includes Silverado/Sierra 1500 through 2018 plus the specified 2019 LD/Limited carryover models, and listed Tahoe, Suburban, Yukon, Yukon XL and Escalade variants through 2020. Avalanche and Escalade EXT have their own earlier end years; trim, police-package and generation restrictions still apply.

DS506 covers factory aluminum and iron spindles. Later casting parting lines may need light machining, and the lower dust shield requires trimming. Flexlines are separate: the instructions identify 220-8998 for 1999–2006 and 220-10980 for the later 16-inch arrangement; confirm the exact year and chassis connection before purchase.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. Kit will work with both Iron / Steel and Aluminum spindles.
2. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885.
3. Line kit included (manufacturer): None
4. Front line-kit references for this 16-inch package: 220-8998 for the earlier connection and 220-10980 for the later connection. Verify the exact vehicle year and fittings.
5. 2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
6. For OE rears with dual piston calipers.
