Wilwood Front GM Six-Lug Truck/SUV Brake Kit (1999–2020), Black TC6 Calipers & 16-Inch SRP Rotors

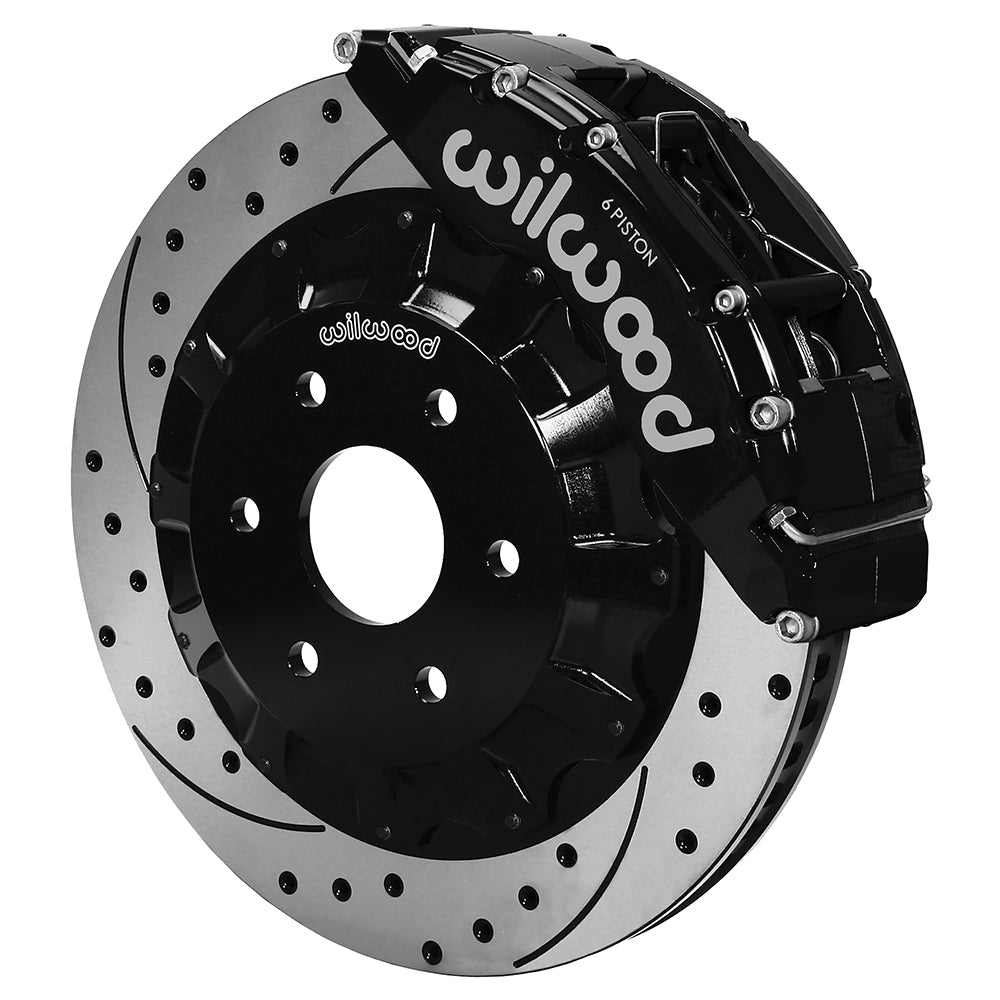

The drilled/slotted 16-inch rotor option is supplied with black six-piston TC6 calipers for the qualified GM six-lug front applications. This package retains the original hubs and requires enough wheel space for the complete caliper-and-rotor envelope. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.

Technical Details

• Manufacturer part number: 140-8992-D
• Brake rotors: 16.00 x 1.38 inches; Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 6 X 5.5 in; 6 X 139.7 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.630 in; 16.00 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

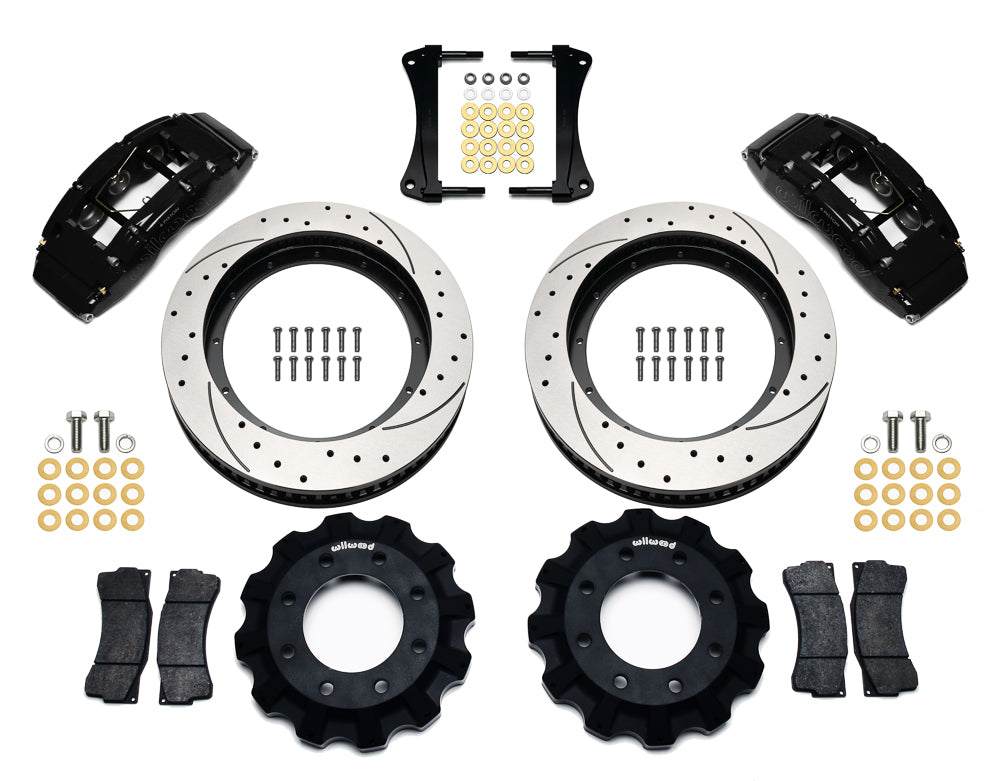

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 20-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 6-piston TC6; Black Powder Coat; radial mounting

Fitment & Compatibility

For the qualified six-lug Chevrolet, GMC and Cadillac truck/SUV applications below. Coverage includes Silverado/Sierra 1500 through 2018 plus the specified 2019 LD/Limited carryover models, and listed Tahoe, Suburban, Yukon, Yukon XL and Escalade variants through 2020. Avalanche and Escalade EXT have their own earlier end years; trim, police-package and generation restrictions still apply.

DS506 covers factory aluminum and iron spindles. Later casting parting lines may need light machining, and the lower dust shield requires trimming. Flexlines are separate: the instructions identify 220-8998 for 1999–2006 and 220-10980 for the later 16-inch arrangement; confirm the exact year and chassis connection before purchase.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Kit will work with both Iron / Steel and Aluminum spindles.
2. 16" Front kits use Flexline kit 220-8998. 14.25" Front kits use Flexline kit 220-9885.
3. Line kit included (manufacturer): None
4. Front line-kit references for this 16-inch package: 220-8998 for the earlier connection and 220-10980 for the later connection. Verify the exact vehicle year and fittings.
5. 2007-Up, 16" Front kits use Flexline kit 220-10980. 14.25" Front kits use Flexline kit 220-10979
6. For OE rears with dual piston calipers.
