Wilwood Front Slotted 14-Inch Rotors and Red Superlite 6R Calipers — XLR (2004–2009), Selected Ridetech-Hub GM (1962–1982) and Corvette C5/C6 (1997–2013)

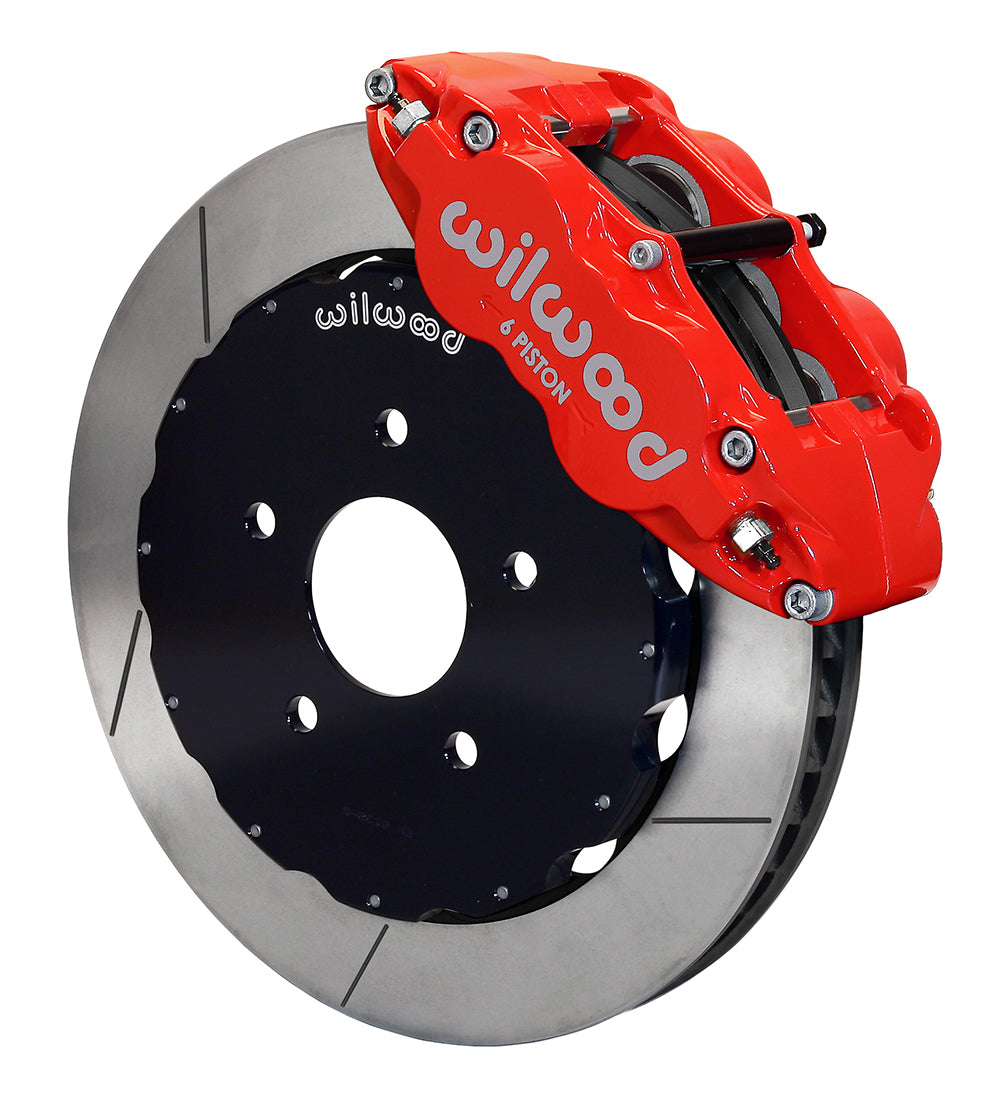

GT-slotted 14-inch rotors are paired with red six-piston calipers in this front brake conversion. The larger rotor diameter changes the wheel packaging requirement relative to smaller kits, so verify the complete DS503 profile and OE-wheel spacing note. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

• Manufacturer part number: 140-8922-R
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

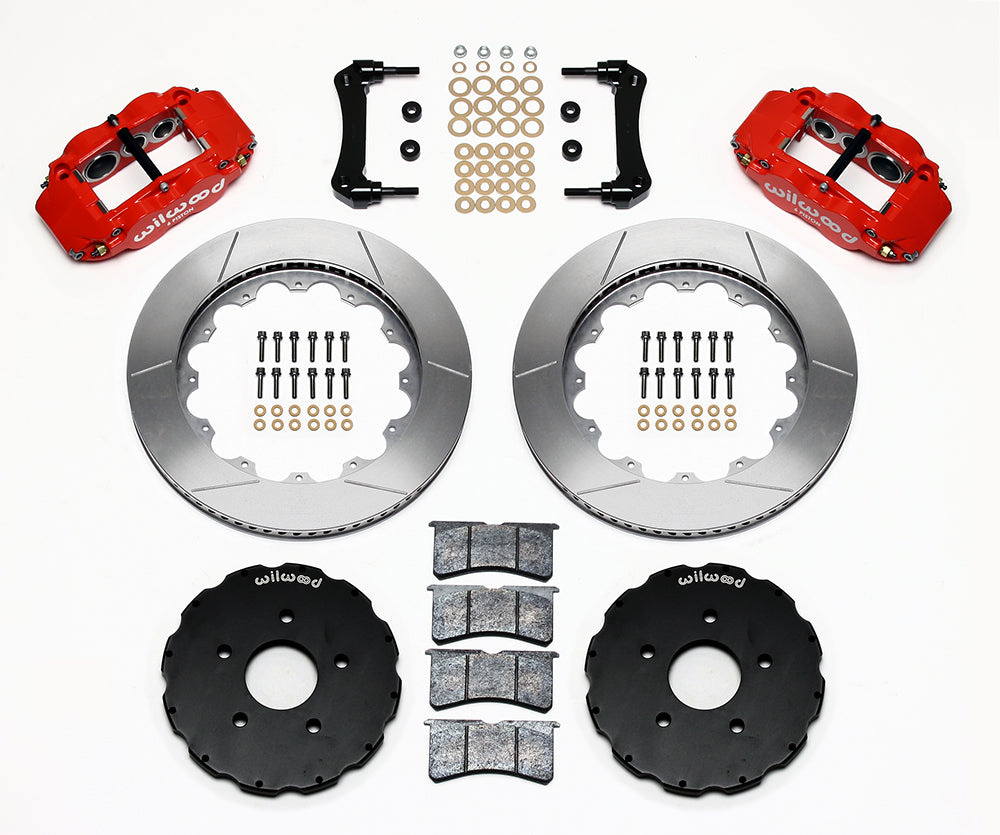

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 6-piston Forged Narrow Superlite 6R; Red Powder Coat; radial mounting
• Brake rotors: 14.00 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-20; pistons: stainless steel

Fitment & Compatibility

For 1997–2013 Chevrolet Corvette C5/C6 and 2004–2009 Cadillac XLR applications as listed. The classic 1962–1982 GM entries require the specified Ridetech hub spindles; they are not approvals for those vehicles’ original spindles. Match the exact Corvette/XLR brake package or the installed aftermarket spindle before purchase.

This 14-inch package requires the larger wheel envelope shown in DS503. The application notes specify 3/16-inch spacers with OE front wheels; check wheel seating, stud engagement and the exact wheel template. Order the hydraulic hose arrangement for the actual chassis separately.

Review the complete fitment table below before purchase, retaining the restrictions attached to the chosen vehicle.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. 14" Rotor
2. Kit will require aftermarket wheel spacers of 3/16" (not included in kit) for front kit installation with OE wheels.
3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
4. This front brake kit contains no parking-brake mechanism. Parking-brake cable selection belongs to the separate rear brake installation.
5. Line kit included (manufacturer): None
6. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
