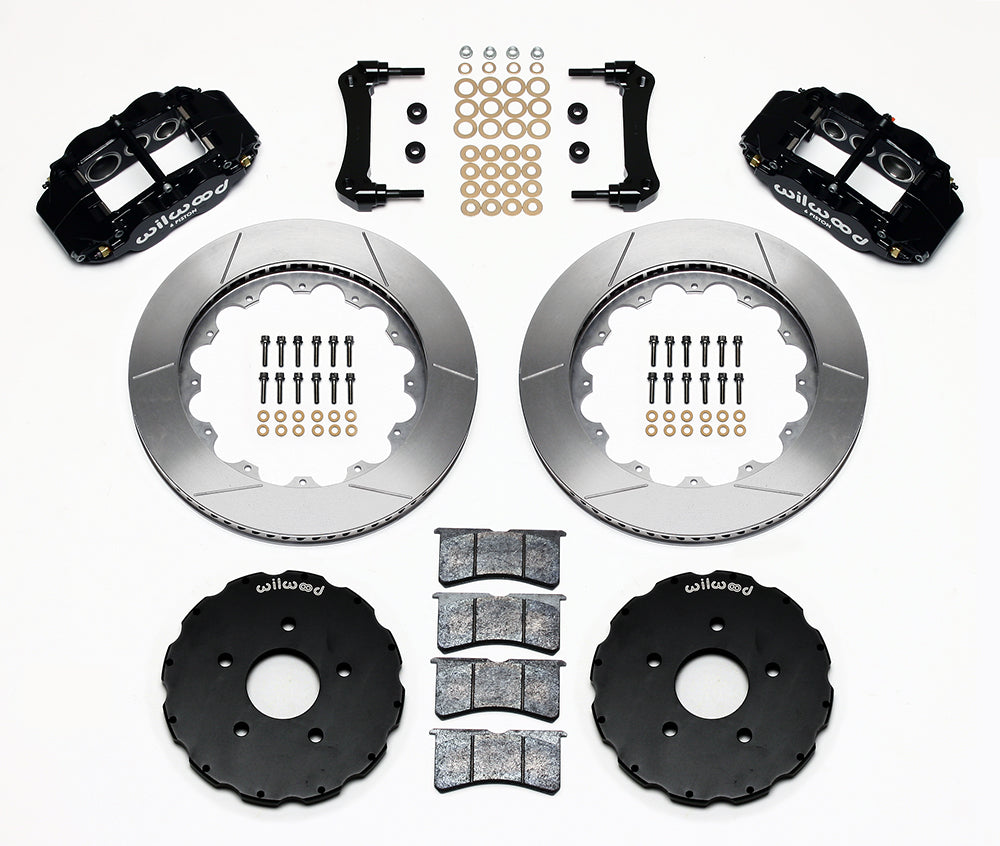

Wilwood front Superlite 6R kit for Corvette C5/C6, XLR & Ridetech-Hub GM applications, black calipers and 14-inch gt slotted rotors laid out

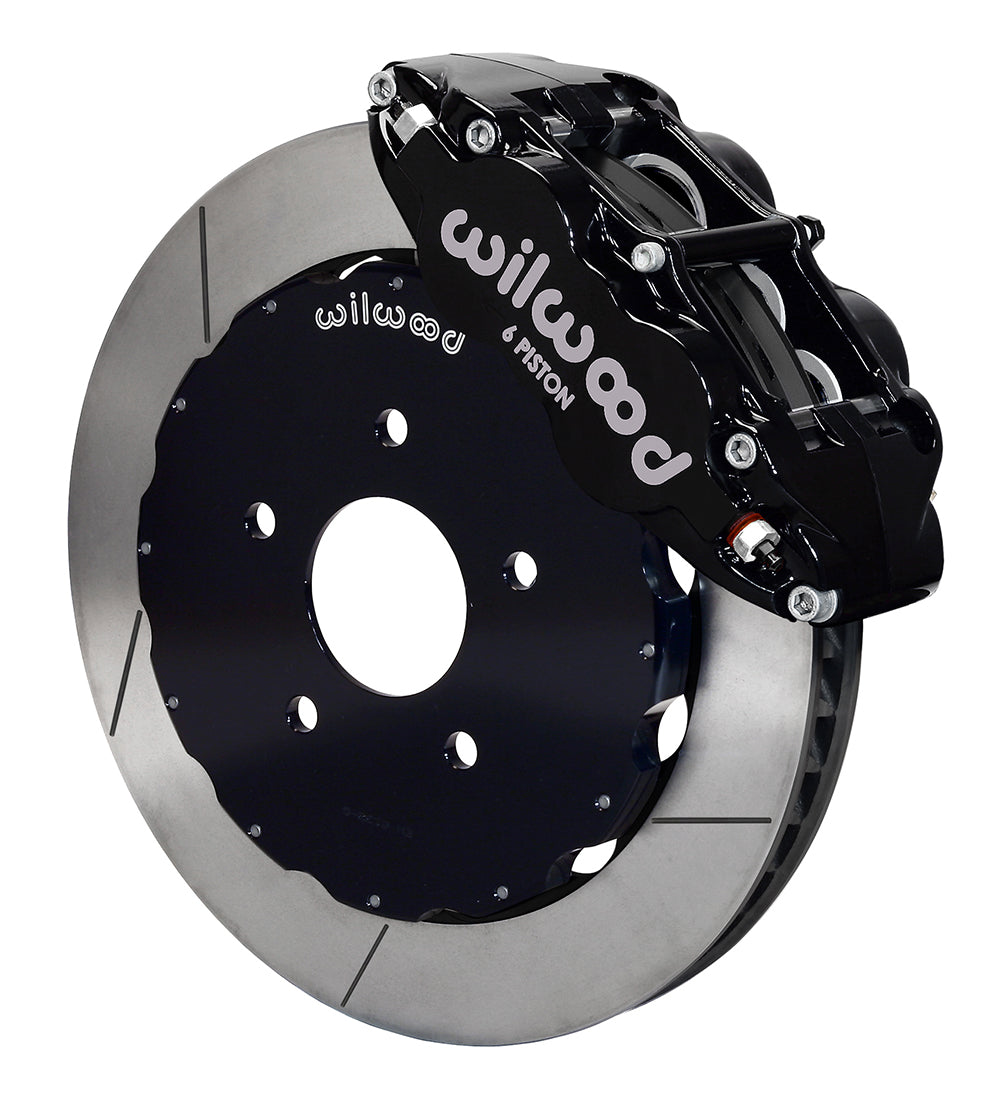

Wilwood black Superlite 6R caliper and 14-inch gt slotted rotor for Corvette C5/C6, XLR & Ridetech-Hub GM applications, assembled front view
Wilwood front Superlite 6R kit for Corvette C5/C6, XLR & Ridetech-Hub GM applications, black calipers and 14-inch gt slotted rotors laid out
Wilwood black Superlite 6R caliper and 14-inch gt slotted rotor for Corvette C5/C6, XLR & Ridetech-Hub GM applications, assembled front view

Wilwood Front 14-Inch GT Rotor and Black Superlite Kit for XLR (2004–2009), Corvette C5/C6 (1997–2013) and Selected Ridetech-Hub GM Cars (1962–1982)

SKU: 140-8922

$2,411.90 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The 14-inch GT rotor pair defines the wheel envelope for this black Superlite front conversion. Its BP-20-equipped six-piston calipers serve the qualified GM hub applications, with the OE-wheel spacer requirement checked before ordering. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.

Technical Details

  • Manufacturer part number: 140-8922
  • Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting
  • Brake rotors: 14.00 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
  • Included pad compound: BP-20; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 18-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit

Fitment & Compatibility

For 1997–2013 Chevrolet Corvette C5/C6 and 2004–2009 Cadillac XLR applications as listed. The classic 1962–1982 GM entries require the specified Ridetech hub spindles; they are not approvals for those vehicles’ original spindles. Match the exact Corvette/XLR brake package or the installed aftermarket spindle before purchase.

This 14-inch package requires the larger wheel envelope shown in DS503. The application notes specify 3/16-inch spacers with OE front wheels; check wheel seating, stud engagement and the exact wheel template. Order the hydraulic hose arrangement for the actual chassis separately.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1962-1967 Chevrolet Chevy II w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1963-1964 Chevrolet Corvette w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Buick Skylark w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1969 Buick Special w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Buick Sportwagon w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Chevrolet El Camino w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1971 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Oldsmobile Cutlass w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Oldsmobile F85 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Oldsmobile Vista Cruiser w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Pontiac GTO w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1972 Pontiac LeMans w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1964-1970 Pontiac Tempest w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1965-1967 Buick Gran Sport w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1965-1982 Chevrolet Corvette w/ Ridetech Hub Spindle Drop Disc Front Kit 1, 2, 3, 4, 5, 6
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1967-1972 Oldsmobile Cutlass Supreme w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1967-1969 Pontiac Firebird w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1968-1969 Buick GS 350 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1968-1969 Buick GS 400 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1969-1974 Chevrolet Nova w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1970-1972 Buick GS w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1970-1972 Buick GS 455 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1971-1972 GMC Sprint w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1971-1974 Pontiac Ventura w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1973-1974 Oldsmobile Omega w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6
1997-2004 Chevrolet Corvette C-5 & Z06 Disc Disc Front Kit 1, 2, 5, 6
2004-2009 Cadillac XLR All Disc Disc Front Kit 1, 2, 5, 6
2005-2008 Chevrolet Corvette Base C-6 - Base Disc Disc Front Kit 1, 2, 5, 6
2006-2008 Chevrolet Corvette Z06 C-6 - Z06 Disc Disc Front Kit 1, 2, 5, 6
2009-2013 Chevrolet Corvette Base Base Disc Disc Front Kit 1, 2, 5, 6
2009-2013 Chevrolet Corvette Z06 Z06 Disc Disc Front Kit 1, 2, 5, 6
2009-2013 Chevrolet Corvette ZR1 ZR1 Disc Disc Front Kit 1, 2, 5, 6
2010-2013 Chevrolet Corvette Grand Sport Grand Sport Disc Disc Front Kit 1, 2, 5, 6
2011 Chevrolet Corvette Z06 Carbon Z06 Carbon Disc Disc Front Kit 1, 2, 5, 6
2013 Chevrolet Corvette 427 427 Disc Disc Front Kit 1, 2, 5, 6

Application Notes

  1. 14" Rotor
  2. Kit will require aftermarket wheel spacers of 3/16" (not included in kit) for front kit installation with OE wheels.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. This front brake kit contains no parking-brake mechanism. Parking-brake cable selection belongs to the separate rear brake installation.
  5. Line kit included (manufacturer): None
  6. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
