Product details

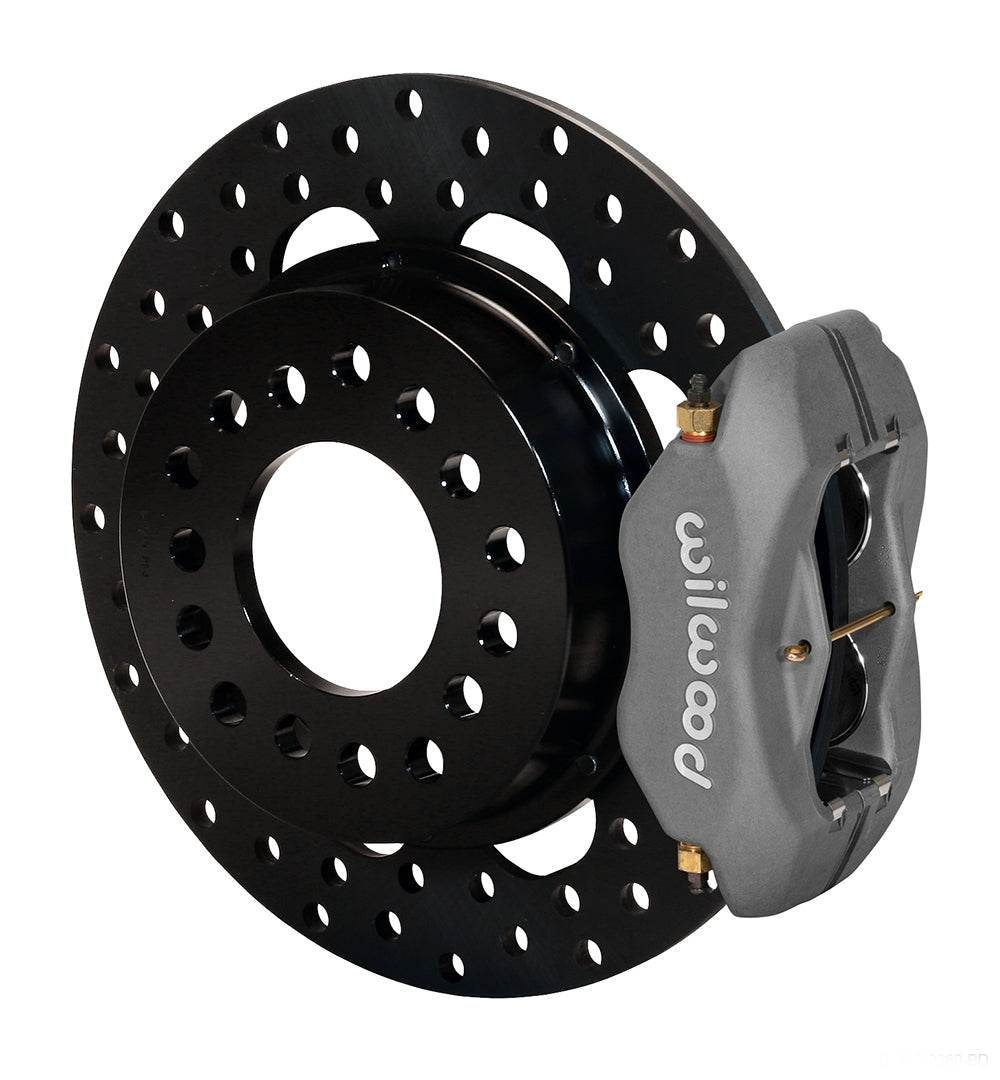

This rear drag-brake package uses drilled solid-steel rotors and Type III anodized Dynalite calipers for the specified Mopar/Dana axle arrangement. The nonadjustable snap-ring bearing and 2.50-inch offset are critical; a different bearing-retainer style is not interchangeable. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.
Technical Details
- Manufacturer part number: 140-8853-D
- Service calipers: 4-piston Forged Dynalite Internal; Type III Anodize; lug mounting
- Brake rotors: 11.44 x 0.35 inches; Steel; Drilled; solid
- Included pad compound: BP-10; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Black Oxide; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
- Required axle offset: 2.50 inches; measure from the axle flange to the housing flange as shown in the instructions
- Parking brake: none included; solid-rotor service-brake package
- Hydraulic hoses: not included; match the separate lines and fittings to the application

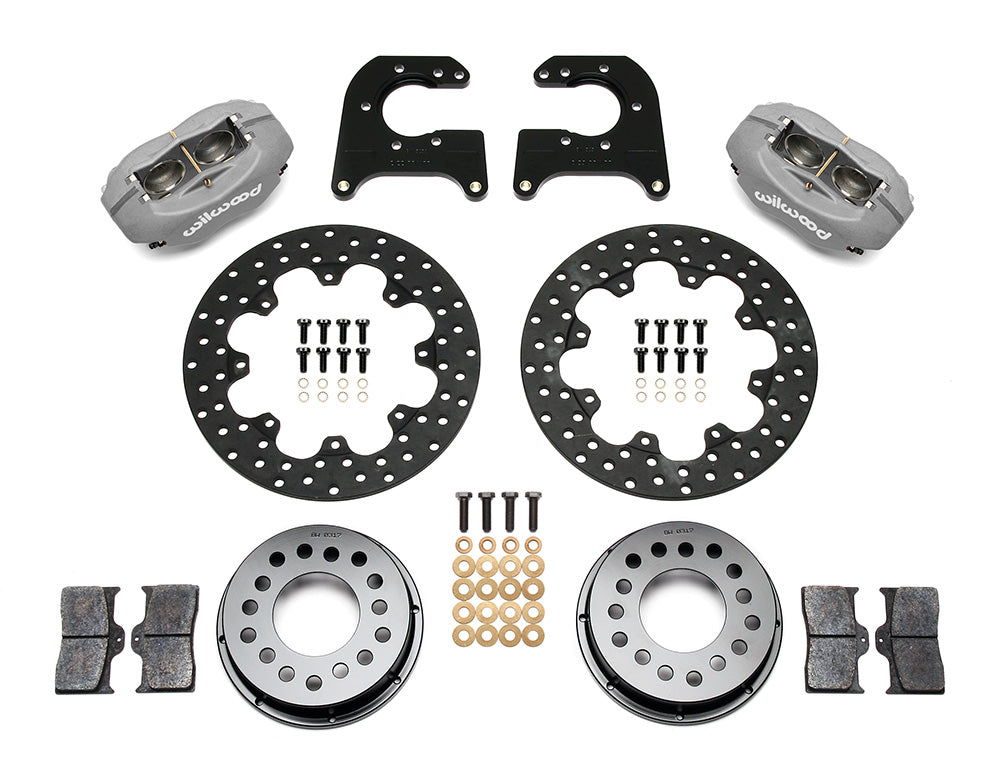

- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
Fitment & Compatibility
For Mopar 8-3/4 and Dana 60 rear assemblies with a 2.50-inch axle offset and the specified nonadjustable snap-ring bearing arrangement. DS500 identifies Mopar MO400, Strange A1022 and Moser 9400M-type bearings. The RP400 pressed-on five-hole retainer style is not compatible.
The caliper bracket replaces the separate bearing retainer in the documented assembly. Check the housing pattern, 3.06-inch hat center and axle-flange limit of 6.25 inches with the specified chamfer. This is a solid-rotor service-brake package without a parking brake; hydraulic lines are separate.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
- Axle-offset measurement worksheet
