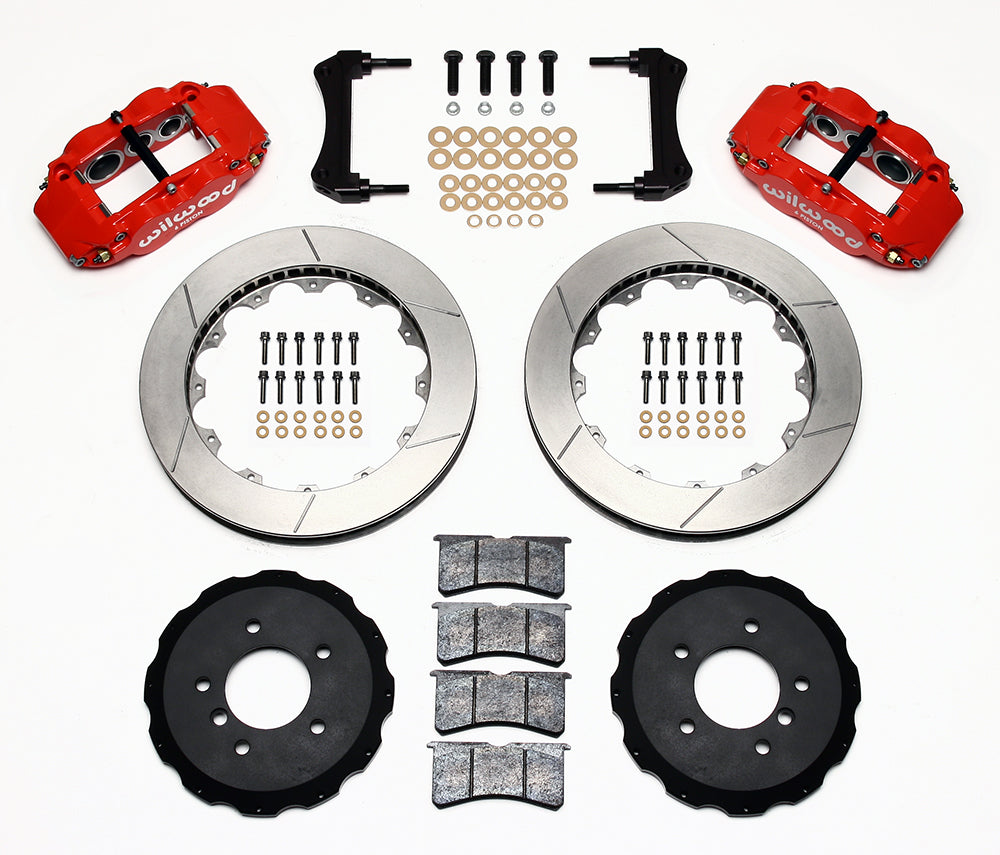

Wilwood front Superlite 6R kit for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), red calipers and 13.06-inch gt slotted rotors laid out

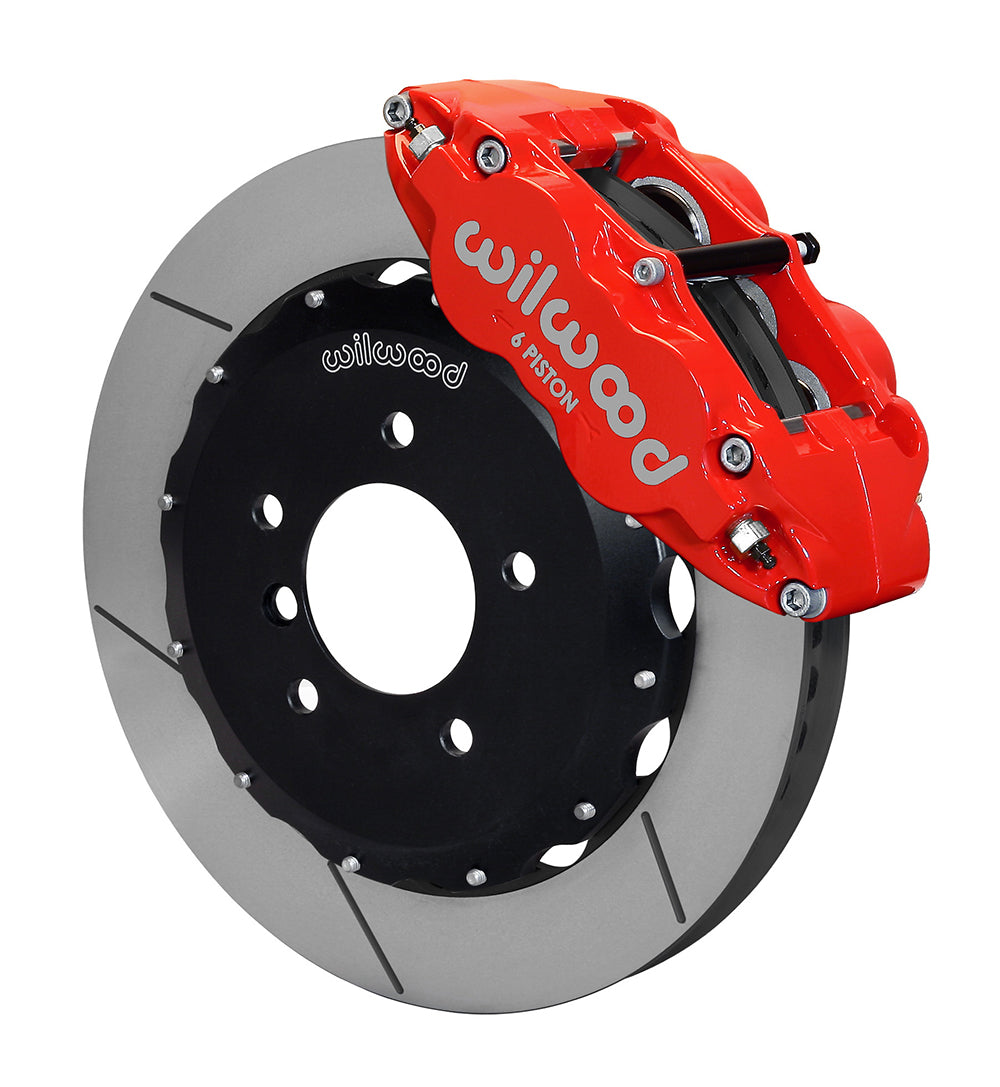

Wilwood red Superlite 6R caliper and 13.06-inch gt slotted rotor for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), assembled front view
Wilwood front Superlite 6R kit for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), red calipers and 13.06-inch gt slotted rotors laid out
Wilwood red Superlite 6R caliper and 13.06-inch gt slotted rotor for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), assembled front view

Wilwood Front Superlite 6R Brake Kit, 13.06-Inch GT-Slotted Rotors and Red Calipers — BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001)

SKU: 140-8797-R

$2,231.16 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This GT-slotted front package uses red Superlite calipers for the qualified BMW M3 E36 and Z3 M Roadster. Spec-37 iron rotors measure 13.06 by 1.25 inches, with the exact wheel and spindle checks defined in DS495. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.

Technical Details

  • Manufacturer part number: 140-8797-R
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit
  • Service calipers: 6-piston Forged Narrow Superlite 6R; Red Powder Coat; radial mounting
  • Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
  • Included pad compound: BP-10; pistons: stainless steel

Fitment & Compatibility

The confirmed applications are 1995–1999 BMW M3 E36 and 1998–2001 Z3 M Roadster with the 3.2-liter engine. This is not a general Z3 kit. Retain the original hubs and verify the factory spindle and brake configuration against the exact model entry.

Use DS495 to check bracket seating, caliper alignment and wheel clearance. Separate hose kit 220-8799 supplies the Wilwood-compatible hydraulic connections. The hat-hole clearance specification does not change the BMW hub bolt pattern.

Review the complete fitment table below before purchase, retaining the restrictions attached to the chosen vehicle.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1995-1999 BMW M3 All Disc Disc Front Kit 1, 2
1998-2001 BMW Z3 M Roadster M Roadster 3.2 L Liter Disc Disc Front Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Front line-kit reference: 220-8799
