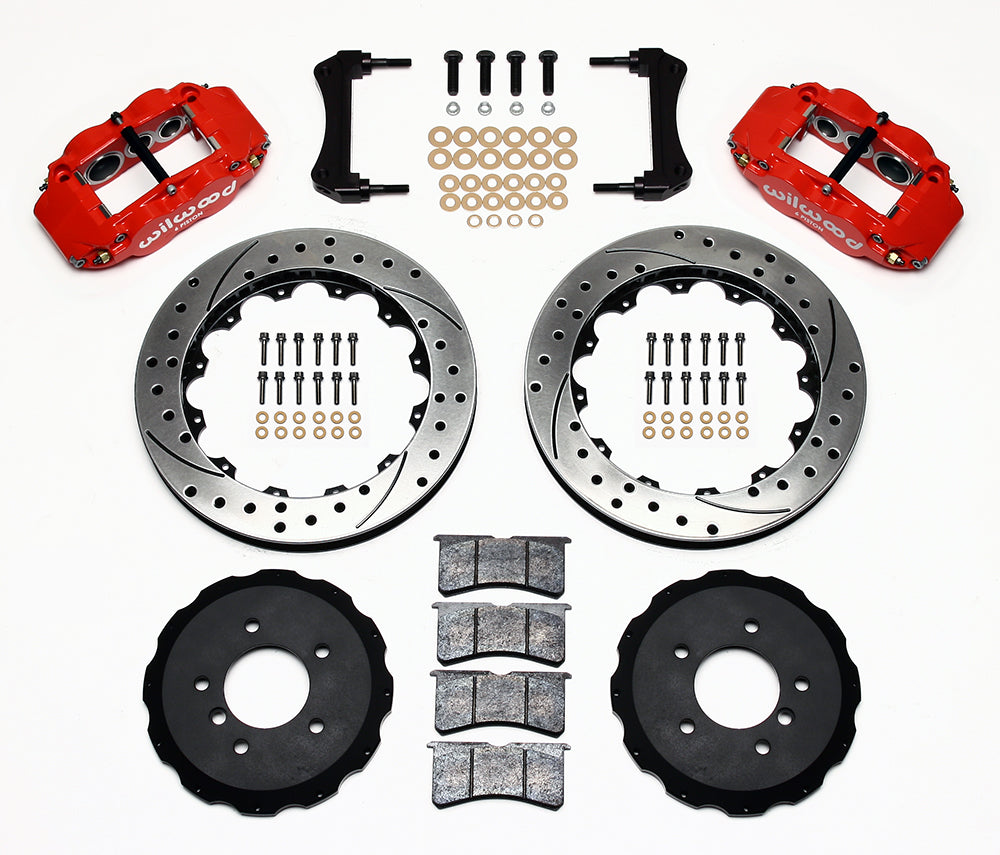

Wilwood front Superlite 6R kit for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), red calipers and 13.06-inch srp drilled and slotted rotors laid out

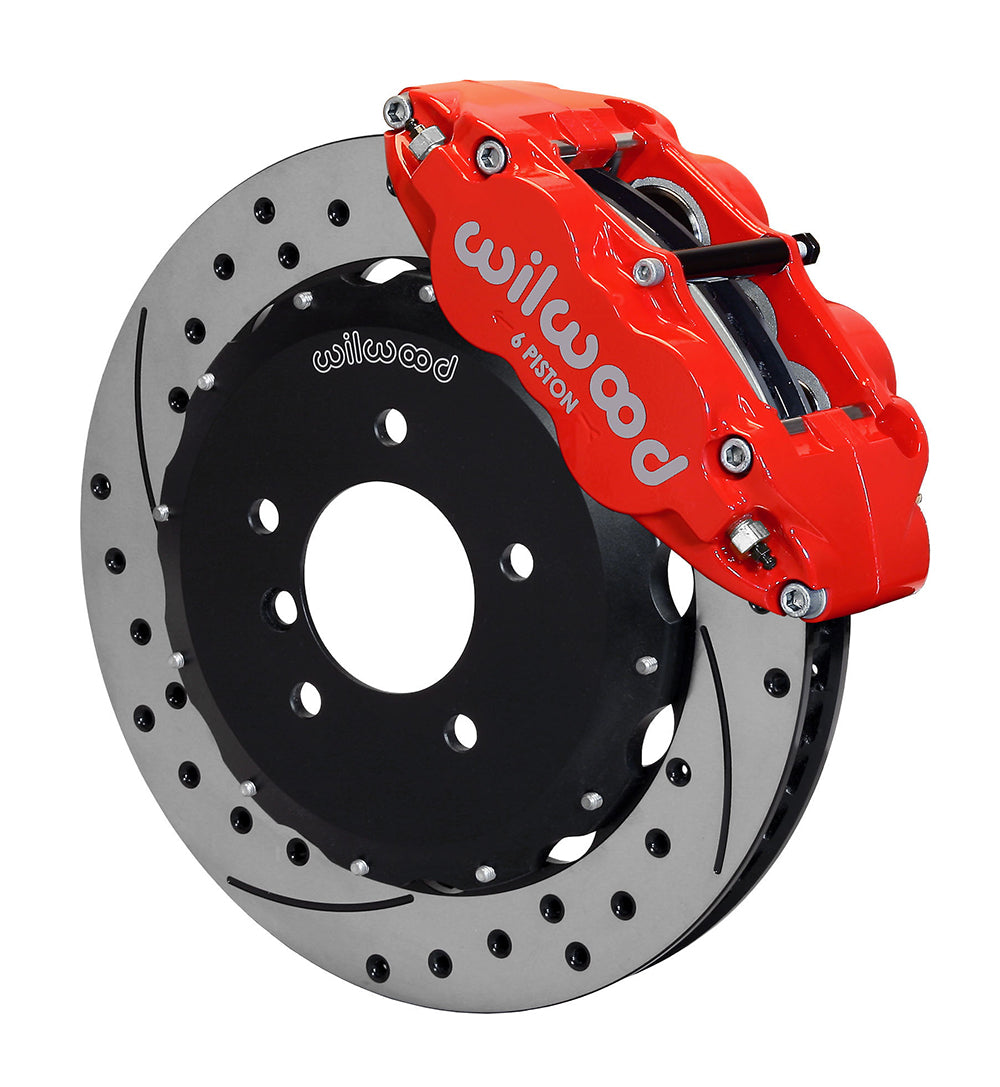

Wilwood red Superlite 6R caliper and 13.06-inch srp drilled and slotted rotor for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), assembled front view
Wilwood front Superlite 6R kit for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), red calipers and 13.06-inch srp drilled and slotted rotors laid out
Wilwood red Superlite 6R caliper and 13.06-inch srp drilled and slotted rotor for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), assembled front view

Wilwood Front Drilled/Slotted Brake Kit — BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), Red Superlite 6R, 13.06-Inch Rotors

SKU: 140-8797-DR

$2,231.16 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red six-piston calipers accompany the SRP rotor pair in this BMW M front package. The kit provides radial mounting brackets, hats and pads for the documented 13.06-inch installation on retained factory hubs. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

  • Manufacturer part number: 140-8797-DR
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit
  • Service calipers: 6-piston Forged Narrow Superlite 6R; Red Powder Coat; radial mounting
  • Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

The confirmed applications are 1995–1999 BMW M3 E36 and 1998–2001 Z3 M Roadster with the 3.2-liter engine. This is not a general Z3 kit. Retain the original hubs and verify the factory spindle and brake configuration against the exact model entry.

Use DS495 to check bracket seating, caliper alignment and wheel clearance. Separate hose kit 220-8799 supplies the Wilwood-compatible hydraulic connections. The hat-hole clearance specification does not change the BMW hub bolt pattern.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1995-1999 BMW M3 All Disc Disc Front Kit 1, 2
1998-2001 BMW Z3 M Roadster M Roadster 3.2 L Liter Disc Disc Front Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Front line-kit reference: 220-8799
