Wilwood Front Black Superlite 6R Brake Kit for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001), 13.06-Inch Drilled/Slotted Rotors

The SRP version of this BMW front conversion supplies drilled/slotted 13.06-inch rotors and black Superlite 6R calipers. Compatibility is specific to the listed M3 and Z3 M Roadster configurations; the general Z3 name is not enough to select the kit. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.

Technical Details

• Manufacturer part number: 140-8797-D
• Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

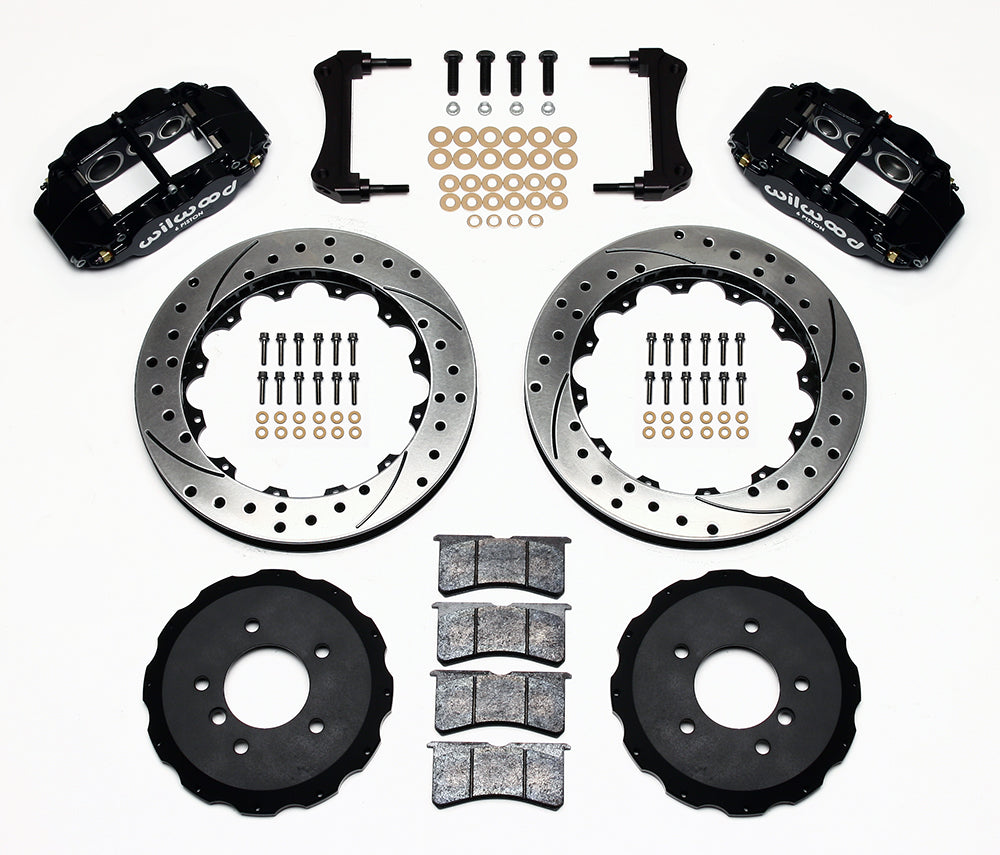

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

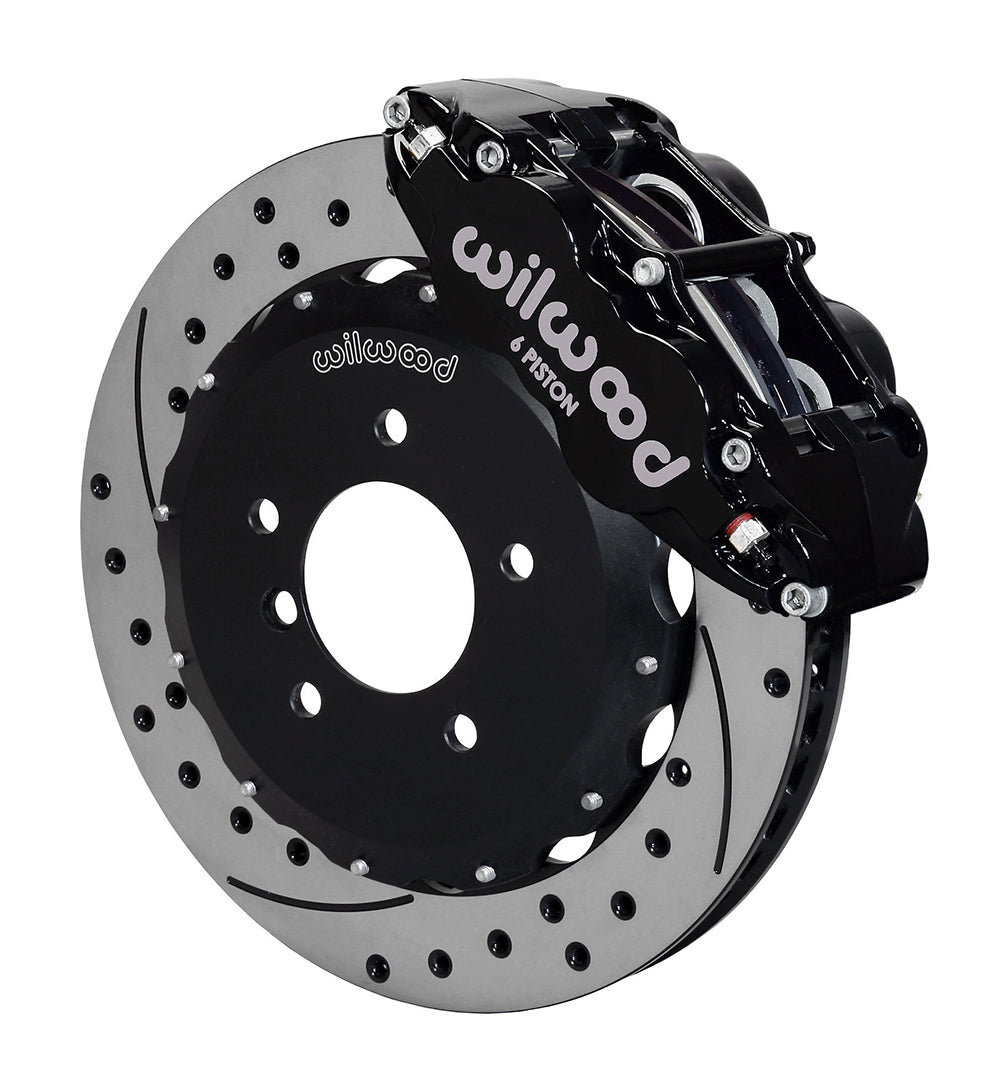

• Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting

Fitment & Compatibility

The confirmed applications are 1995–1999 BMW M3 E36 and 1998–2001 Z3 M Roadster with the 3.2-liter engine. This is not a general Z3 kit. Retain the original hubs and verify the factory spindle and brake configuration against the exact model entry.

Use DS495 to check bracket seating, caliper alignment and wheel clearance. Separate hose kit 220-8799 supplies the Wilwood-compatible hydraulic connections. The hat-hole clearance specification does not change the BMW hub bolt pattern.

Check the full application table below, including its model-year splits and brake-configuration requirements.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8799
