Wilwood Front 13.06-Inch GT-Slotted Brake Kit — Black Superlite 6R for BMW M3 E36 (1995–1999) & Z3 M Roadster (1998–2001)

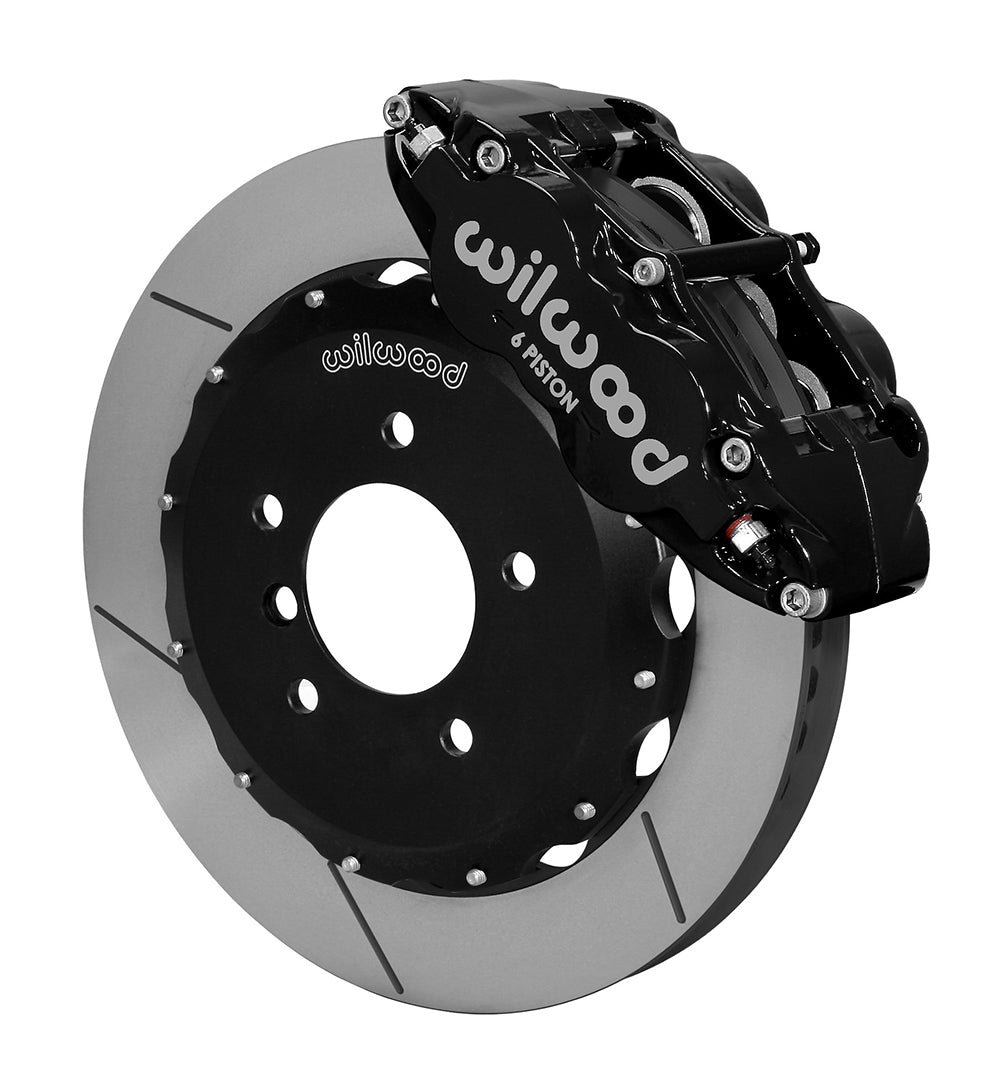

This black-caliper front kit is specified for the E36 M3 and qualifying Z3 M Roadster applications. Its six-piston Superlite calipers work with 13.06-inch GT rotors on separate hats, leaving the original BMW hubs in place. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

• Manufacturer part number: 140-8797
• Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting
• Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.520 in; 13.21 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: not included; match the separate lines and fittings to the application

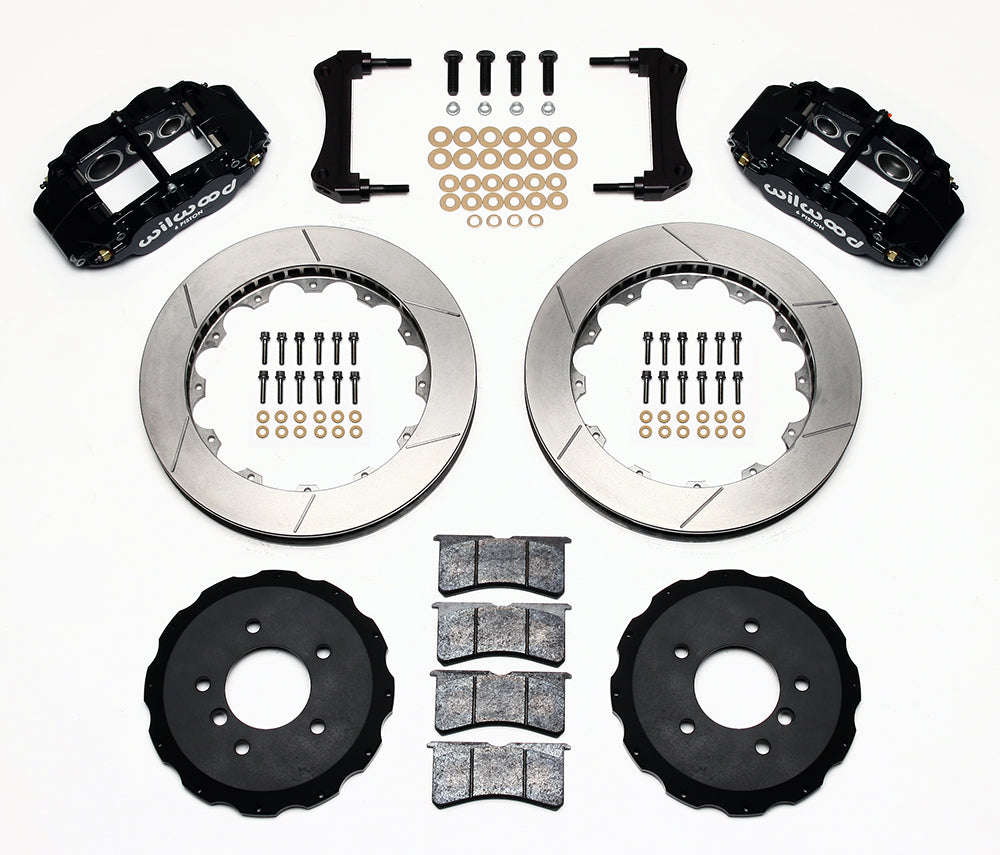

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit

Fitment & Compatibility

The confirmed applications are 1995–1999 BMW M3 E36 and 1998–2001 Z3 M Roadster with the 3.2-liter engine. This is not a general Z3 kit. Retain the original hubs and verify the factory spindle and brake configuration against the exact model entry.

Use DS495 to check bracket seating, caliper alignment and wheel clearance. Separate hose kit 220-8799 supplies the Wilwood-compatible hydraulic connections. The hat-hole clearance specification does not change the BMW hub bolt pattern.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8799
