Product details

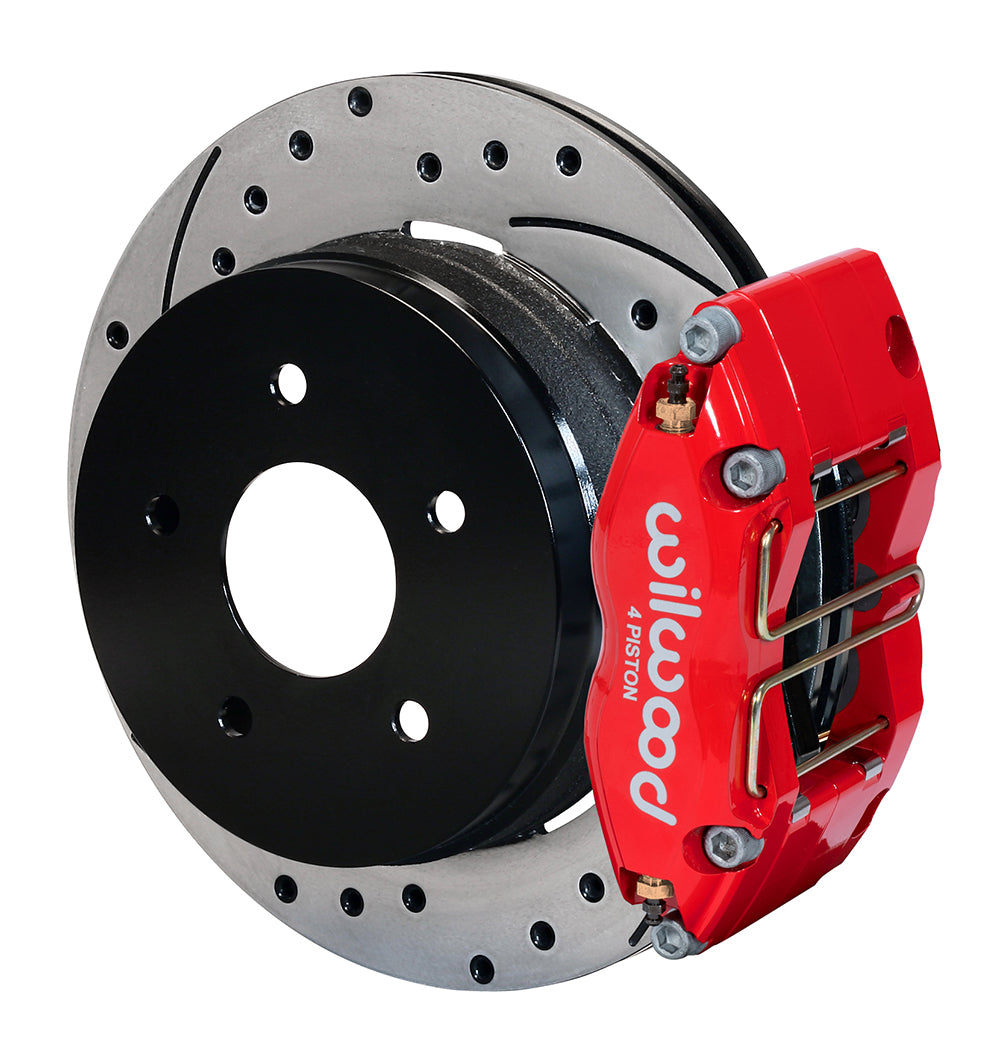

The red-caliper GTO rear package combines 12.19-inch SRP rotors with radial-mount Dynapro Dust Seal calipers. It keeps the OE parking brake in service, so the existing shoes, controls and related hardware must be checked during installation. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.
Technical Details
- Manufacturer part number: 140-8754-DR
- Included pad compound: BP-20; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.52 in; 13.21 mm; this is not a wheel-stud thread designation
- Parking brake: retain the original internal parking-brake mechanism; no replacement cable kit is supplied
- Hydraulic hoses: not included; match the separate lines and fittings to the application

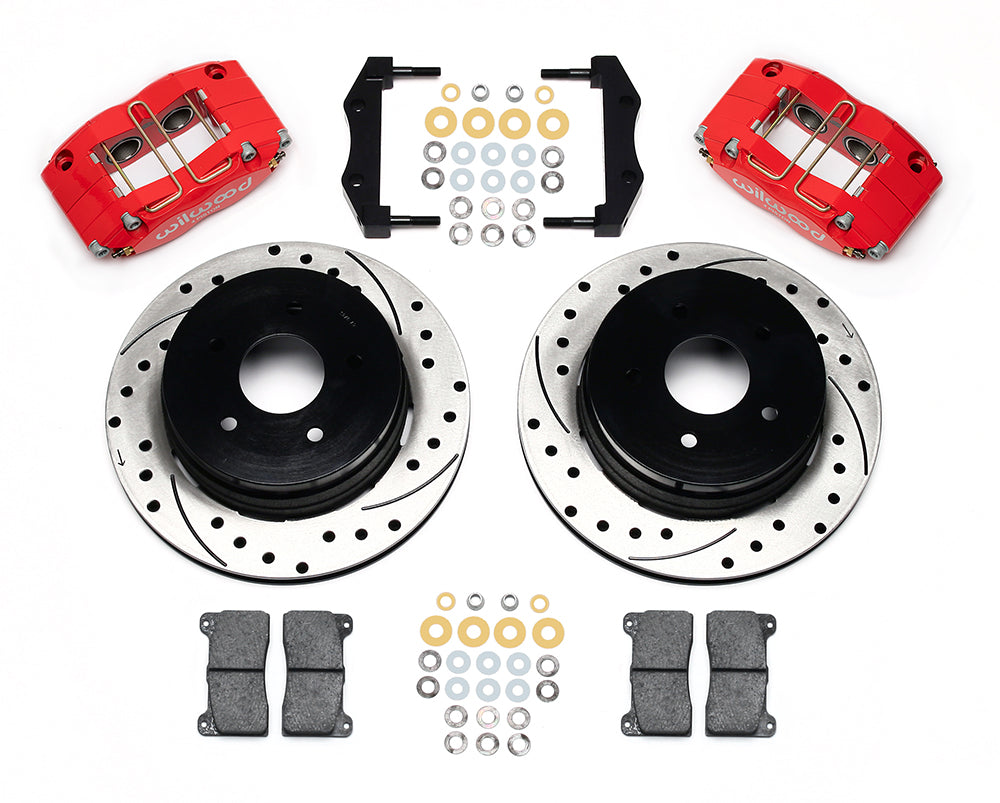

- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
- Service calipers: 4-piston Dynapro Dust Seal Radial Mount; Red Powder Coat; radial mounting
- Brake rotors: 12.19 x 0.81 inches; Iron; SRP Drilled & Slotted; vented
Fitment & Compatibility
Fits the listed 2004–2006 Pontiac GTO rear applications while retaining the original internal parking-brake mechanism. The supplied service rotors incorporate the parking-drum interface; existing hubs and parking-brake components must be serviceable.
The stock backing plate/caliper bracket and dust shield require the modifications in DS494. Brake hoses are not included. Wilwood currently lists rear flexlines 220-8756 for 2005–2006 GTO; verify the 2004 hose arrangement before ordering, because the older instruction-sheet hose reference differs.
The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 2004-2006 | Pontiac | GTO | All | Disc | Disc | Rear Kit | 1, 2, 3 |
| 2004-2006 | Pontiac | GTO | All | Disc | Disc | Rear Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
- Rear line-kit reference: 220-8756
