Wilwood Front Red Superlite GTO Conversion (2004–2006), Drilled/Slotted 13.06-Inch Rotors & Flexlines

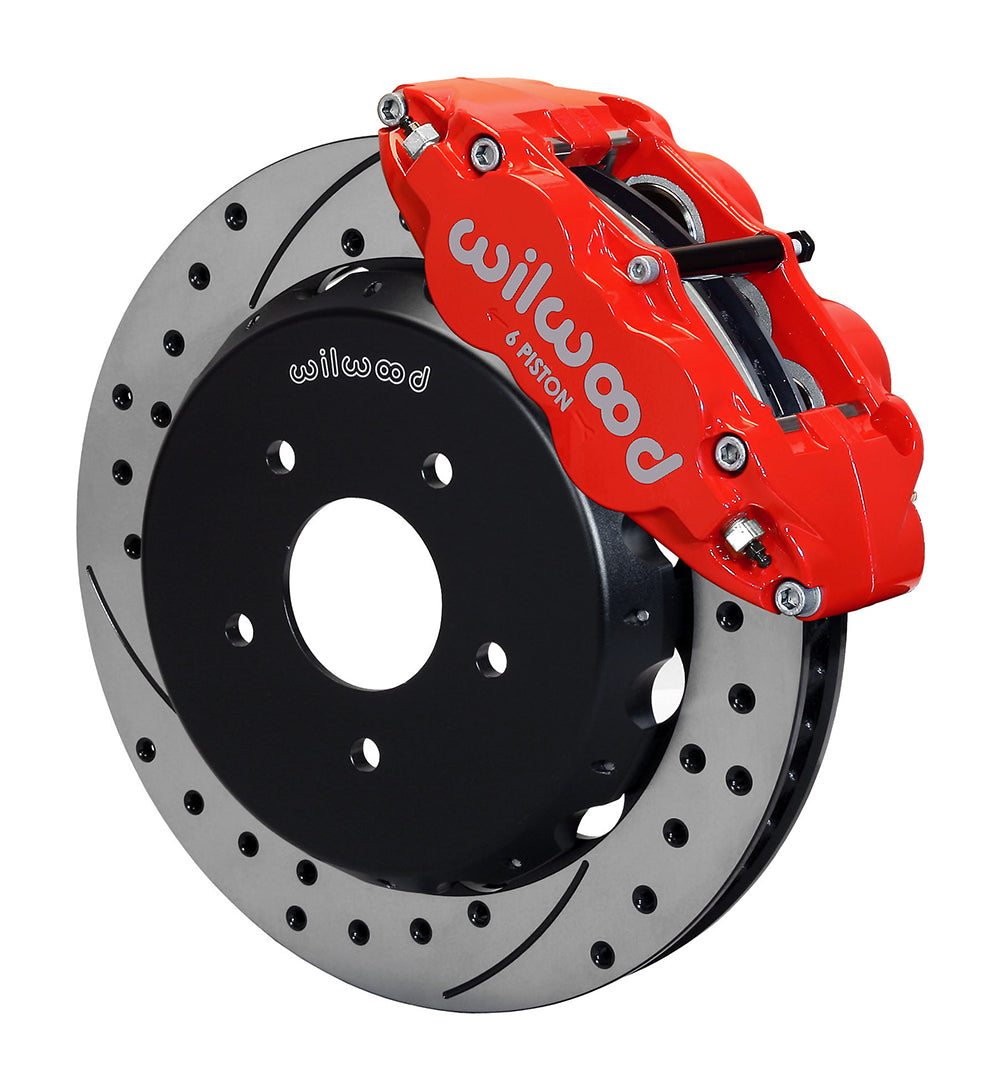

This GTO front conversion brings together red Superlite 6R calipers, 13.06-inch SRP rotors and the matching hydraulic hose package. The rotor hats retain the original hub interface; the installation instructions distinguish the 2004 mounting details from later cars. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

• Manufacturer part number: 140-8753-DR
• Included pad compound: BP-10; pistons: stainless steel
• Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
• Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.72 in; 5 x 119.89 mm; the existing hub/axle pattern is retained
• Hat/rotor stud-hole clearance: 0.500 in; 12.70 mm; this is not a wheel-stud thread designation
• Hydraulic hoses: included; DOT-approved 20-inch flexline kit 220-14177

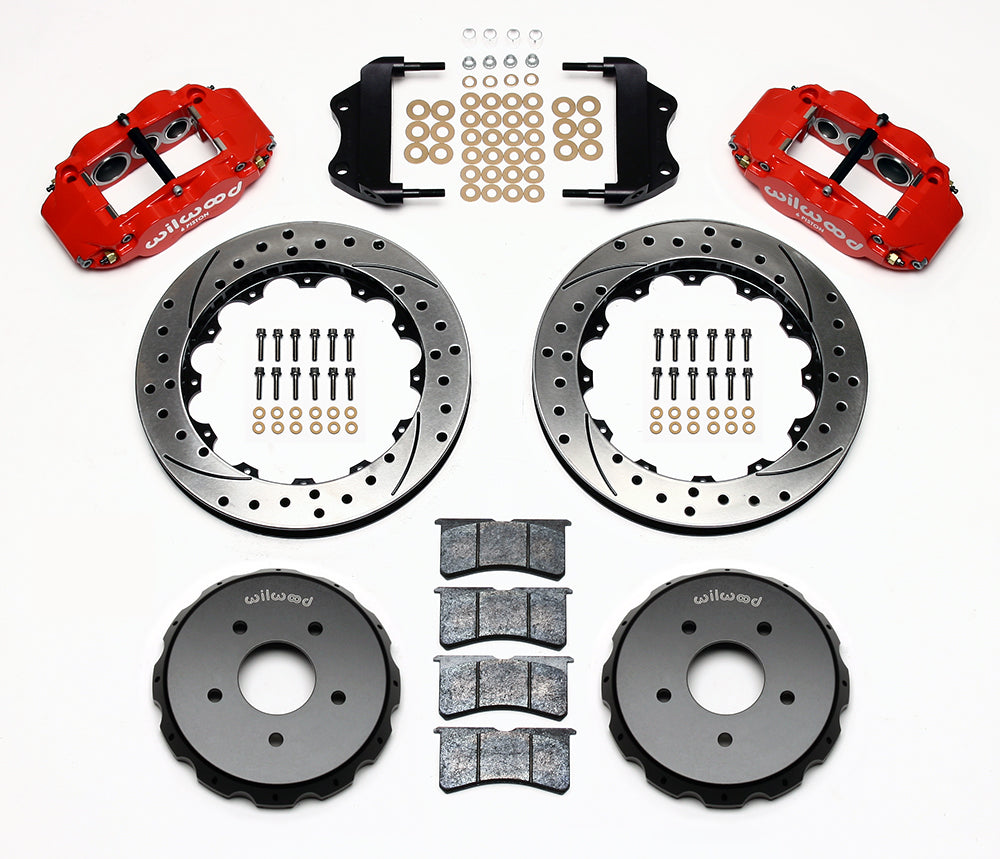

• Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
• Not included: master cylinder and brake booster
• Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
• Quantity: sold as one axle kit
• Service calipers: 6-piston Forged Narrow Superlite 6R; Red Powder Coat; radial mounting
• Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

For 2004–2006 Pontiac GTO front hubs and factory disc spindles. The original hubs remain in service. The included six-piston calipers and separate rotor hats form a front conversion package, with application-specific hydraulic hoses included.

DS493 distinguishes the 2004 bracket/shim arrangement from later cars. Follow the year-specific mounting sequence and check the 17-inch-wheel template. Included 20-inch DOT flexlines are kit 220-14177; verify routing through steering and suspension travel.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Manufacturer Resources

• Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-14177 (20.00 in)
2. Front line-kit reference: 220-14177
