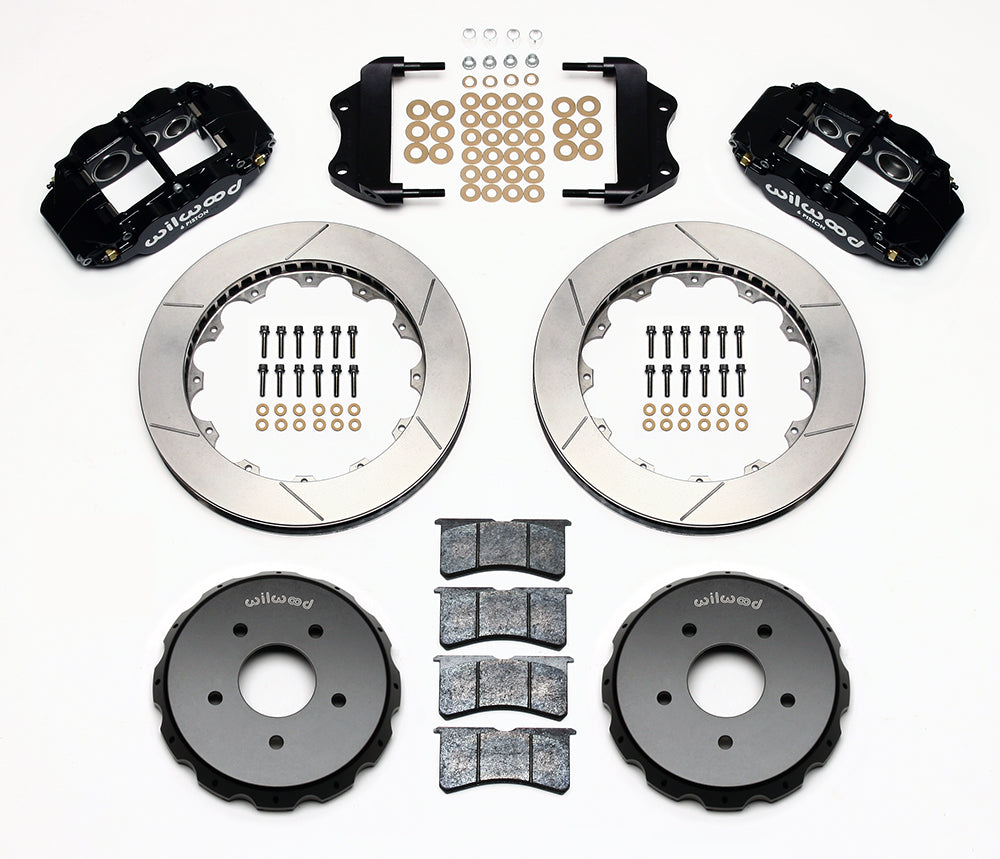

Wilwood front Superlite 6R kit for Pontiac GTO, black calipers and 13.06-inch gt slotted rotors laid out

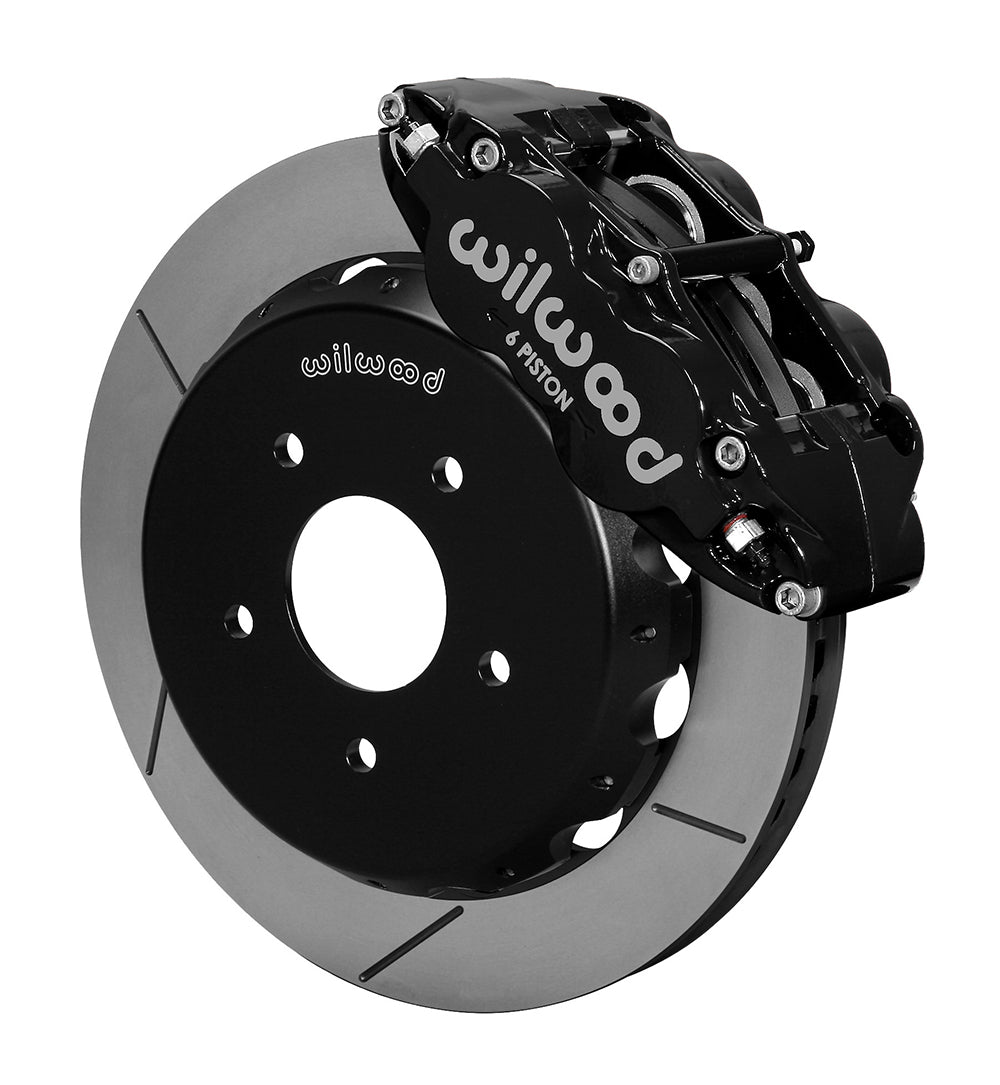

Wilwood black Superlite 6R caliper and 13.06-inch gt slotted rotor for Pontiac GTO, assembled front view
Wilwood front Superlite 6R kit for Pontiac GTO, black calipers and 13.06-inch gt slotted rotors laid out
Wilwood black Superlite 6R caliper and 13.06-inch gt slotted rotor for Pontiac GTO, assembled front view

Wilwood Front GTO Six-Piston Kit with Hoses (2004–2006), Black Calipers & 13.06-Inch GT Rotors

SKU: 140-8753

$2,308.86 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The black Superlite 6R package supplies a complete front axle caliper-and-rotor conversion for the 2004–2006 Pontiac GTO, including the specified flexlines. Its 13.06-inch GT-slotted rotors mount on separate hats over the retained factory hubs. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

  • Manufacturer part number: 140-8753
  • Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat; radial mounting
  • Brake rotors: 13.06 x 1.25 inches; Spec-37 Iron; GT Slotted; vented
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 4.72 in; 5 x 119.89 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.500 in; 12.70 mm; this is not a wheel-stud thread designation
  • Hydraulic hoses: included; DOT-approved 20-inch flexline kit 220-14177
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 17-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit

Fitment & Compatibility

For 2004–2006 Pontiac GTO front hubs and factory disc spindles. The original hubs remain in service. The included six-piston calipers and separate rotor hats form a front conversion package, with application-specific hydraulic hoses included.

DS493 distinguishes the 2004 bracket/shim arrangement from later cars. Follow the year-specific mounting sequence and check the 17-inch-wheel template. Included 20-inch DOT flexlines are kit 220-14177; verify routing through steering and suspension travel.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
2004-2006 Pontiac GTO All Disc Disc Front Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): 220-14177 (20.00 in)
  2. Front line-kit reference: 220-14177
