Product details

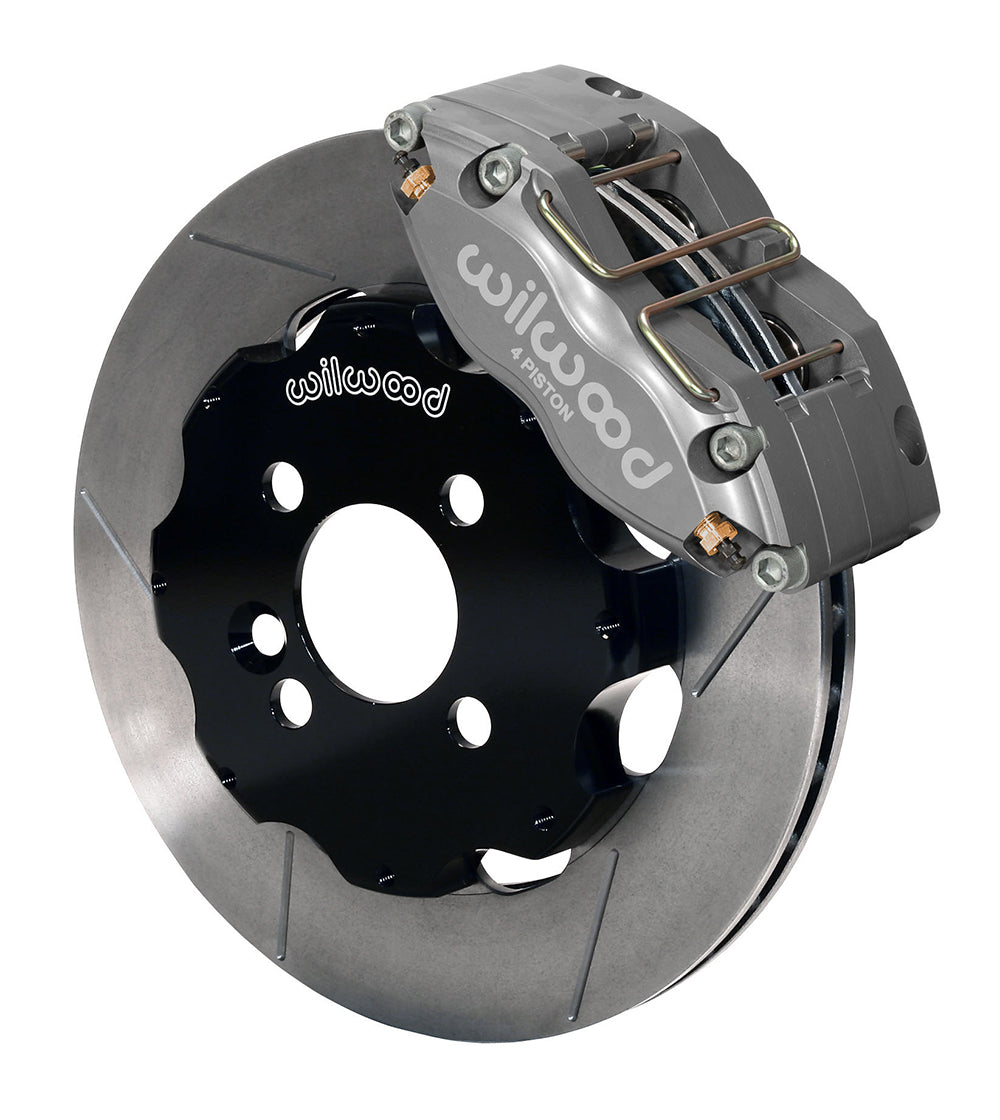

This MINI front race kit combines Type III anodized Dynapro Dust Seal calipers with 11.75-inch GT-slotted rotors. Its four-lug hats and radial brackets are intended for the specific Cooper and Cooper S applications documented below. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.
Technical Details
- Manufacturer part number: 140-8740
- Service calipers: 4-piston Dynapro Dust Seal Radial Mount; Type III Anodize; radial mounting
- Brake rotors: 11.75 x 0.81 inches; Spec-37 Iron; GT Slotted; vented
- Included pad compound: BP-10; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Plain; rotors are not supplied burnished
- Rotor/hat wheel-stud clearance pattern(s): 4 x 3.93 in; 4 x 99.82 mm; the existing hub/axle pattern is retained
- Hat/rotor stud-hole clearance: 0.641 in; 16.28 mm; this is not a wheel-stud thread designation
- Hydraulic hoses: not included; match the separate lines and fittings to the application

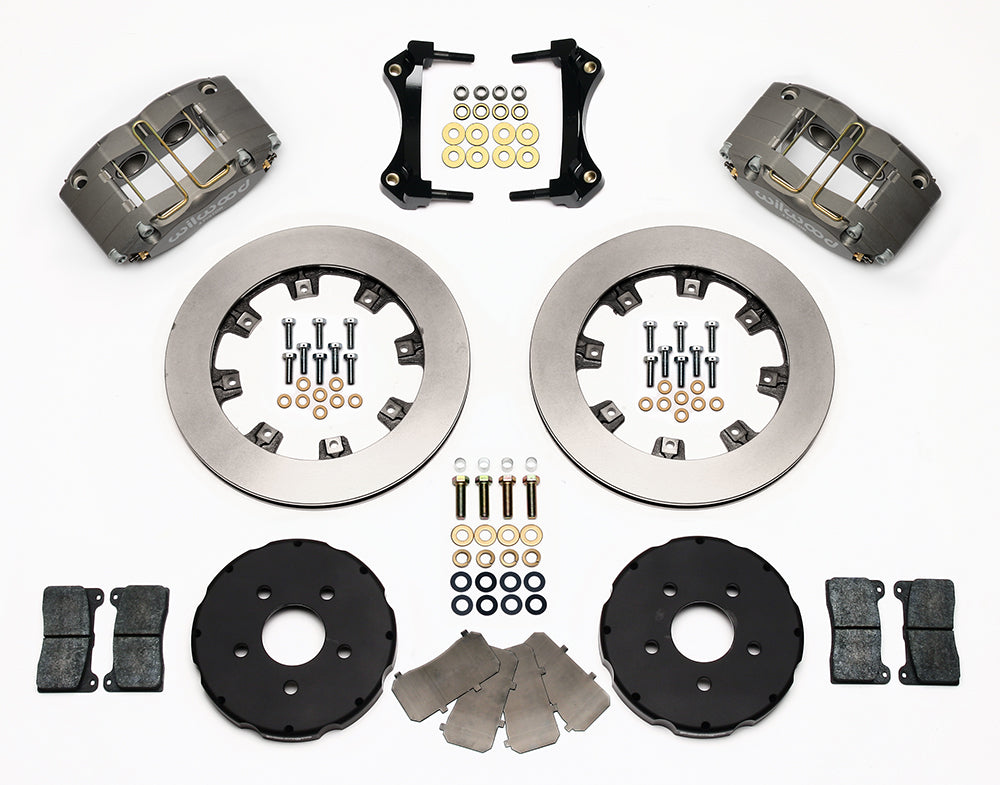

- Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
- Not included: master cylinder and brake booster
- Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
Fitment & Compatibility
This race-front package is listed for the qualified four-lug MINI Cooper and Cooper S coupe, hatchback and convertible applications from 2002–2015. Coverage differs by body and year; it does not establish compatibility with every MINI sold during that span.
Confirm the stock hub pattern and the wheel template in DS492 before ordering. Hydraulic hoses are separate; Wilwood specifies 220-8491 for this application. Check the complete system and intended use when selecting this race-kit configuration.
Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002-2007 | Mini | Cooper | Coupe, including Cooper S | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2007-2010, 2014-2015 | Mini | Cooper | Convertible | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2008-2010 | Mini | Cooper | 2 Dr / 3 Dr Hatchback, including Cooper S | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2011-2013 | Mini | Cooper | 2 Dr / 3 Dr Hatchback (4 Lug) | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2011-2013 | Mini | Cooper | Convertible (4 lug) | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2011-2013 | Mini | Cooper | Cooper S (4 Lug) | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2014-2015 | Mini | Cooper | Coupe | Coupe | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- Kit contains calipers with Stainless Steel Pistons.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-8491
