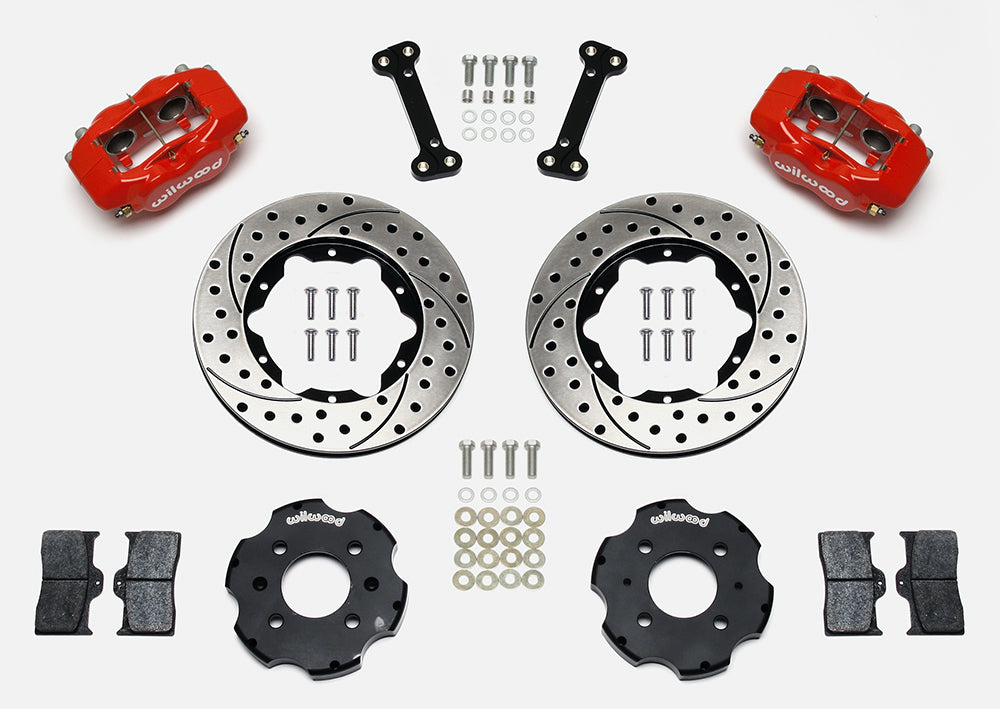

Wilwood front Dynalite kit for Honda Civic, CRX & del Sol, red calipers and 11-inch srp drilled and slotted rotors laid out

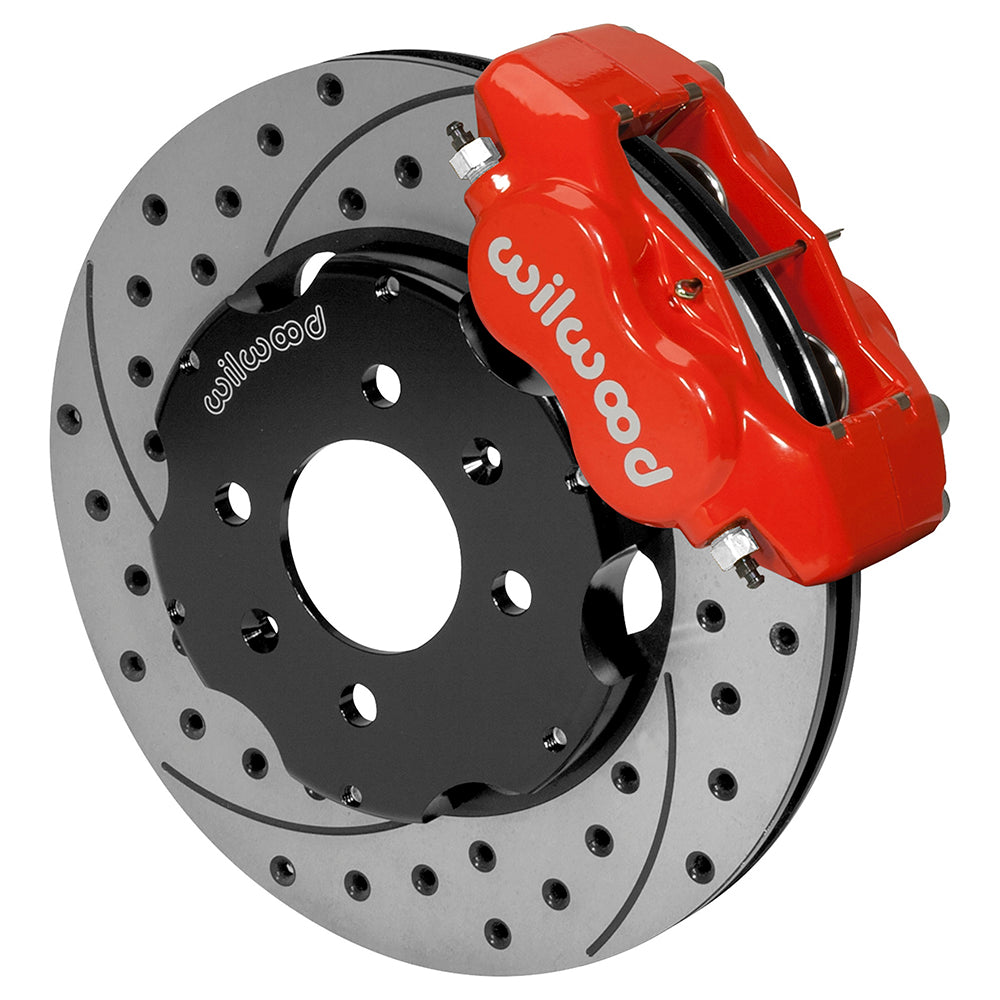

Representative assembled Wilwood red Dynalite caliper and srp drilled and slotted rotor; hat drilling differs from the four-lug Honda kit
Wilwood front Dynalite kit for Honda Civic, CRX & del Sol, red calipers and 11-inch srp drilled and slotted rotors laid out
Representative assembled Wilwood red Dynalite caliper and srp drilled and slotted rotor; hat drilling differs from the four-lug Honda kit

Wilwood Front Red Dynalite Conversion for CRX (1988–1991), Civic (1988–2000) and Civic del Sol (1993–1997) — 11-Inch SRP Rotors, 240 mm OE Brake Fitment

SKU: 140-8695-DR

$1,079.71 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red Dynalite calipers and drilled/slotted iron rotors make up this 11-inch Honda front brake package. The original hubs stay in place, so confirm both the four-lug pattern and the required 240 mm factory-spindle configuration before choosing it. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

  • Manufacturer part number: 140-8695-DR
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 4 x 3.93 in; 4 x 99.82 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.500 in; 12.70 mm; this is not a wheel-stud thread designation
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit
  • Service calipers: 4-piston Forged Dynalite Internal; Red Powder Coat; lug mounting
  • Brake rotors: 11.00 x 0.81 inches; Iron; SRP Drilled & Slotted; vented

Fitment & Compatibility

Fits only the listed four-lug Honda Civic, CRX and Civic del Sol configurations with factory 240 mm front rotors. Coverage spans selected Civic models from 1988–2000, CRX from 1988–1991 and del Sol from 1993–1997; the individual ABS, body, transmission and trim restrictions remain essential.

The factory spindle caliper-mounting lugs require material removal for bracket clearance. Have a qualified machinist perform the work specified in DS491. Order the correct 220-6419 front hoses separately. The assembled illustration is representative; the kit uses the four-lug hat arrangement specified in the drawing, not the six-hole illustration.

The table below gives the detailed vehicle coverage; match the individual entry and each referenced note.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Front Kit 1, 2, 3, 4
1988 Honda Civic Sedan w/ MT Disc Drum Front Kit 1, 2, 3, 4
1988-1991 Honda Civic Base HB Base Disc Drum Front Kit 1, 2, 3, 4
1988-1989 Honda CRX DX & SI Disc Drum Front Kit 1, 2, 3, 4
1988-1991 Honda CRX HF HF Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic HB DX Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic Si HB SI Disc Drum Front Kit 1, 2, 3, 4
1990-1991 Honda CRX DX Disc Drum Front Kit 1, 2, 3, 4
1990-1991 Honda CRX Si SI Disc Disc Front Kit 1, 2, 3, 4
1992-1995 Honda Civic HB Auto Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Sedan DX / LX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Si HB SI Disc Disc Front Kit 1, 2, 3, 4
1993-1995 Honda Civic Coupe DX w/ Auto Disc Drum Front Kit 1, 2, 3, 4
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Front Kit 1, 2, 3, 4
1993 Honda Civic del Sol w/ Rear Disc Disc Disc Front Kit 1, 2, 3, 4
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic HB SI w/ out ABS Disc Disc Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Front Kit 1, 2, 3, 4
1994 Honda Civic Sedan DX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ AT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4
1995 Honda Civic Sedan DX w/ AT Disc Drum Front Kit 1, 2, 3, 4
1995-1997 Honda Civic del Sol W/ Rear Disc S Disc Disc Front Kit 1, 2, 3, 4
1996-2000 Honda Civic Coupe DX / HX Models Disc Drum Front Kit 1, 2, 3, 4
1996-2000 Honda Civic HB Disc Drum Front Kit 1, 2, 3, 4
1996, 1998 Honda Civic Sedan w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1996 Honda Civic EX Coupe EX w/out ABS Disc Drum Front Kit 1, 2, 3, 4
1997 Honda Civic Sedan Excludes EX Disc Drum Front Kit 1, 2, 3, 4
1998-1999 Honda Civic GX Sedan GX Disc Drum Front Kit 1, 2, 3, 4
1999-2000 Honda Civic Sedan Disc Drum Front Kit 1, 2, 3, 4

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. This kit requires spindles from vehicles originally equipped with 240mm (9.45") diameter rotors.
  3. Line kit included (manufacturer): None
  4. Front line-kit reference: 220-6419
