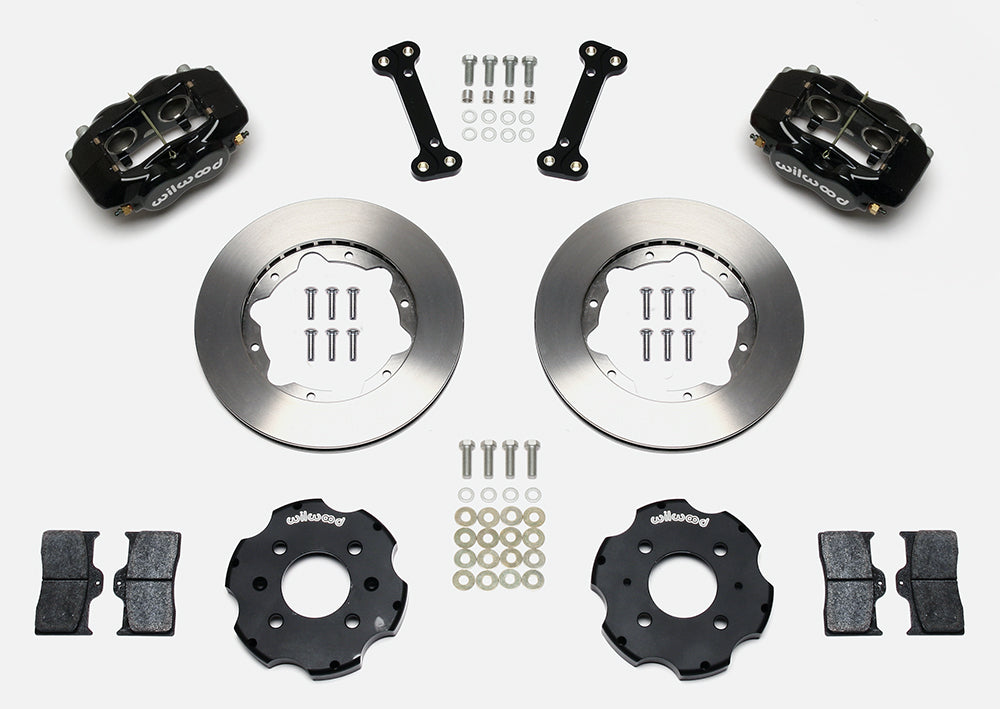

Wilwood front Dynalite kit for Honda Civic, CRX & del Sol, black calipers and 11-inch plain face rotors laid out

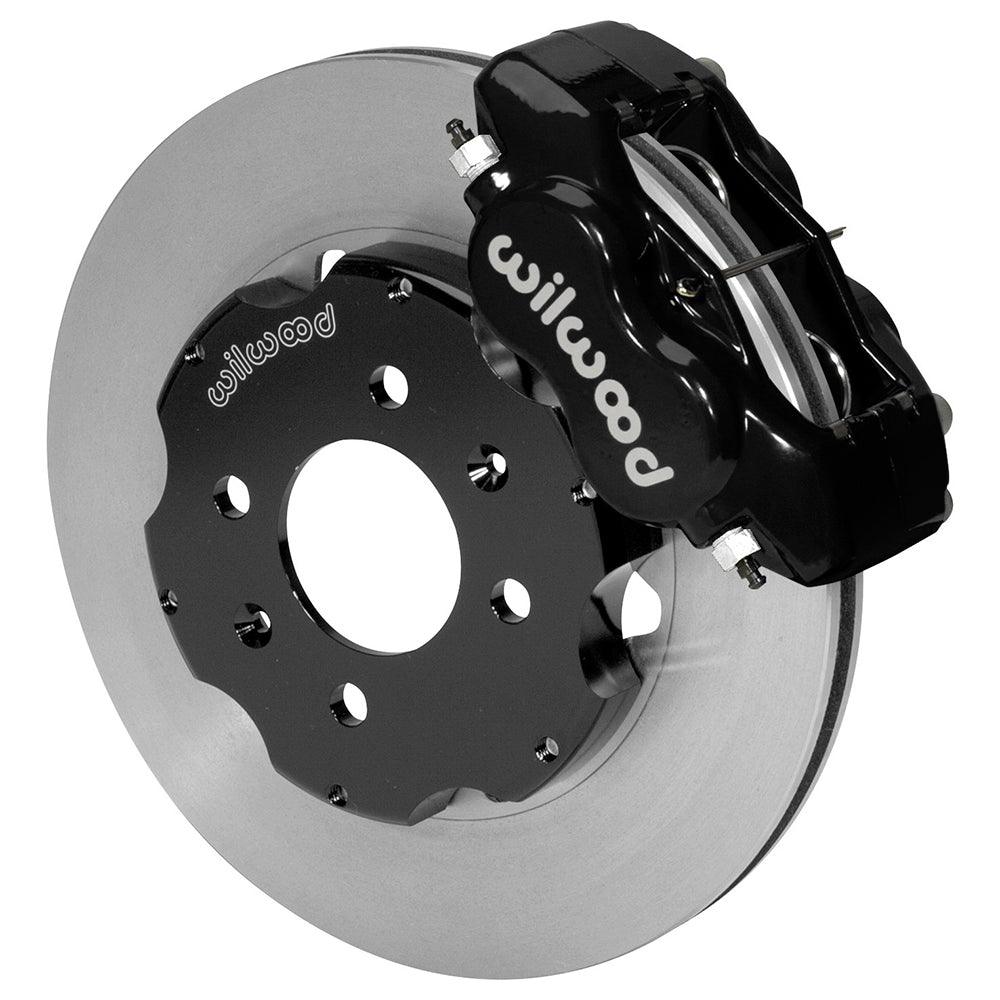

Representative assembled Wilwood black Dynalite caliper and plain face rotor; hat drilling differs from the four-lug Honda kit
Wilwood front Dynalite kit for Honda Civic, CRX & del Sol, black calipers and 11-inch plain face rotors laid out
Representative assembled Wilwood black Dynalite caliper and plain face rotor; hat drilling differs from the four-lug Honda kit

Wilwood Front Black Dynalite Kit, 11-Inch Plain Rotors — Honda Civic (1988–2000), CRX (1988–1991) and Civic del Sol (1993–1997) with 240 mm OE Brakes

SKU: 140-8695

$937.40 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Honda front conversion replaces the specified 240 mm brake arrangement with plain 11-inch rotors and black Dynalite calipers. It retains the four-lug hubs and requires the spindle work shown in Wilwood's installation drawing. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.

Technical Details

  • Manufacturer part number: 140-8695
  • Service calipers: 4-piston Forged Dynalite Internal; Black Powder Coat; lug mounting
  • Brake rotors: 11.00 x 0.81 inches; Iron; Plain Face; vented
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Plain; rotors are not supplied burnished
  • Rotor/hat wheel-stud clearance pattern(s): 4 x 3.93 in; 4 x 99.82 mm; the existing hub/axle pattern is retained
  • Hat/rotor stud-hole clearance: 0.500 in; 12.70 mm; this is not a wheel-stud thread designation
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Kit includes calipers, rotors and mounting hardware; replacement hubs and spindles are not included
  • Not included: master cylinder and brake booster
  • Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit

Fitment & Compatibility

Fits only the listed four-lug Honda Civic, CRX and Civic del Sol configurations with factory 240 mm front rotors. Coverage spans selected Civic models from 1988–2000, CRX from 1988–1991 and del Sol from 1993–1997; the individual ABS, body, transmission and trim restrictions remain essential.

The factory spindle caliper-mounting lugs require material removal for bracket clearance. Have a qualified machinist perform the work specified in DS491. Order the correct 220-6419 front hoses separately. The assembled illustration is representative; the kit uses the four-lug hat arrangement specified in the drawing, not the six-hole illustration.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Front Kit 1, 2, 3, 4
1988 Honda Civic Sedan w/ MT Disc Drum Front Kit 1, 2, 3, 4
1988-1991 Honda Civic Base HB Base Disc Drum Front Kit 1, 2, 3, 4
1988-1989 Honda CRX DX & SI Disc Drum Front Kit 1, 2, 3, 4
1988-1991 Honda CRX HF HF Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic HB DX Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic Si HB SI Disc Drum Front Kit 1, 2, 3, 4
1990-1991 Honda CRX DX Disc Drum Front Kit 1, 2, 3, 4
1990-1991 Honda CRX Si SI Disc Disc Front Kit 1, 2, 3, 4
1992-1995 Honda Civic HB Auto Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Sedan DX / LX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Si HB SI Disc Disc Front Kit 1, 2, 3, 4
1993-1995 Honda Civic Coupe DX w/ Auto Disc Drum Front Kit 1, 2, 3, 4
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Front Kit 1, 2, 3, 4
1993 Honda Civic del Sol w/ Rear Disc Disc Disc Front Kit 1, 2, 3, 4
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic HB SI w/ out ABS Disc Disc Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Front Kit 1, 2, 3, 4
1994 Honda Civic Sedan DX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ AT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4
1995 Honda Civic Sedan DX w/ AT Disc Drum Front Kit 1, 2, 3, 4
1995-1997 Honda Civic del Sol W/ Rear Disc S Disc Disc Front Kit 1, 2, 3, 4
1996-2000 Honda Civic Coupe DX / HX Models Disc Drum Front Kit 1, 2, 3, 4
1996-2000 Honda Civic HB Disc Drum Front Kit 1, 2, 3, 4
1996, 1998 Honda Civic Sedan w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1996 Honda Civic EX Coupe EX w/out ABS Disc Drum Front Kit 1, 2, 3, 4
1997 Honda Civic Sedan Excludes EX Disc Drum Front Kit 1, 2, 3, 4
1998-1999 Honda Civic GX Sedan GX Disc Drum Front Kit 1, 2, 3, 4
1999-2000 Honda Civic Sedan Disc Drum Front Kit 1, 2, 3, 4

Application Notes

  1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  2. This kit requires spindles from vehicles originally equipped with 240mm (9.45") diameter rotors.
  3. Line kit included (manufacturer): None
  4. Front line-kit reference: 220-6419
