Product details

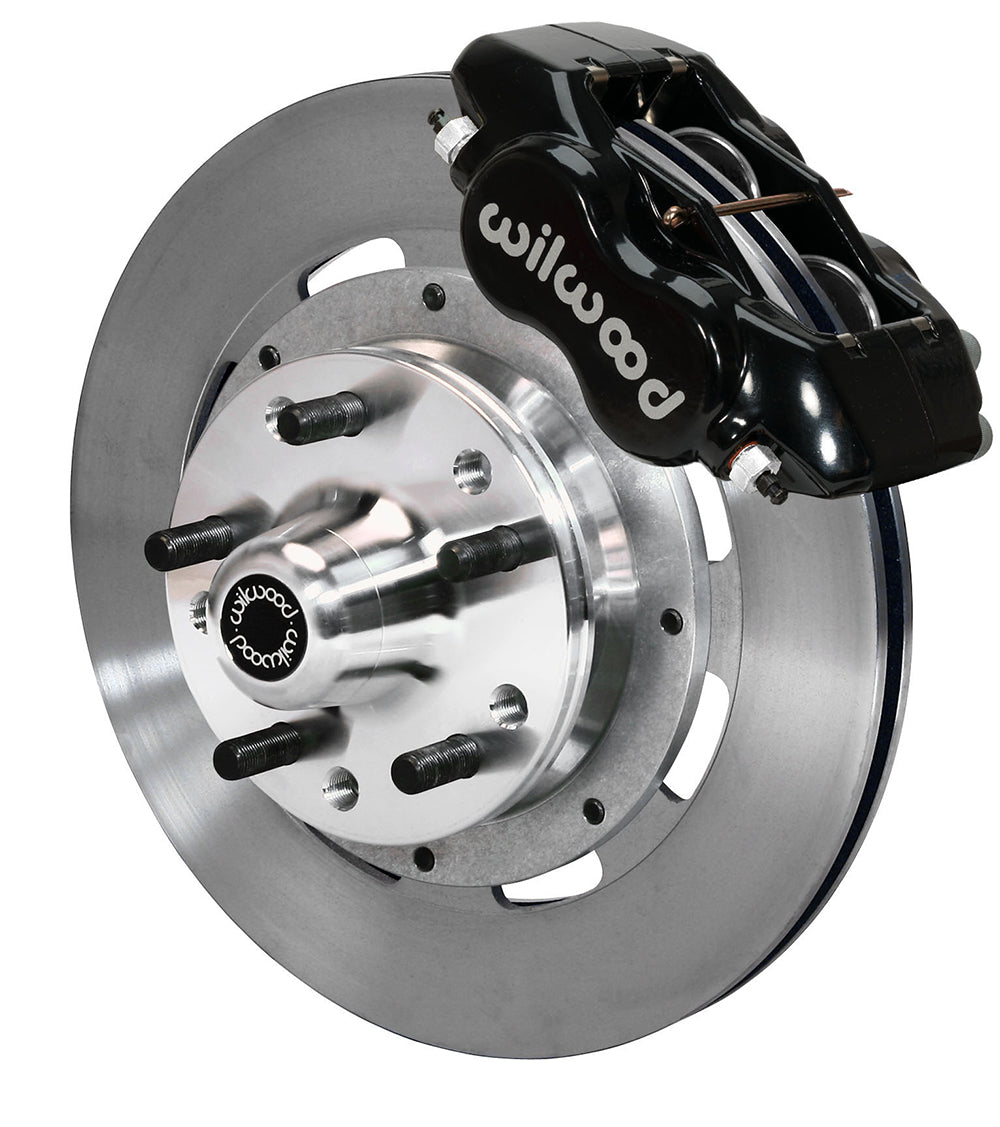

Black Dynalite calipers and plain 12.19-inch rotors form this front drum-to-disc conversion for the specified early Ford spindles. The package includes hubs and bearings, so spindle dimensions and wheel-to-hub seating deserve the same attention as the caliper clearance. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.
Technical Details
- Manufacturer part number: 140-8583
- Service calipers: 4-piston Forged Dynalite Internal; Black Powder Coat; lug mounting
- Brake rotors: 12.19 x 0.81 inches; Iron; Plain Face; vented
- Included pad compound: BP-10; pistons: stainless steel
- Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
- Rotor surface finish: Plain; rotors are not supplied burnished
- Supplied hub wheel pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Supplied wheel studs: 1/2-20 in
- Hydraulic hoses: not included; match the separate lines and fittings to the application

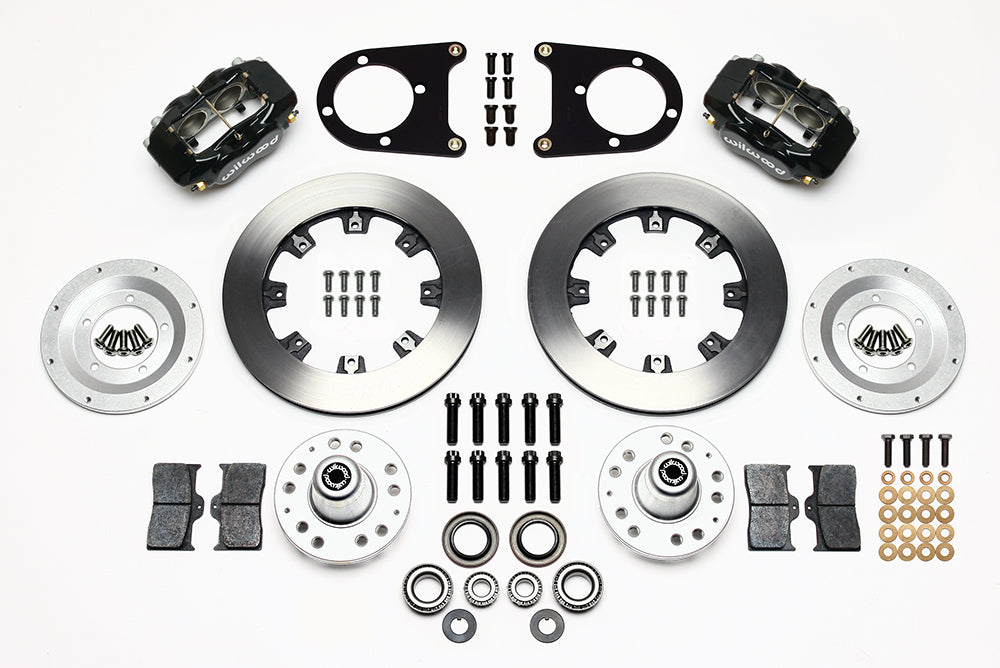

- Included hub package: hubs, bearings, seals, adapters and mounting hardware; original spindles are retained
- Not included: master cylinder and brake booster
- Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
- Quantity: sold as one axle kit
Fitment & Compatibility
Intended for the early Ford drum-brake spindle used by the qualified 1937–1948 passenger-car, sedan-delivery and pickup applications below. The application list includes Deluxe, Standard, Super Deluxe and the individual numbered Ford models. Check the actual spindle and bearing dimensions before treating a passenger-car or truck listing as a match.
Match the bracket and hub installation to DS481. The original rubber hoses do not connect directly to the Wilwood calipers; the listed 220-8307 flexline package is separate and must be checked for length and routing.
The wheel contact surface must seat fully on the hub. If it overhangs the hub face, Wilwood requires the separate 6.60-inch-diameter x 0.20-inch steel spacer 300-11961. For stamped-steel wheels that do not overhang, Wilwood recommends the 6.15-inch x 0.09-inch hub shield 300-10716. Inspect contact surfaces and follow the wheel maker’s tightening requirements.
Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.
Manufacturer Resources
- Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1937-1947 | Ford | 1 Ton Pickup | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1937-1947 | Ford | 1/2 Ton Pickup | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1937-1947 | Ford | 3/4 Ton Pickup | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1937 | Ford | Model 74 | Base | All Tudor / Fordor / SW | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1937 | Ford | Model 78 | Base | All Tudor / Fordor / SW | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1937-1942, 1946-1947 | Ford | Sedan Delivery | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1938 | Ford | Model 81 A | All Tudor / Fordor / SW | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 | |
| 1938 | Ford | Model 82 A | All Tudor / Fordor / SW | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 | |
| 1938 | Ford | Model 85 | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1939 | Ford | Deluxe | Base | All Tudor & Fordor (922A) | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1939-1940 | Ford | Standard | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1940-1941, 1946-1948 | Ford | Deluxe | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1940 | Ford | Pickup | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1941 | Ford | Model 1 GA Truck | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1941 | Ford | Model 11 A | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1941-1942, 1946-1948 | Ford | Super Deluxe | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1942 | Ford | Model 2 GA Special | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
| 1942 | Ford | Model 21 A Deluxe | Base | Base | Drum | Drum | Front Kit | 1, 2, 3, 4, 5, 6 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
- Master Cylinder may require modification to existing pushrod assembly to install.
- This front brake kit contains no parking-brake mechanism. Parking-brake cable selection belongs to the separate rear brake installation.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-8307
