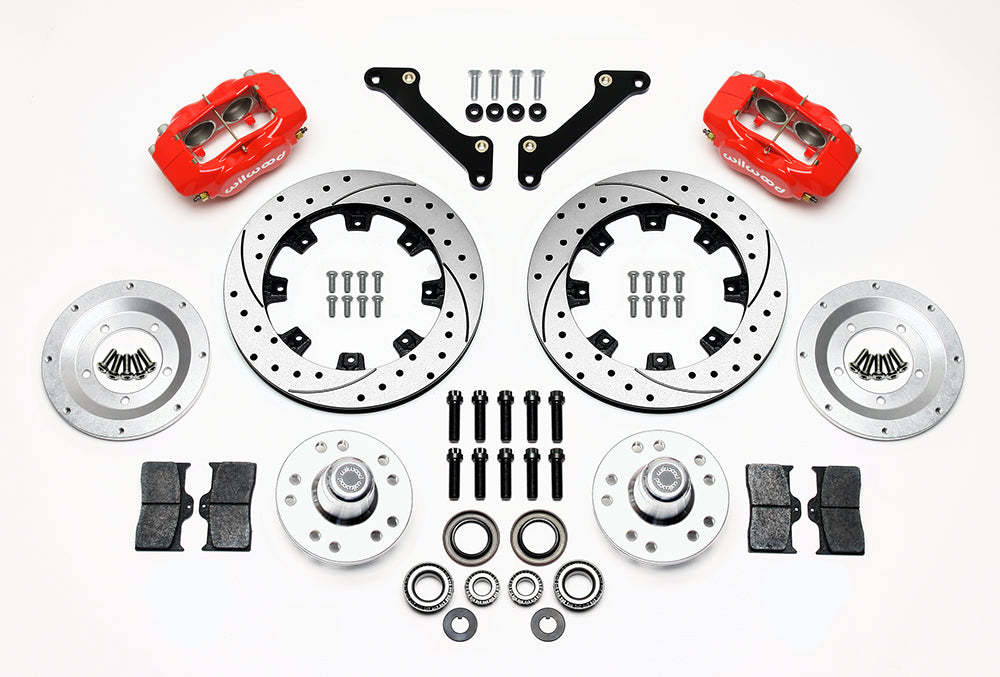

Wilwood front Dynalite kit for GM 11-Inch-Rotor Spindles, red calipers and 12.19-inch srp drilled and slotted rotors laid out

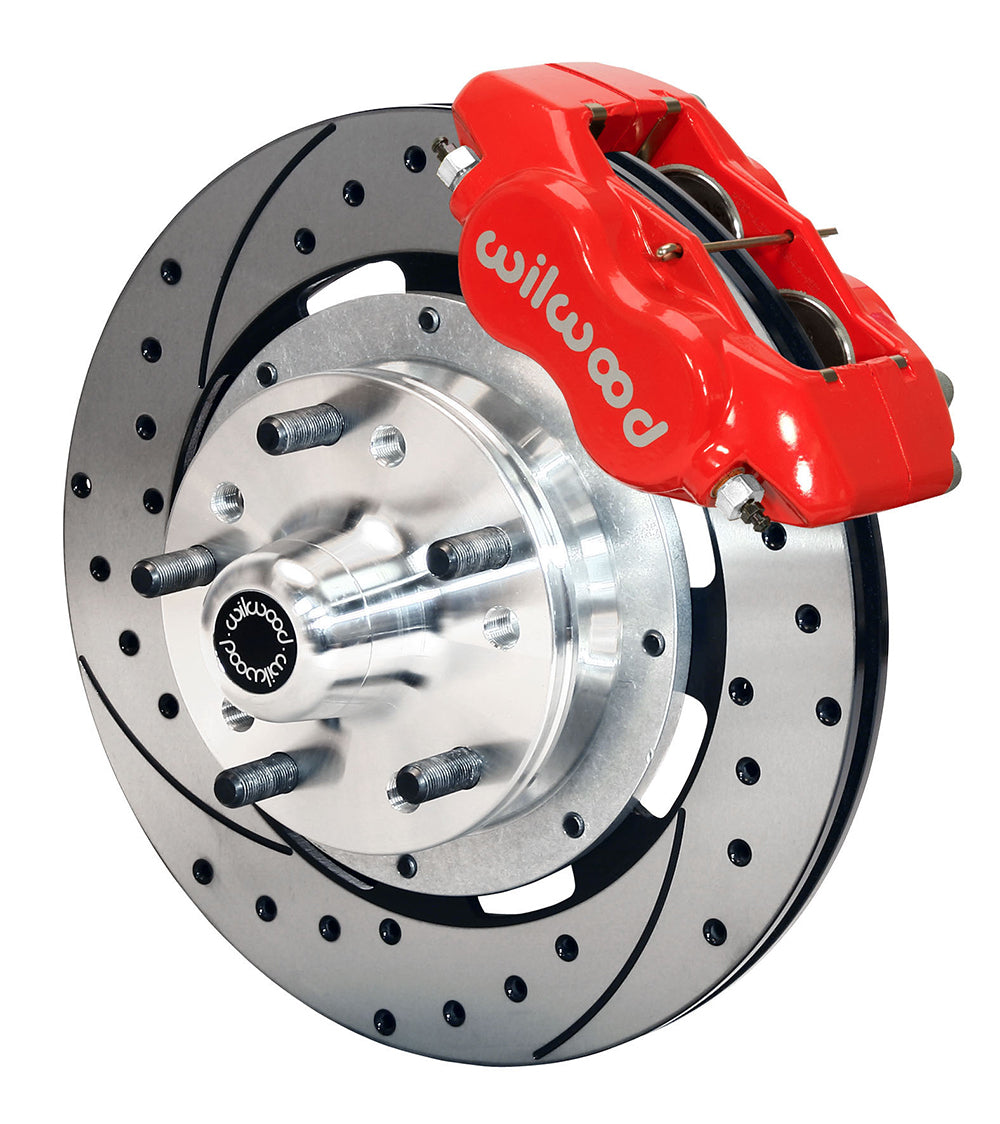

Wilwood red Dynalite caliper and 12.19-inch srp drilled and slotted rotor for GM 11-Inch-Rotor Spindles, assembled front view
Wilwood front Dynalite kit for GM 11-Inch-Rotor Spindles, red calipers and 12.19-inch srp drilled and slotted rotors laid out
Wilwood red Dynalite caliper and 12.19-inch srp drilled and slotted rotor for GM 11-Inch-Rotor Spindles, assembled front view

Wilwood Front Brake & Hub Conversion Kit for GM 11-Inch-Rotor Spindles (1970–1978) — Red Dynalite, 12.19-Inch Drilled/Slotted Rotors

SKU: 140-8582-DR

$1,281.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This front Dynalite conversion pairs red four-piston calipers with 12.19-inch SRP drilled and slotted rotors for the specified early GM disc spindles. New hubs, bearings and mounting hardware provide the rotating assembly, while spindle machining remains an essential part of installation. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.

Technical Details

  • Manufacturer part number: 140-8582-DR
  • Service calipers: 4-piston Forged Dynalite Internal; Red Powder Coat; lug mounting
  • Brake rotors: 12.19 x 0.81 inches; Iron; SRP Drilled & Slotted; vented
  • Included pad compound: BP-10; pistons: stainless steel
  • Caliper body: Forged aluminum; hydraulic inlet: 1/8-27 NPT
  • Rotor surface finish: Black Electro Coat; rotors are not supplied burnished
  • Supplied hub wheel pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Supplied wheel studs: 1/2-20 in
  • Hydraulic hoses: not included; match the separate lines and fittings to the application
  • Included hub package: hubs, bearings, seals, adapters and mounting hardware; original spindles are retained
  • Not included: master cylinder and brake booster
  • Wheel clearance: 15-inch wheels may fit; check the complete manufacturer caliper/rotor template
  • Quantity: sold as one axle kit

Fitment & Compatibility

For the listed 1970–1978 GM passenger-car applications with the specified factory disc-brake spindle and original 11-inch rotor arrangement. Camaro and Firebird are included alongside the qualified Buick, Cadillac, Chevrolet, GMC, Oldsmobile and Pontiac entries below. The spindle configuration, rather than the badge alone, determines compatibility.

Installation requires substantial steering-arm/spindle work, including drilling and tapping mounting holes and removing interfering ears. Wilwood recommends a qualified machine shop. Hydraulic hose kit 220-10509 is separate; confirm its routing for the exact vehicle.

The wheel contact surface must seat fully on the hub. If it overhangs the hub face, Wilwood requires the separate 6.60-inch-diameter x 0.20-inch steel spacer 300-11961. For stamped-steel wheels that do not overhang, Wilwood recommends the 6.15-inch x 0.09-inch hub shield 300-10716. Inspect contact surfaces and follow the wheel maker’s tightening requirements.

Use the fitment table below to confirm the exact model, year, trim and all numbered application notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1970-1977 Chevrolet Camaro Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1970-1976 Pontiac Firebird Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Buick Century Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Buick Regal Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973 Chevrolet Chevelle Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Chevrolet El Camino All Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Chevrolet Malibu Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Chevrolet Monte Carlo Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 GMC Sprint All Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Oldsmobile Cutlass Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973, 1977 Oldsmobile Cutlass Supreme Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1975 Oldsmobile Vista Cruiser Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1975 Pontiac Grand Am Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 6, 7
1973-1976 Pontiac Grand Prix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973 Pontiac GTO Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 6, 7
1973-1976 Pontiac LeMans Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1974-1976 Oldsmobile Cutlass Supreme All Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975 Buick Apollo Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1977 Buick Skylark Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1977 Chevrolet Nova Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1976 Oldsmobile Omega Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1976 Pontiac Ventura Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1976 Cadillac Seville Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977 Buick Estate Wagon With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977 Buick LeSabre With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977 Chevrolet Impala With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977-1978 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Oldsmobile Delta 88 With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Oldsmobile Omega Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Bonneville With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Catalina With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Firebird Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977 Pontiac Grand Prix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977 Pontiac LeMans Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Phoenix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977 Pontiac Ventura Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Buick Estate Wagon With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Buick LeSabre With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Buick Skylark Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Chevrolet Camaro Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Chevrolet Impala With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Chevrolet Nova Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7

Application Notes

  1. Front kits fit 11" rotor spindles only.
  2. Requires modifications to original spindle
  3. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  4. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  5. This front brake kit contains no parking-brake mechanism. Parking-brake cable selection belongs to the separate rear brake installation.
  6. Line kit included (manufacturer): None
  7. Front line-kit reference: 220-10509
