Wilwood Black Dynalite 12.19-inch SRP Drilled/Slotted Front Hub Brakes — listed 1970–1978 GM 11-inch-rotor spindles

SKU: 140-8582-D

$1,281.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

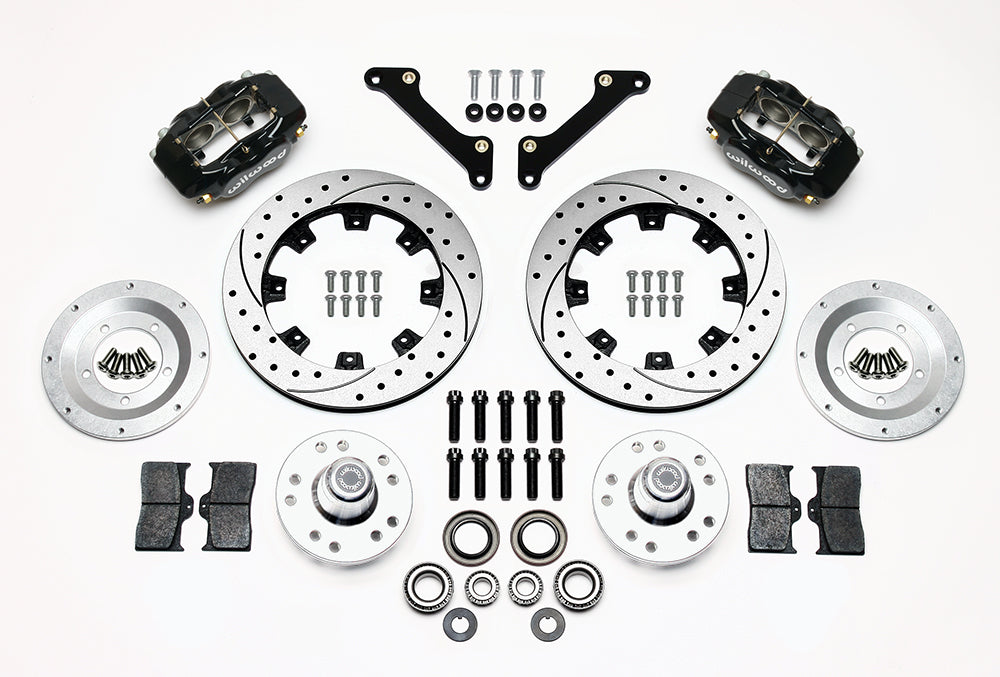

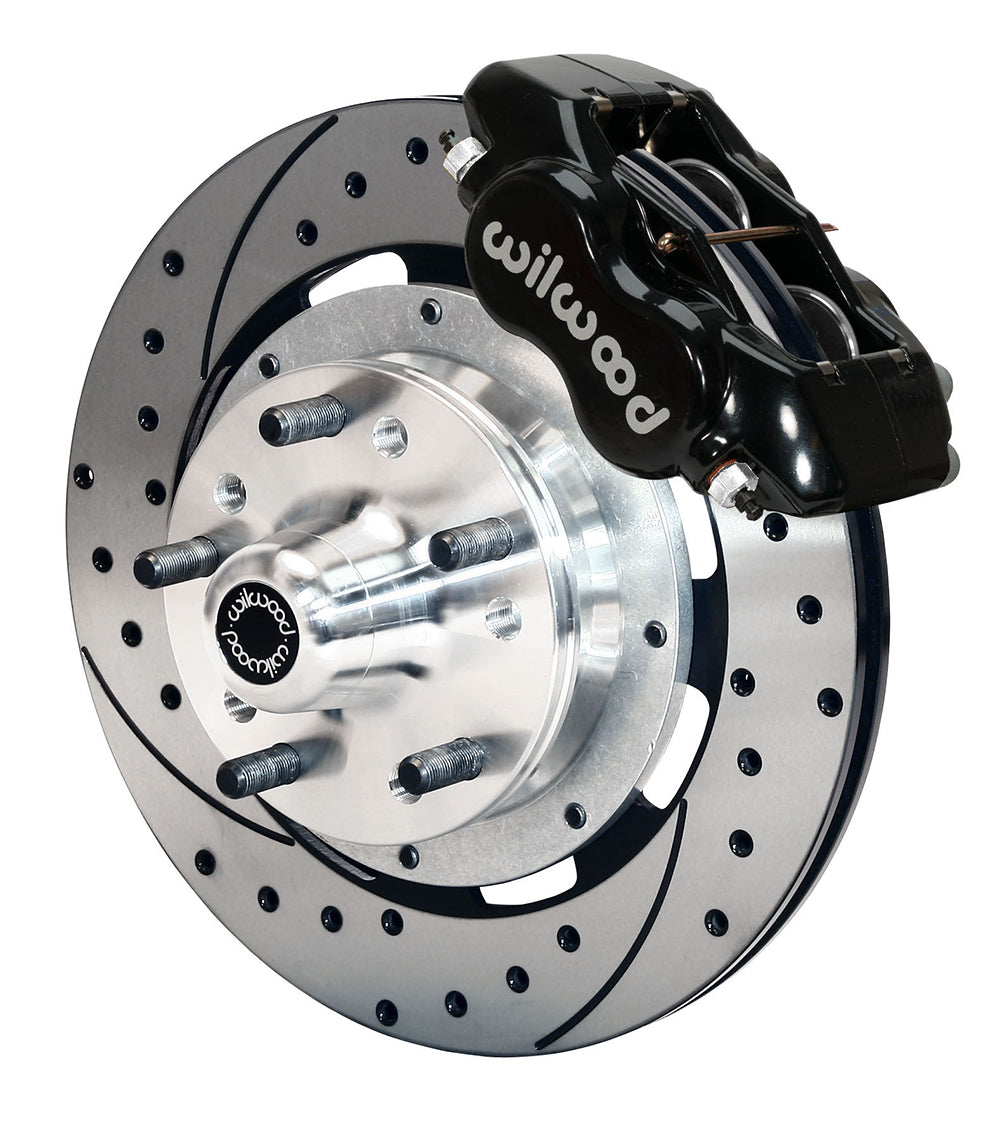

The black SRP version combines patterned front rotors with new five-lug hubs on the specified GM spindles. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for listed 1970–1978 GM 11-inch-rotor spindles. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

Identify the original 11-inch-rotor front spindle before selecting this GM hub conversion. The listed vehicles span 1970–1978, but the supported years and spindle qualifiers differ between models. DS480 requires modifications to the original spindle, so this installation needs more than removal of the old caliper and rotor. The new hubs carry their own 1/2-20 wheel studs and offer the specified wheel bolt circles; verify the intended wheel pattern before assembly. A front disc-kit application should not be confused with parking-brake equipment mentioned in a general vehicle note. This front package supplies no rear parking-brake conversion. Check wheel placement, bearing installation and hydraulic hose travel as part of the completed assembly.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

  • Manufacturer part number: 140-8582-D.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Black Powder Coat.
  • Supplied hub wheel bolt circles: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
  • Included wheel stud thread: 1/2-20.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
  • Sold as one kit. Mounting hardware is included. Replacement hubs are included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

  • Follow DS480 for spindle preparation and wheel clearance. Confirm brake-hose routing and master-cylinder compatibility as part of the complete system.
  • Included hubs provide 5 x 4.5 and 5 x 4.75-inch bolt circles with 1/2-20 wheel studs.
  • Wheel contact surfaces must be fully supported by the hub face. Where they overhang it, Wilwood requires its separately sold 6.60-inch-diameter x 0.20-inch steel spacer. For stamped-steel wheels that do not overhang, the instructions recommend the separate 6.15-inch-diameter x 0.09-inch hub shield. Verify the exact wheel with the installation instructions.
  • Wilwood specifies a -0.28-inch hub offset per side. Confirm the resulting wheel position on the installed spindle along with the caliper-clearance template.

Manufacturer references

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1970-1977 Chevrolet Camaro Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1970-1976 Pontiac Firebird Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Buick Century Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Buick Regal Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973 Chevrolet Chevelle Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Chevrolet El Camino All Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Chevrolet Malibu Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Chevrolet Monte Carlo Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 GMC Sprint All Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1977 Oldsmobile Cutlass Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973, 1977 Oldsmobile Cutlass Supreme Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1975 Oldsmobile Vista Cruiser Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1975 Pontiac Grand Am Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 6, 7
1973-1976 Pontiac Grand Prix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973 Pontiac GTO Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 6, 7
1973-1976 Pontiac LeMans Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1974-1976 Oldsmobile Cutlass Supreme All Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975 Buick Apollo Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1977 Buick Skylark Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1977 Chevrolet Nova Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1976 Oldsmobile Omega Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1975-1976 Pontiac Ventura Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1976 Cadillac Seville Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977 Buick Estate Wagon With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977 Buick LeSabre With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977 Chevrolet Impala With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1977-1978 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Oldsmobile Delta 88 With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Oldsmobile Omega Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Bonneville With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Catalina With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Firebird Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977 Pontiac Grand Prix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977 Pontiac LeMans Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977-1978 Pontiac Phoenix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1977 Pontiac Ventura Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Buick Estate Wagon With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Buick LeSabre With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Buick Skylark Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Chevrolet Camaro Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Chevrolet Impala With OE 11" Rotor Spindles Disc Drum Front Kit 1, 2, 3, 5, 6, 7
1978 Chevrolet Nova Disc Brake Spindle Disc Drum Front Kit 1, 2, 3, 5, 6, 7

Application Notes

  1. Front kits fit 11" rotor spindles only.
  2. Requires modifications to original spindle
  3. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  4. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  5. This kit supplies front service-brake components. No parking-brake mechanism or parking-brake cables are included; verify the vehicle's separate rear parking-brake system.
  6. Line kit included (manufacturer): None
  7. Front line-kit reference: 220-10509
