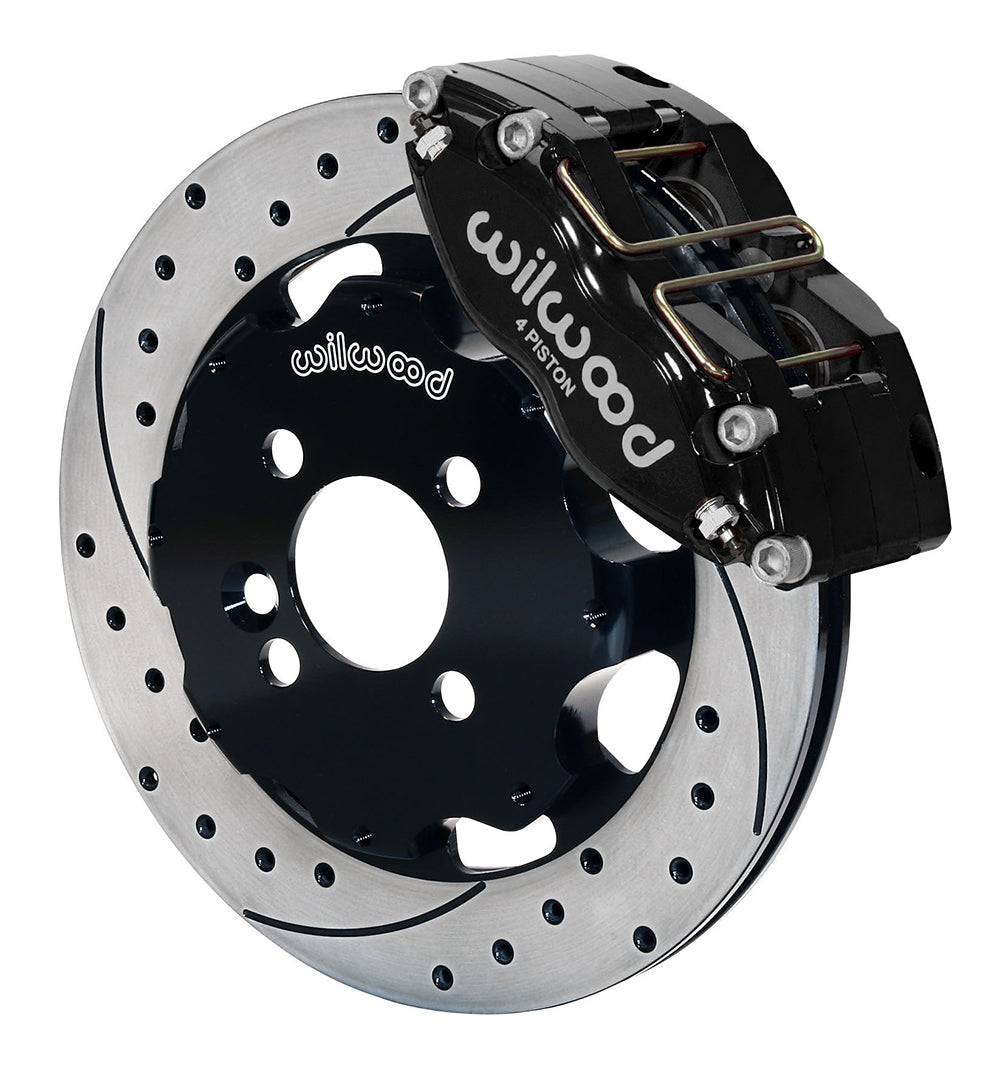

Wilwood Black Dynapro Dust-Seal 12.19-inch SRP Drilled/Slotted Front Brakes — selected four-lug Mini Cooper / Cooper S

Black calipers and SRP rotors form the patterned-disc option for the listed Mini body styles. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for selected four-lug Mini Cooper / Cooper S. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

This kit is for the four-lug Mini applications listed below, not every Cooper built between 2002 and 2015. Later fitment is body-specific: the 2014–2015 rows cover Coupe and Convertible configurations. Check the exact model year, body and hub before ordering. DS490 specifies a 1/8-inch wheel spacer for the stock 16-inch wheel application; verify the wheel and stud arrangement for your car.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

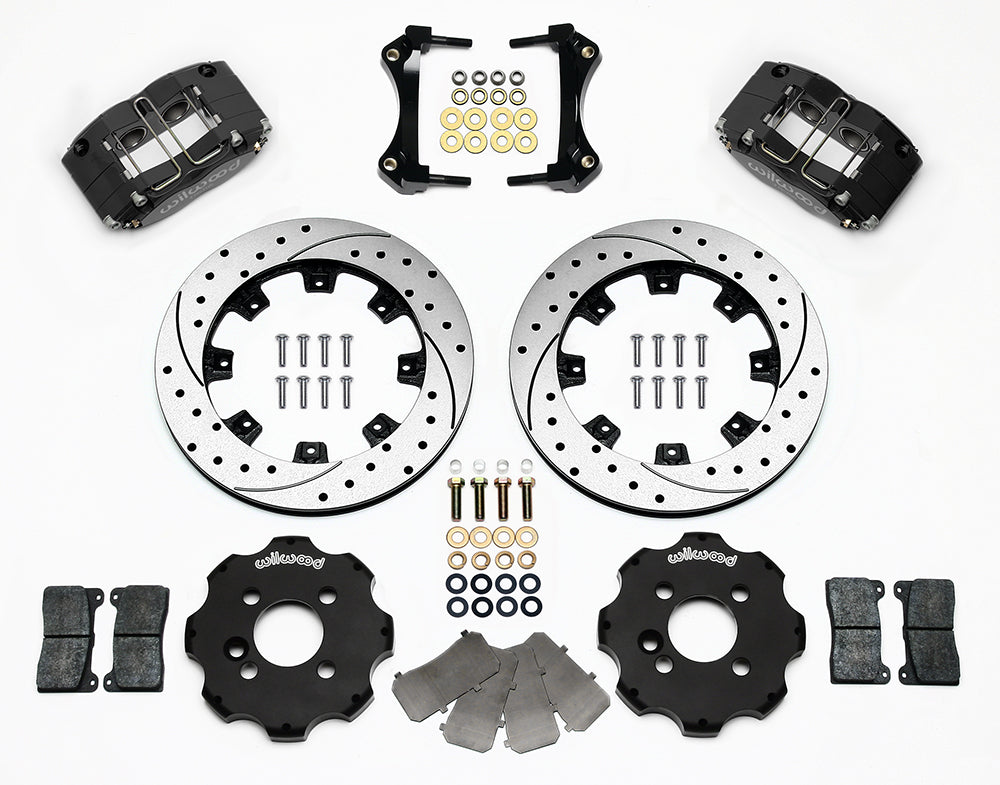

• Manufacturer part number: 140-8528-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 4 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.641 in; 16.28 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• Stock 16-inch wheels require the 1/8-inch spacer described in DS490. Check the template and safe wheel-fastener engagement with the intended wheels.
• Front line kit 220-8491 is sold separately.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8491
