Wilwood Dynapro Dust-Seal Front Kit for selected four-lug Mini Cooper / Cooper S — 12.19-inch Plain, Black

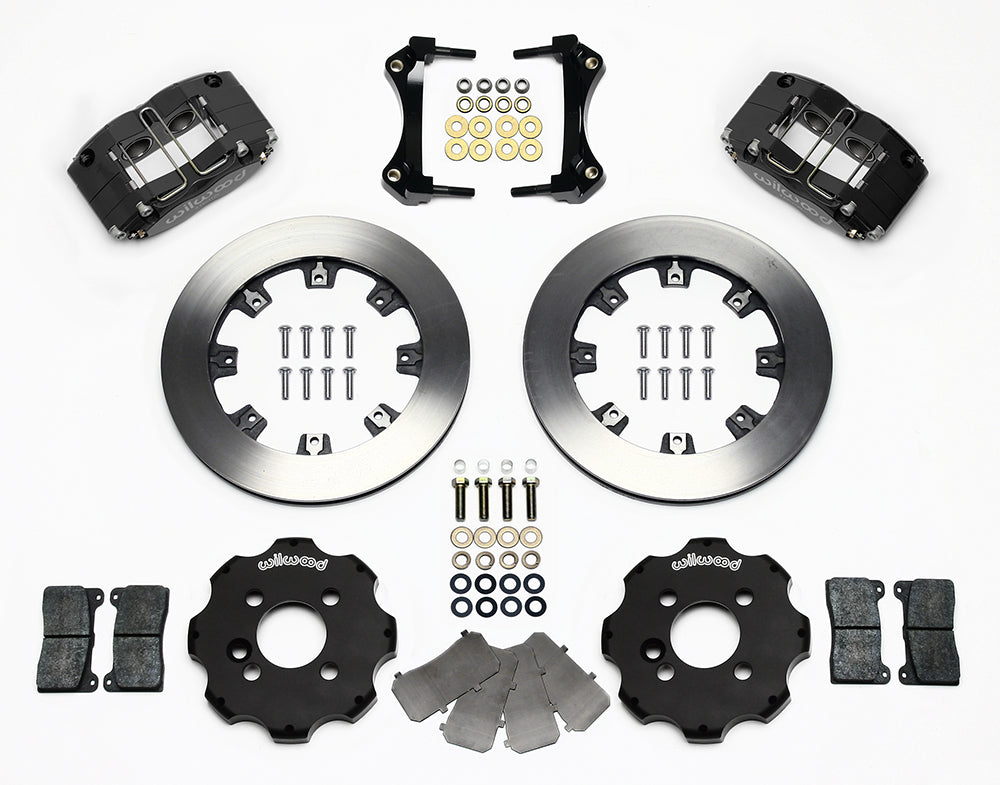

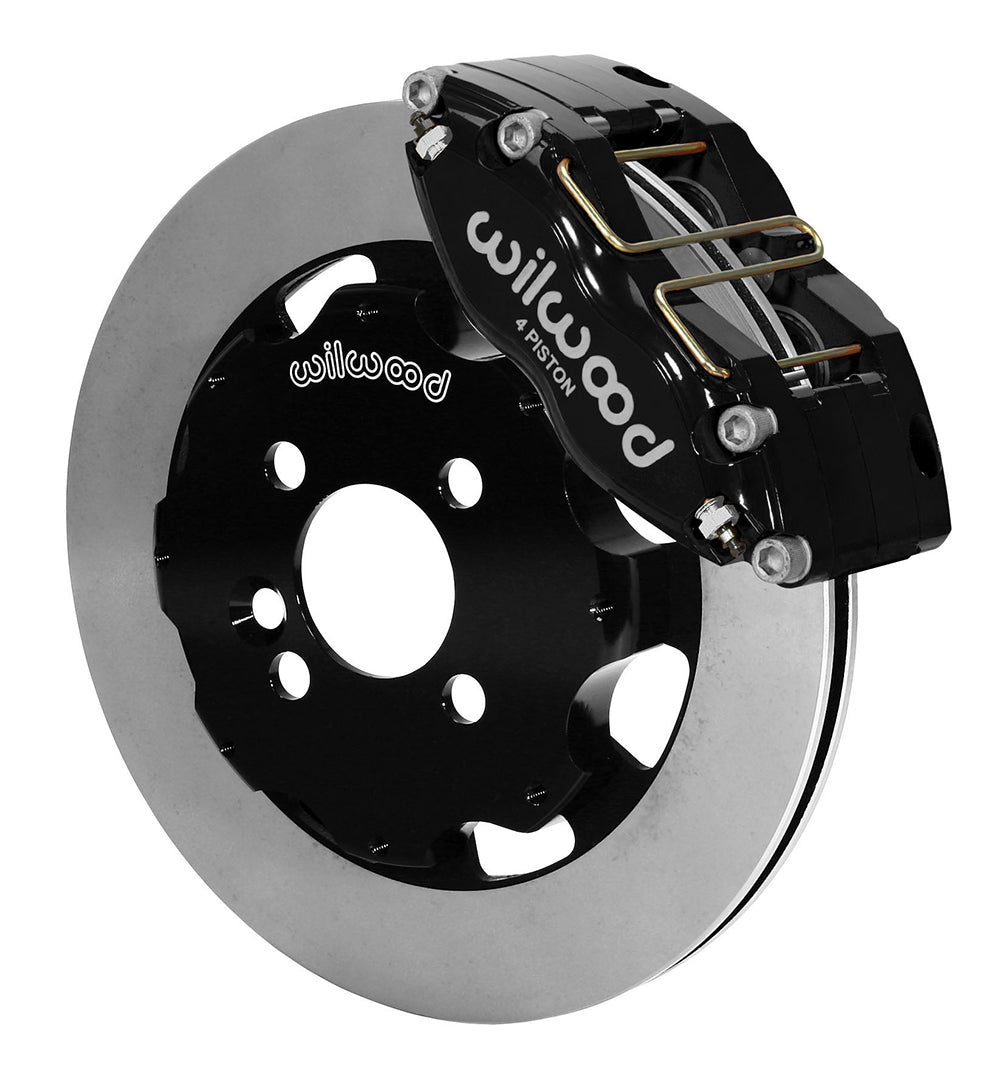

Four-lug Mini hubs and wheel clearance are the key checks for this dust-seal Dynapro package. This Dynapro Radial dust-seal front brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.

Technical Details

• Manufacturer part number: 140-8528.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; Plain Face friction surface.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 4 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.641 in; 16.28 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Fitment & Compatibility

This kit is for the four-lug Mini applications listed below, not every Cooper built between 2002 and 2015. Later fitment is body-specific: the 2014–2015 rows cover Coupe and Convertible configurations. Check the exact model year, body and hub before ordering. DS490 specifies a 1/8-inch wheel spacer for the stock 16-inch wheel application; verify the wheel and stud arrangement for your car.

The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.

Package and installation requirements

• Stock 16-inch wheels require the 1/8-inch spacer described in DS490. Check the template and safe wheel-fastener engagement with the intended wheels.
• Front line kit 220-8491 is sold separately.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8491
