Wilwood Black Superlite 6R 12.88-inch SRP Drilled/Slotted Front Brakes — 1988–1996 Chevrolet Corvette C4

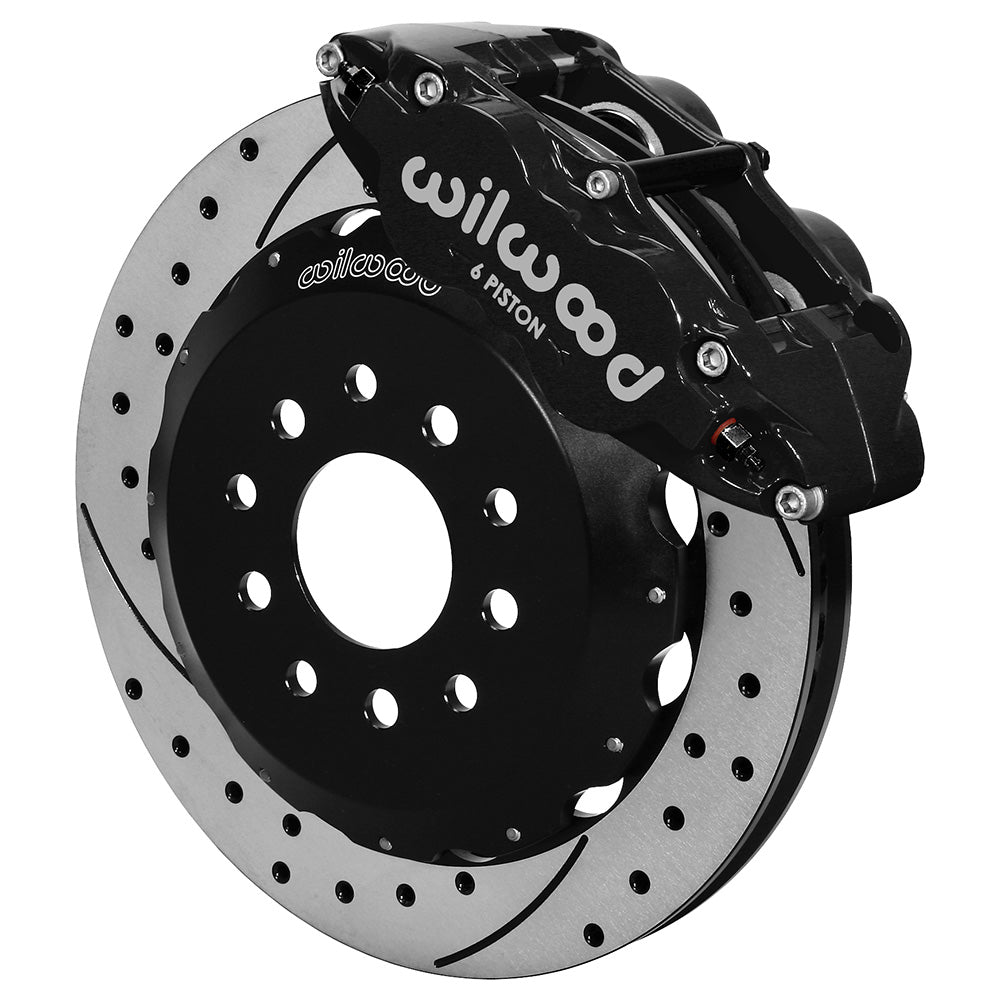

The black SRP package uses drilled-and-slotted Spec-37 discs on the listed standard and HD C4 front ends. The supplied black powder-coated 6-piston calipers and 12.88-inch SRP drilled-and-slotted rotors are configured for 1988–1996 Chevrolet Corvette C4. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

The six-piston front conversion is listed for Corvette C4 from 1988–1996 with either the factory standard 12-inch front brake option or the heavy-duty 13-inch front option. Both factory configurations lead to the kit’s specified 12.88-inch replacement rotor, rather than retaining either original rotor diameter. Its radial-mount Superlite 6R calipers need clearance behind the wheel spokes as well as around the barrel. Consult DS479 with the actual wheels and confirm the existing hub arrangement before installation. Front flexlines are separate and should be checked for steering clearance. Match the complete model-year and brake-option entry below when confirming the application.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-8337-D.
• Calipers: 6 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Rotor/hat stud-hole clearance diameters: 0.560 in; 14.22 mm; 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick.
• Rotor construction: Spec-37 Iron; vented; SRP Drilled & Slotted friction surface.

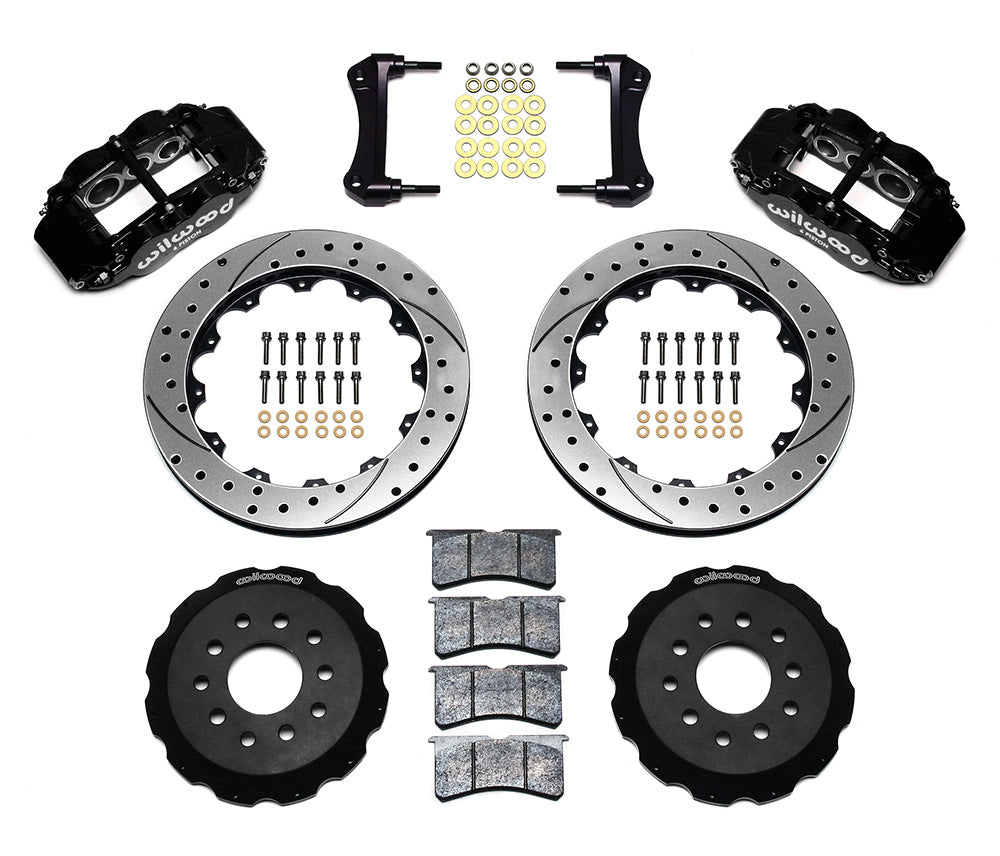

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Wheel-size guide: 17 in; 431.8 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• Front hydraulic line kit 220-8338 is listed separately.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8338
