Wilwood 12.19-inch Plain Dynapro Dust-Seal Front Kit, Red — Mitsubishi Eclipse / Eagle Talon / Dodge Avenger / Chrysler Sebring Coupe

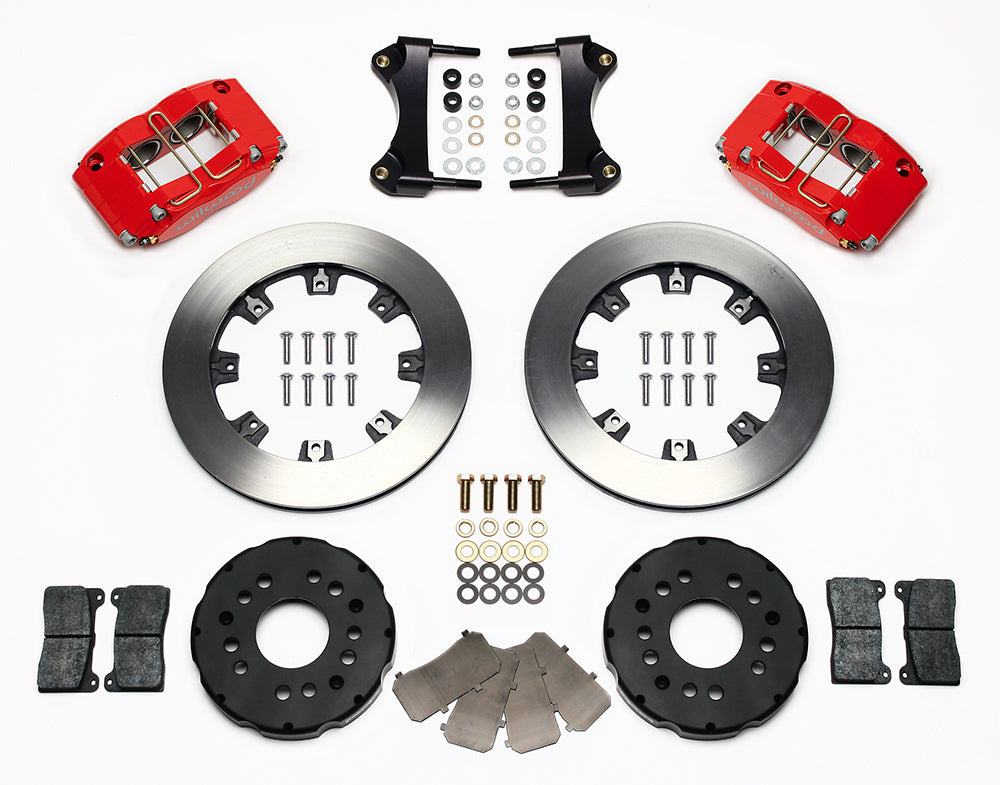

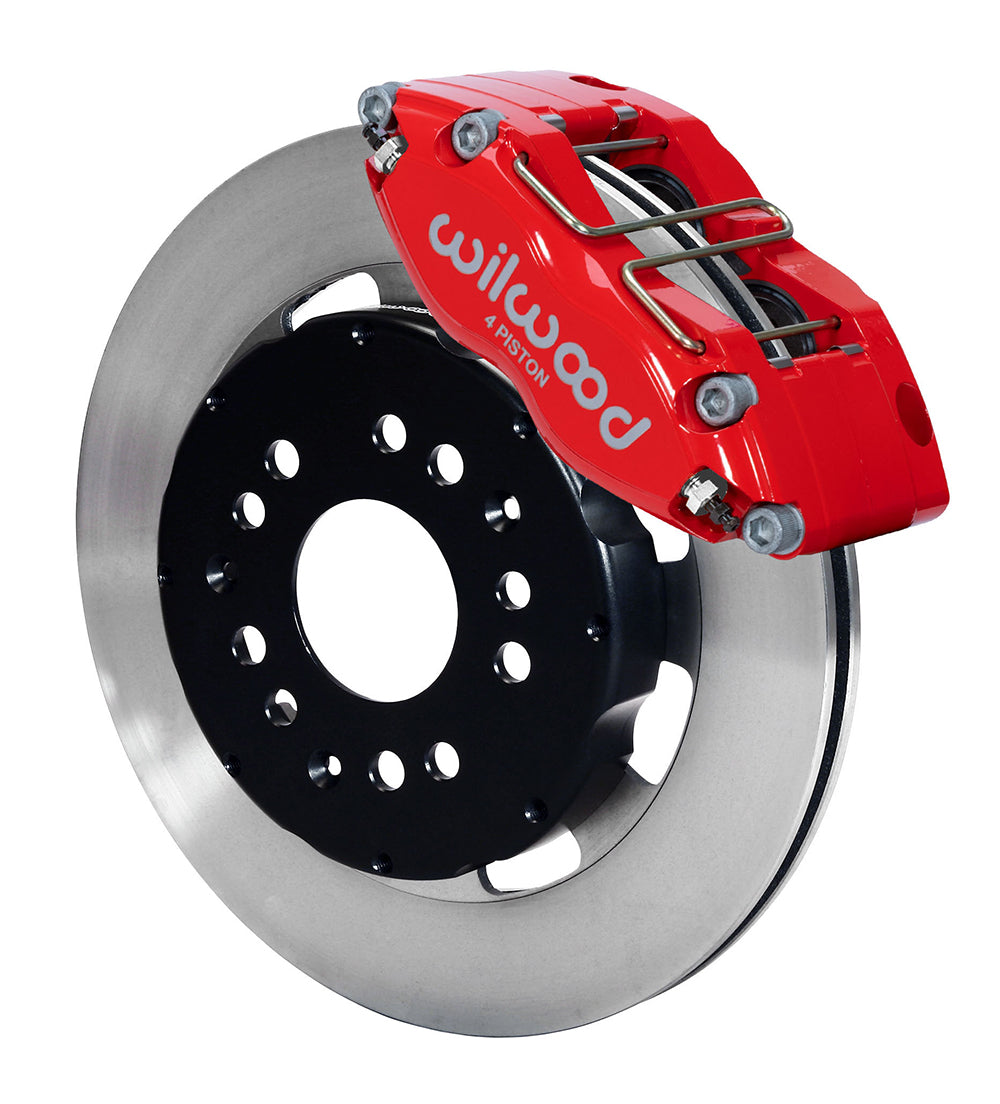

Plain front discs are paired with red dust-seal calipers for the listed coupe applications. At the front axle, this kit pairs red powder-coated 4-piston calipers and 12.19-inch plain-face rotors with the mounting hardware for Mitsubishi Eclipse / Eagle Talon / Dodge Avenger / Chrysler Sebring Coupe. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, with a range including calipers, rotors, master cylinders, valves, fittings and brake lines. Selecting the mounting and hydraulic components together is part of building the complete brake system.

Technical Details

• Manufacturer part number: 140-8292-R.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; Plain Face friction surface.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm.
• Rotor/hat stud-hole clearance diameters: 0.480 in; 12.19 mm; 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Package and installation requirements

• Wilwood flexline kit 220-8293 is referenced separately.

Fitment & Compatibility

This package covers the listed 1995–1999 Mitsubishi Eclipse, 1995–1998 Eagle Talon, 1995–2000 Dodge Avenger and 1995–2000 Chrysler Sebring Coupe front ends. Sebring convertibles are outside that application. The entries distinguish cars with ABS from non-ABS versions and identify the factory rear-disc or rear-drum layout. Match all those details before choosing the kit. DS470 shows the radial-mount caliper installation and the rotor-hat fit on the existing hub. The new front calipers include dust seals, but their fit inside a wheel must still be checked with the drawing rather than inferred from the factory wheel size. This is a front brake package; it does not change the car’s original rear brake type.

The listed applications below retain their equipment qualifiers. Check the matching row and each referenced note before selecting the kit.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

PMB Performance has more than 20 years of experience helping customers select brake components. Share the measurements and photos of your current setup so we can help check the application and the additional pieces needed.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8293
