Wilwood Mitsubishi Eclipse / Eagle Talon / Dodge Avenger / Chrysler Sebring Coupe Front Kit — Red Dynapro Dust-Seal, 12.19-inch SRP Drilled/Slotted

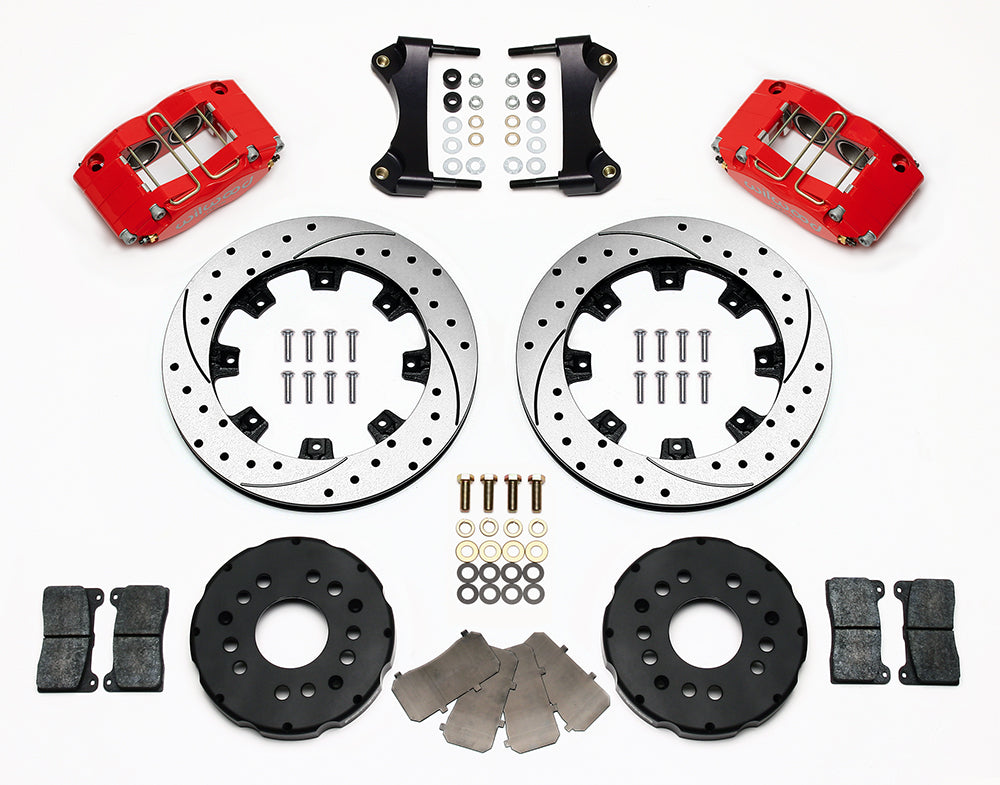

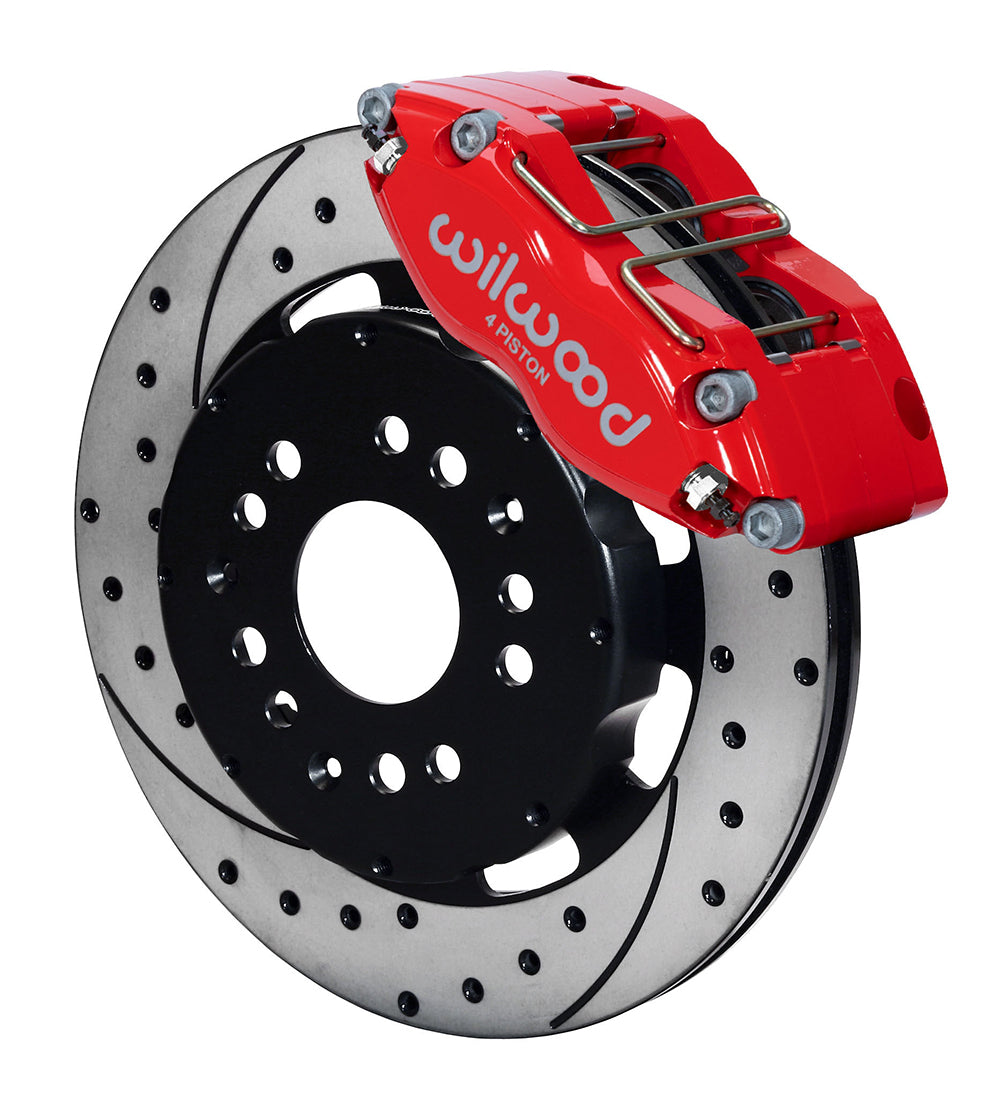

Red four-piston calipers and SRP rotors provide the visible finish of this shared-platform kit. For Mitsubishi Eclipse / Eagle Talon / Dodge Avenger / Chrysler Sebring Coupe, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this front package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

• Wilwood flexline kit 220-8293 is referenced separately.

Fitment & Compatibility

This package covers the listed 1995–1999 Mitsubishi Eclipse, 1995–1998 Eagle Talon, 1995–2000 Dodge Avenger and 1995–2000 Chrysler Sebring Coupe front ends. Sebring convertibles are outside that application. The entries distinguish cars with ABS from non-ABS versions and identify the factory rear-disc or rear-drum layout. Match all those details before choosing the kit. DS470 shows the radial-mount caliper installation and the rotor-hat fit on the existing hub. The new front calipers include dust seals, but their fit inside a wheel must still be checked with the drawing rather than inferred from the factory wheel size. This is a front brake package; it does not change the car’s original rear brake type.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

• Manufacturer part number: 140-8292-DR.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm.
• Rotor/hat stud-hole clearance diameters: 0.480 in; 12.19 mm; 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8293
