Wilwood Black Dynapro Dust-Seal 12.19-inch SRP Drilled/Slotted Front Brakes — Mitsubishi Eclipse / Eagle Talon / Dodge Avenger / Chrysler Sebring Coupe

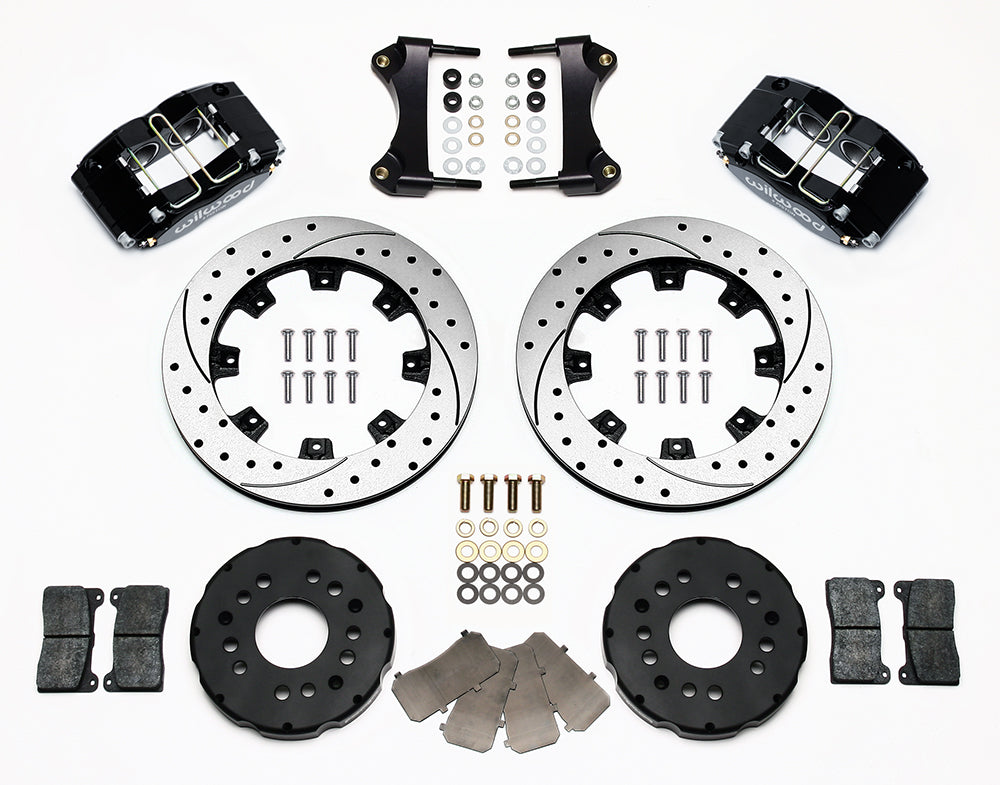

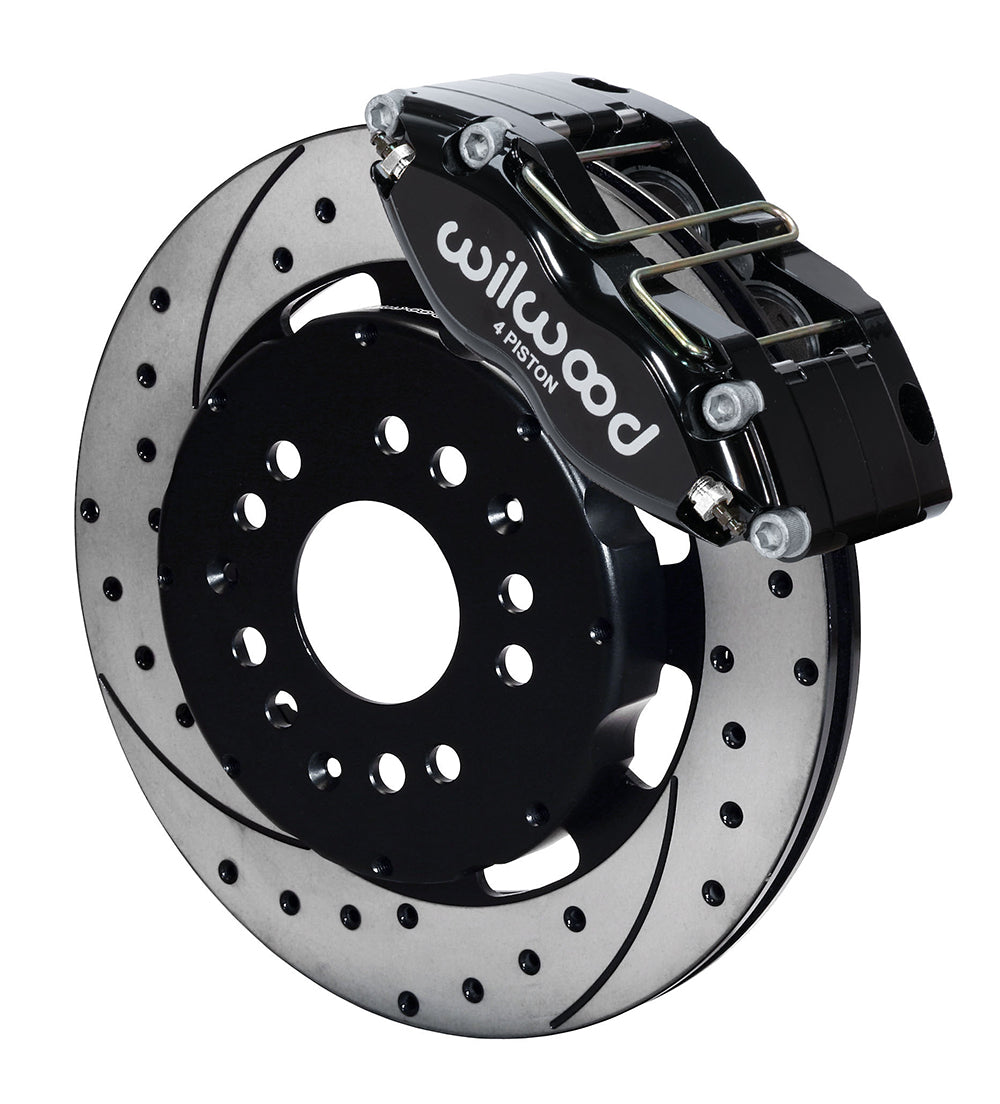

Patterned discs and black calipers make up this radial-mount front conversion for the specified coupes. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Mitsubishi Eclipse / Eagle Talon / Dodge Avenger / Chrysler Sebring Coupe. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

This package covers the listed 1995–1999 Mitsubishi Eclipse, 1995–1998 Eagle Talon, 1995–2000 Dodge Avenger and 1995–2000 Chrysler Sebring Coupe front ends. Sebring convertibles are outside that application. The entries distinguish cars with ABS from non-ABS versions and identify the factory rear-disc or rear-drum layout. Match all those details before choosing the kit. DS470 shows the radial-mount caliper installation and the rotor-hat fit on the existing hub. The new front calipers include dust seals, but their fit inside a wheel must still be checked with the drawing rather than inferred from the factory wheel size. This is a front brake package; it does not change the car’s original rear brake type.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-8292-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm.
• Rotor/hat stud-hole clearance diameters: 0.480 in; 12.19 mm; 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• Wilwood flexline kit 220-8293 is referenced separately.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8293
