Wilwood Dynapro Dust-Seal Front Kit for Mitsubishi Eclipse / Eagle Talon / Dodge Avenger / Chrysler Sebring Coupe — 12.19-inch Plain, Black

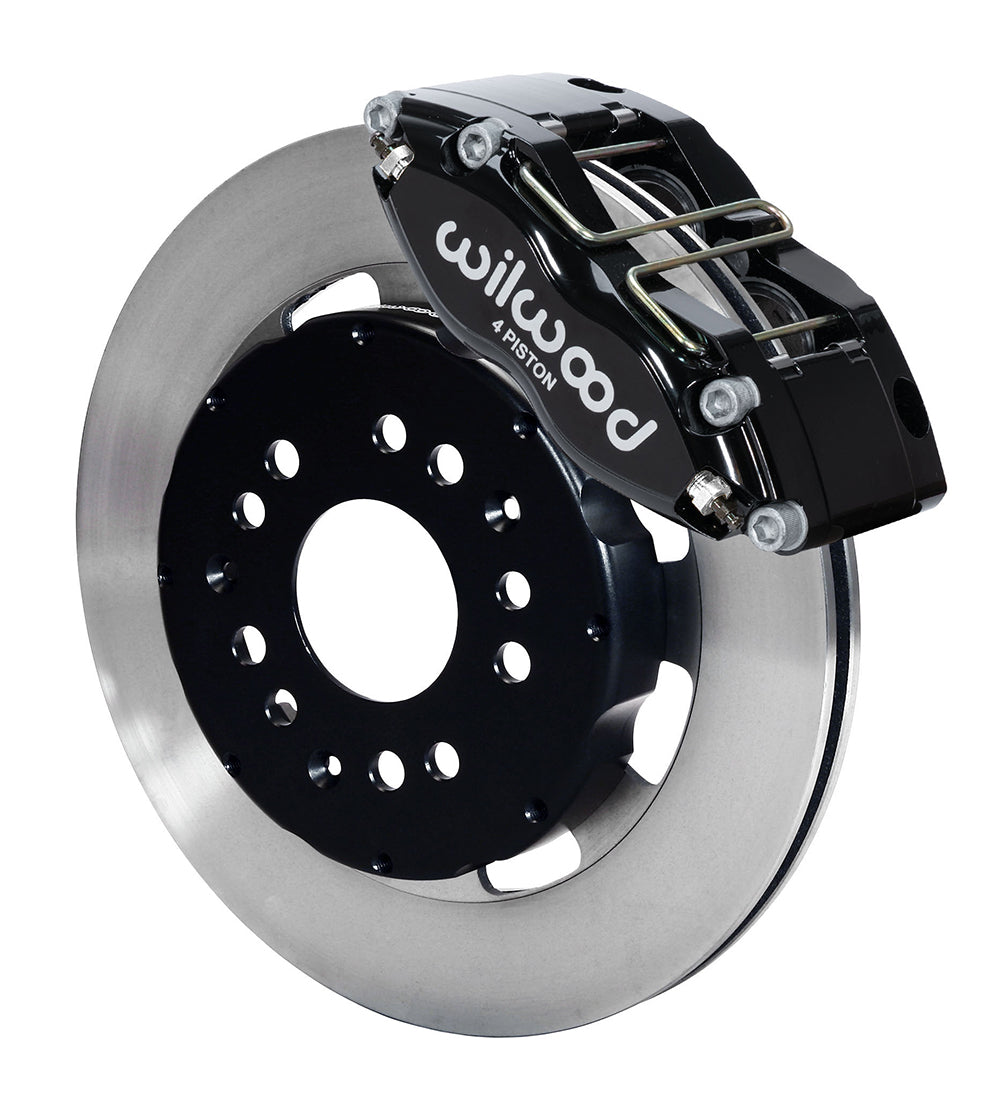

The dust-seal Dynapro package is shared by the listed Eclipse, Talon, Avenger and Sebring Coupe front ends. This Dynapro Radial dust-seal front brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.

Technical Details

• Manufacturer part number: 140-8292.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; Plain Face friction surface.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm.
• Rotor/hat stud-hole clearance diameters: 0.480 in; 12.19 mm; 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

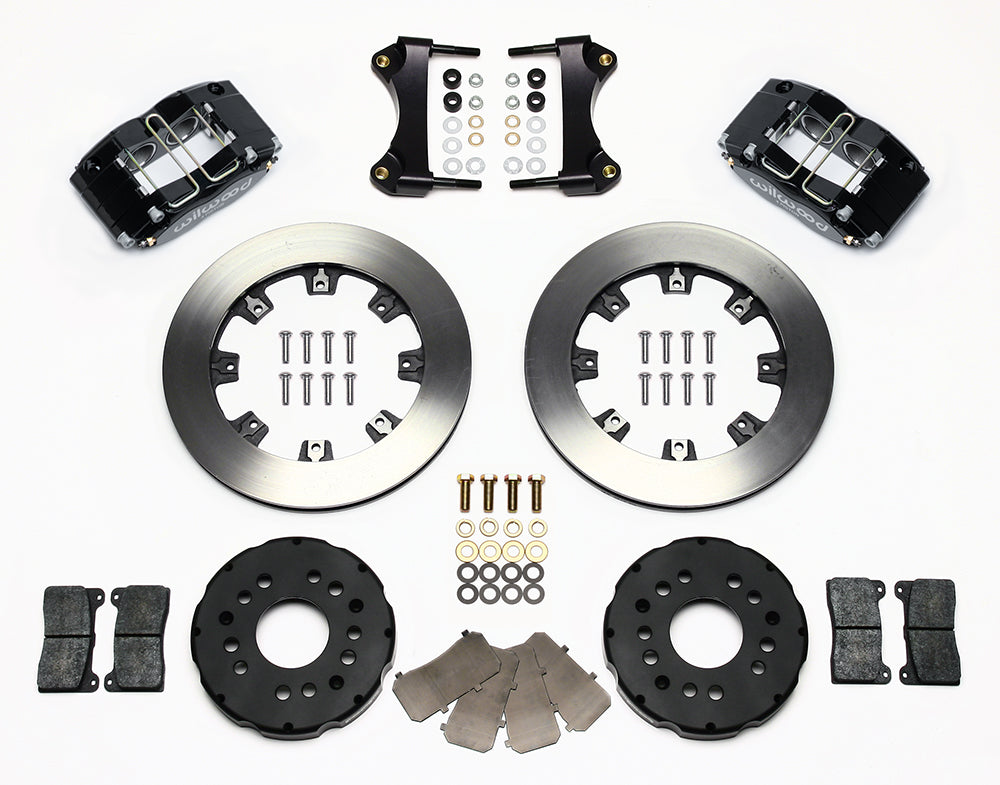

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Fitment & Compatibility

This package covers the listed 1995–1999 Mitsubishi Eclipse, 1995–1998 Eagle Talon, 1995–2000 Dodge Avenger and 1995–2000 Chrysler Sebring Coupe front ends. Sebring convertibles are outside that application. The entries distinguish cars with ABS from non-ABS versions and identify the factory rear-disc or rear-drum layout. Match all those details before choosing the kit. DS470 shows the radial-mount caliper installation and the rotor-hat fit on the existing hub. The new front calipers include dust seals, but their fit inside a wheel must still be checked with the drawing rather than inferred from the factory wheel size. This is a front brake package; it does not change the car’s original rear brake type.

The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.

Package and installation requirements

• Wilwood flexline kit 220-8293 is referenced separately.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8293
