Wilwood Selected Golf / Jetta IV 1999.5–2005, Beetle 1.8T 1999–2005 and Audi TT 1.8 2000–2006 Front Kit — Red Dynapro, 12.19-inch SRP Rotors

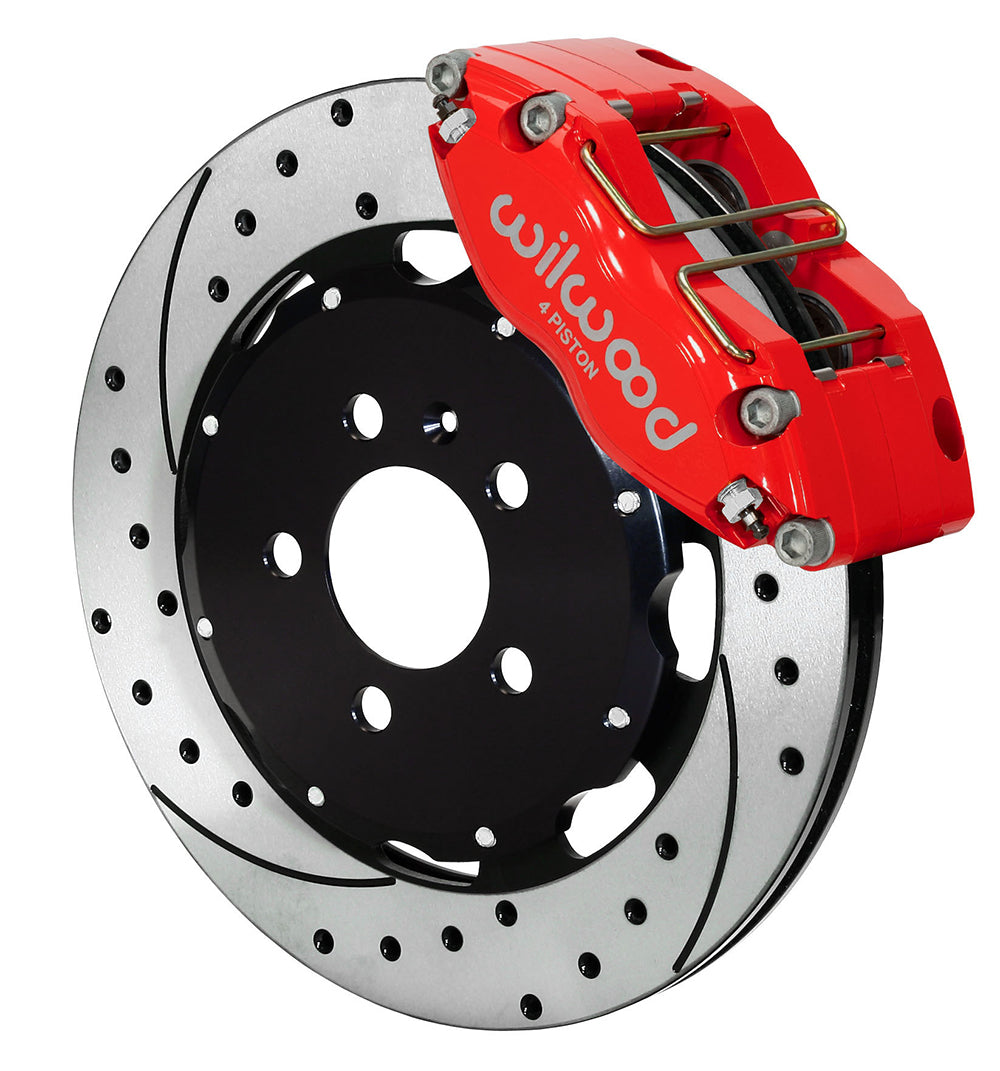

Red calipers surround the SRP discs in this engine-specific VW/Audi brake conversion. For Volkswagen Golf IV / Jetta IV / Beetle and Audi TT, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this front package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

• Front line-kit reference 220-8279 is supplied separately; confirm the exact application and routing.

Fitment & Compatibility

Engine and generation limits matter for this Volkswagen/Audi kit. Beetle coverage is 1999–2005 with the 1.8 Turbo; Audi TT entries are 2000–2006 with the 1.8-liter engine. Golf IV and Jetta IV applications are the listed VR6 and 1.8 Turbo versions within 1999.5–2005. The 1999.5 Golf row also specifies production from September 1998, so check the actual generation at that changeover. The five-lug hub remains on the vehicle: the rotor hat’s clearance drilling does not change its wheel pattern. Dust seals are part of the radial Dynapro caliper design, and DS469 identifies the mounting arrangement and wheel envelope. The larger front rotor requires a wheel-template check even when the factory wheel diameter appears sufficient. Use the complete engine and model row below to confirm compatibility.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

• Manufacturer part number: 140-8276-DR.
• Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.580 in; 14.73 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.

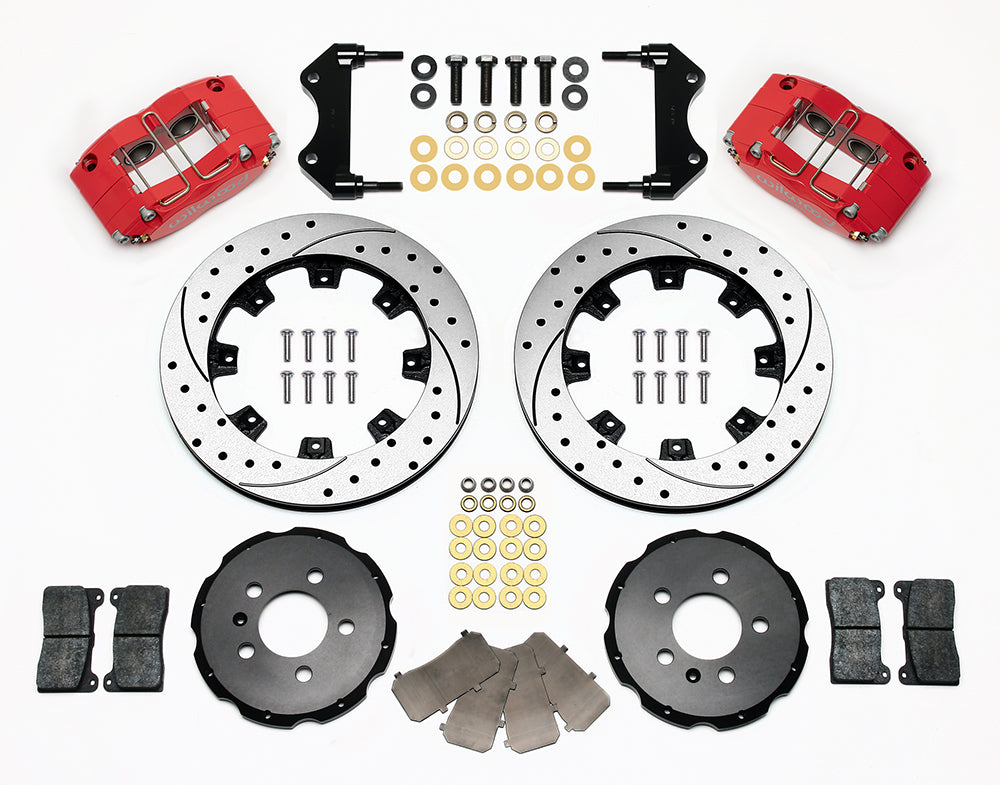

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8339
