Wilwood Black Dynapro 12.19-inch SRP Front Brakes — Audi TT 1.8 2000–2006, VW Beetle 1.8T 1999–2005 and Selected Golf / Jetta IV 1999.5–2005

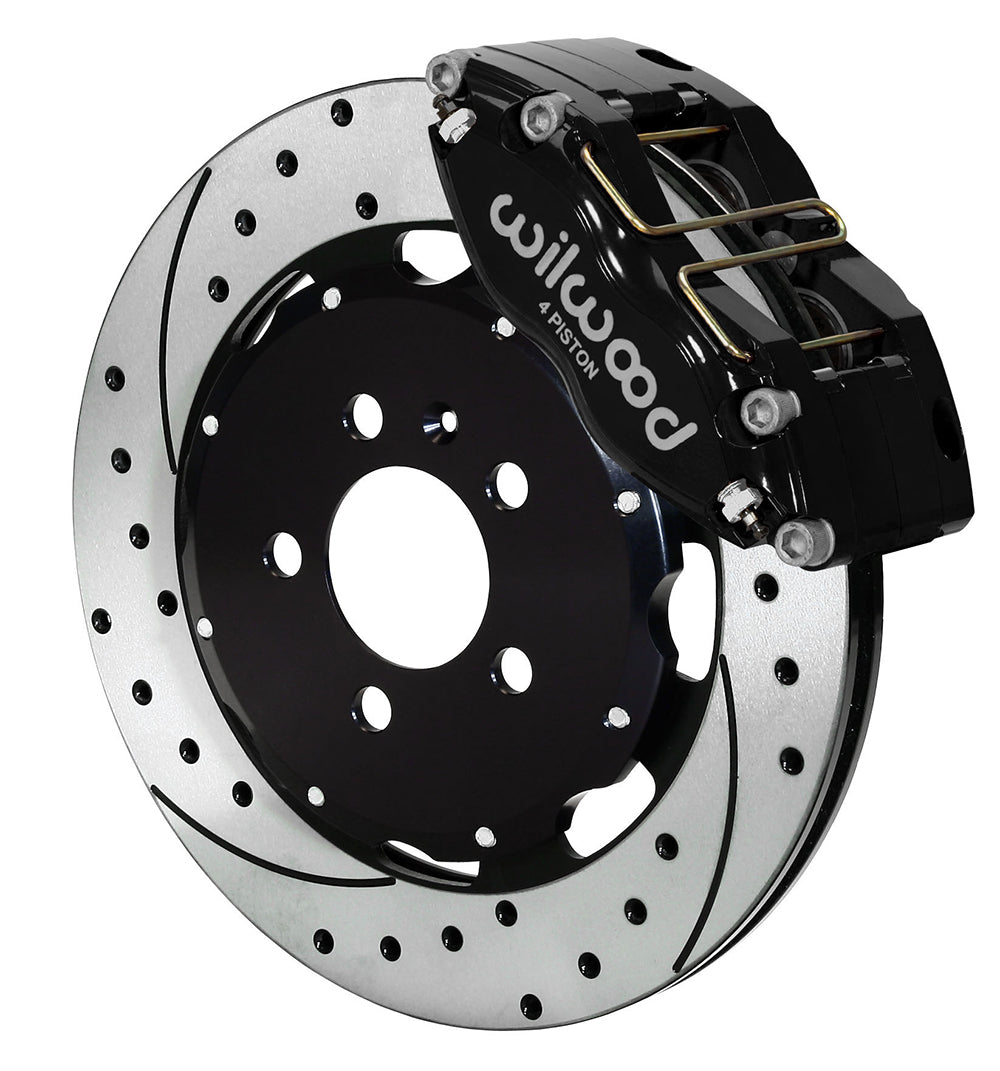

Black Dynapro calipers are combined with patterned rotors for the specified VW engines and Audi TT 1.8. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Volkswagen Golf IV / Jetta IV / Beetle and Audi TT. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

Engine and generation limits matter for this Volkswagen/Audi kit. Beetle coverage is 1999–2005 with the 1.8 Turbo; Audi TT entries are 2000–2006 with the 1.8-liter engine. Golf IV and Jetta IV applications are the listed VR6 and 1.8 Turbo versions within 1999.5–2005. The 1999.5 Golf row also specifies production from September 1998, so check the actual generation at that changeover. The five-lug hub remains on the vehicle: the rotor hat’s clearance drilling does not change its wheel pattern. Dust seals are part of the radial Dynapro caliper design, and DS469 identifies the mounting arrangement and wheel envelope. The larger front rotor requires a wheel-template check even when the factory wheel diameter appears sufficient. Use the complete engine and model row below to confirm compatibility.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-8276-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: radial mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.580 in; 14.73 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.

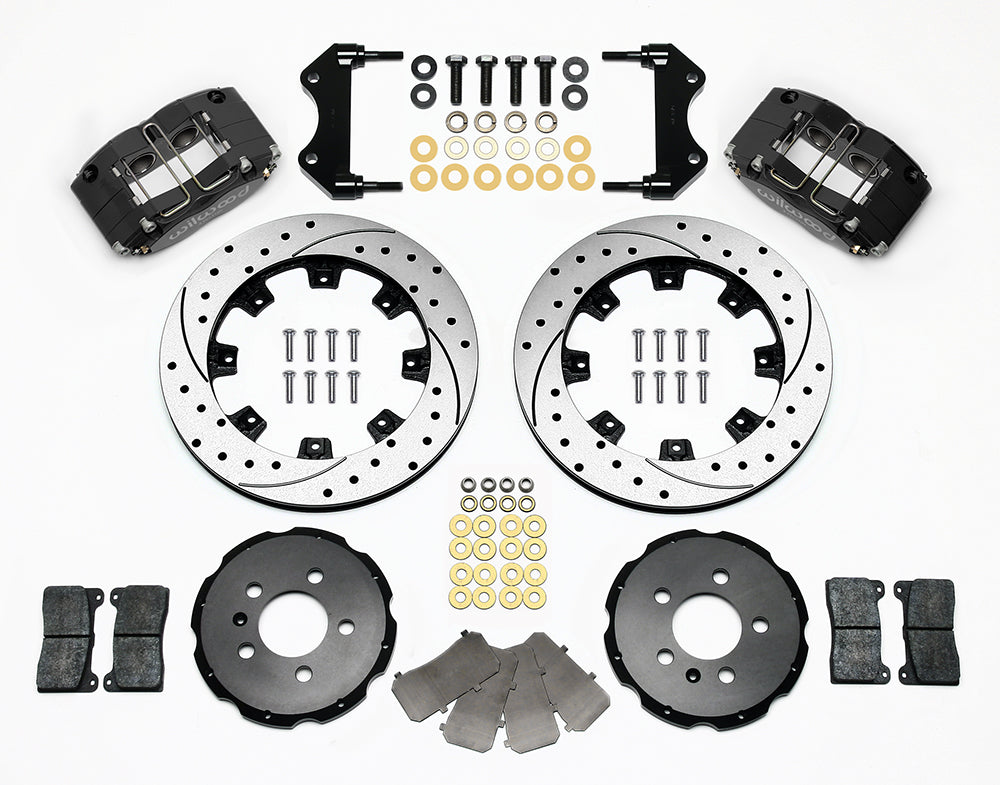

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• Front line-kit reference 220-8279 is supplied separately; confirm the exact application and routing.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-8339
