Wilwood Big Ford New-Style Plain Rear Disc Conversion — Red Calipers, 2.36-inch Offset, 12.19-inch Parking Kit

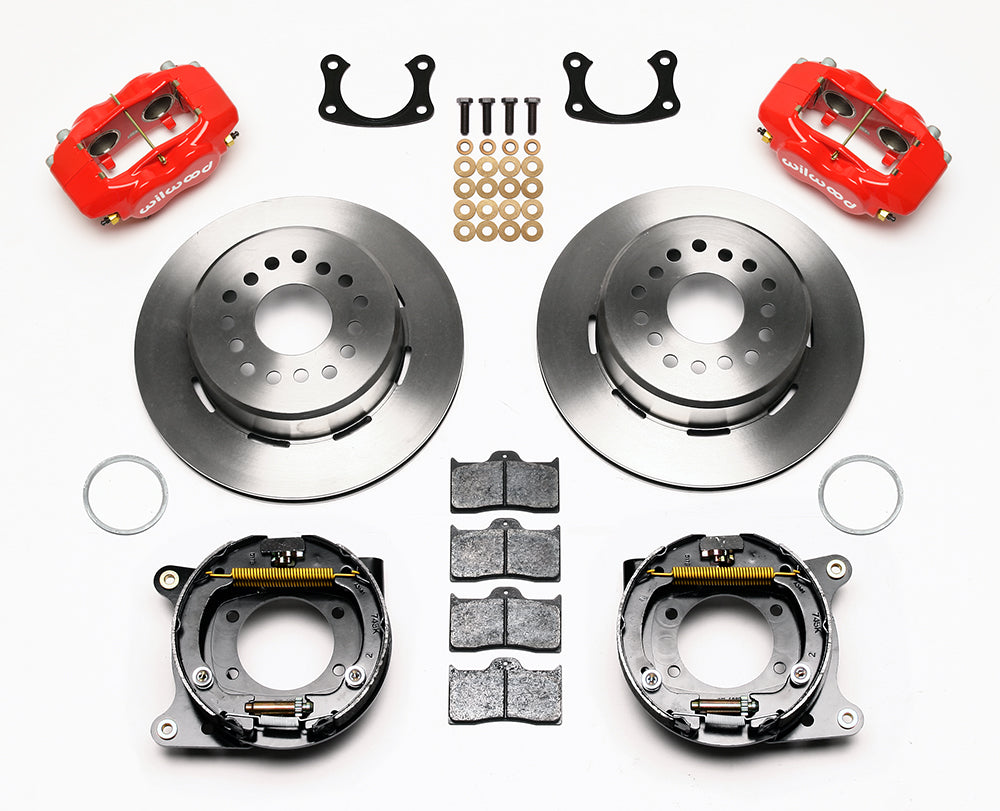

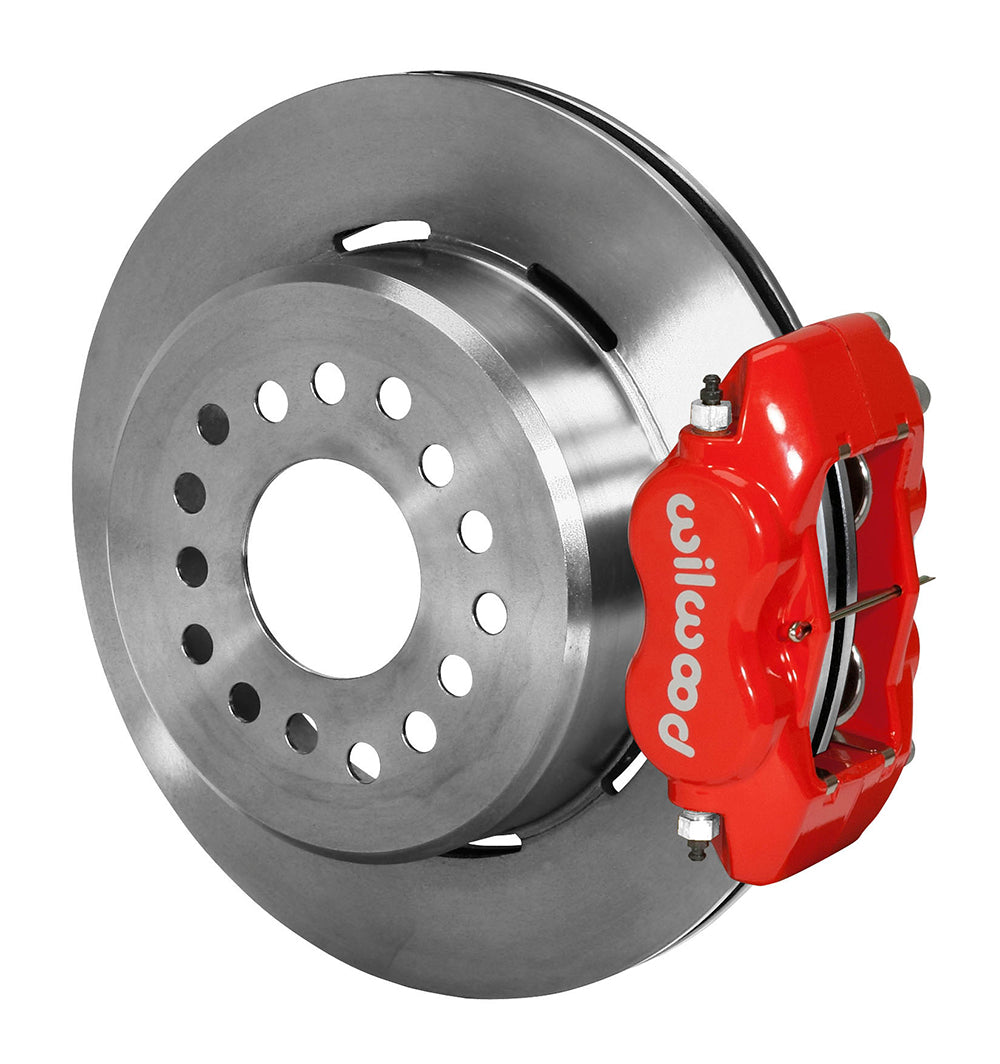

Red calipers and plain discs make up the shorter-offset new-style Ford parking-brake kit. The Forged Dynalite rear disc and parking-brake kit is supplied with red powder-coated 4-piston calipers and 12.19-inch plain-face rotors for Big Ford New Style, 2.36-inch offset. Since Bill Wood founded the company in 1977, Camarillo, California-based Wilwood Engineering has designed and manufactured disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, rotors, master cylinders, valves, fittings and brake lines; all must be matched to the intended brake system.

Package and installation requirements

• Mechanical parking is provided by shoes within the rotor’s integral drum. The 12.19-inch disc surfaces are operated by the service calipers, so cable adjustment does not replace hydraulic brake setup.
• This kit supplies no parking cable or flexline set. Wilwood identifies universal cable kit 330-9371; confirm the required routing and any installation modifications.

Technical Details

• Manufacturer part number: 140-7582-R.
• Housing/flange arrangement: Big Ford New Style.
• Axle flange offset: 2.36 in; 59.94 mm.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; Plain Face friction surface.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Rotor/hat stud-hole clearance diameters: 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.

Fitment & Compatibility

Although this package uses the Big Ford new-style/Torino flange, its required axle offset is 2.36 inches. That dimension differentiates it from the commonly encountered 2.50-inch version with a similar housing-end description. Check the actual shaft and housing combination against DS498 and the offset worksheet rather than inferring the offset from the flange name. The 1990 Lincoln Town Car row below does not override those measurements. The one-piece drum/rotor houses an internal parking-brake shoe assembly, while the four-piston caliper operates the service brake. Before fitting the system, establish how the parking cables will attach and release, select the hydraulic lines, and check the complete wheel profile. The nominal 15-inch wheel guide is not a promise that every 15-inch wheel clears.

Confirm the exact model and equipment combination in the table below, then follow its numbered installation notes.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions
• Technical bulletin

Bring your vehicle and brake-system questions to PMB Performance. With over 20 years of experience, we can help identify the measurements and installation details that determine the correct kit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
