Wilwood Red Rear Parking Brakes for Chevrolet 12-Bolt Special Ends — SRP 12.19-inch Rotors, Fixed Bearing

SKU: 140-7578-DR

$1,274.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

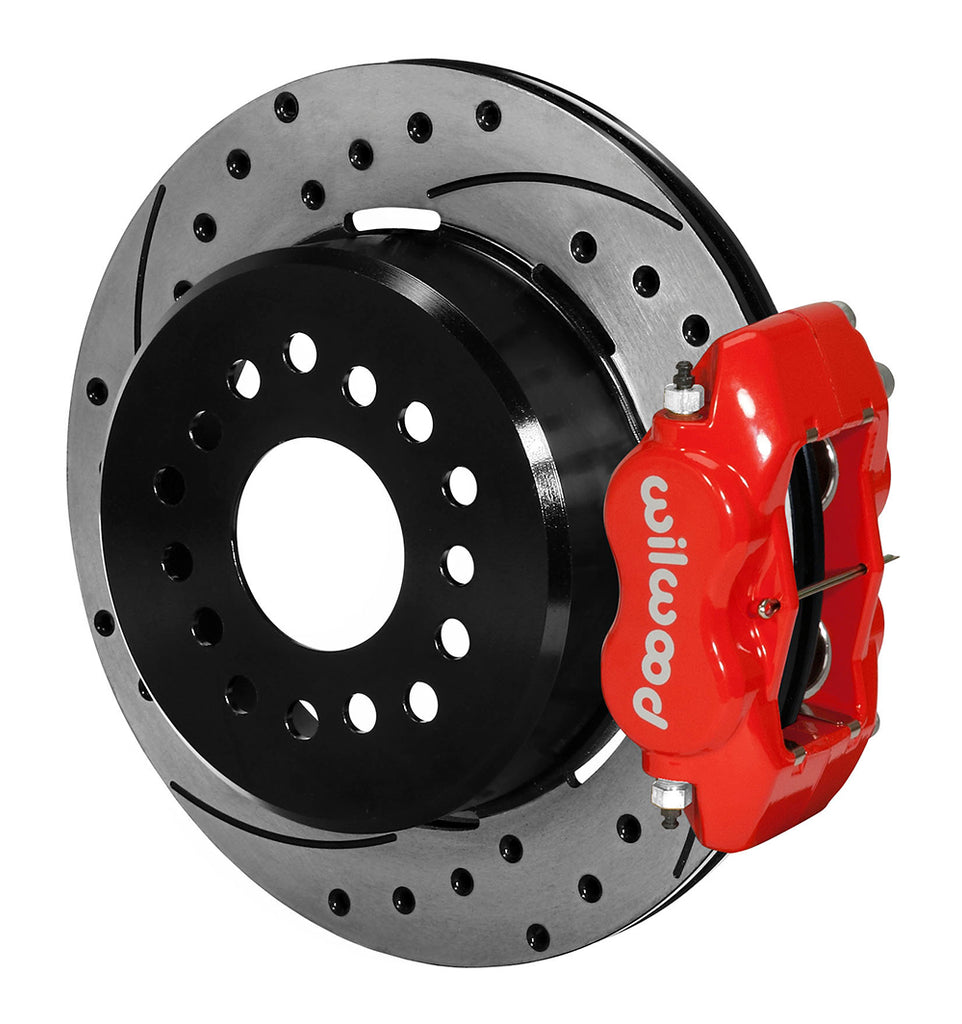

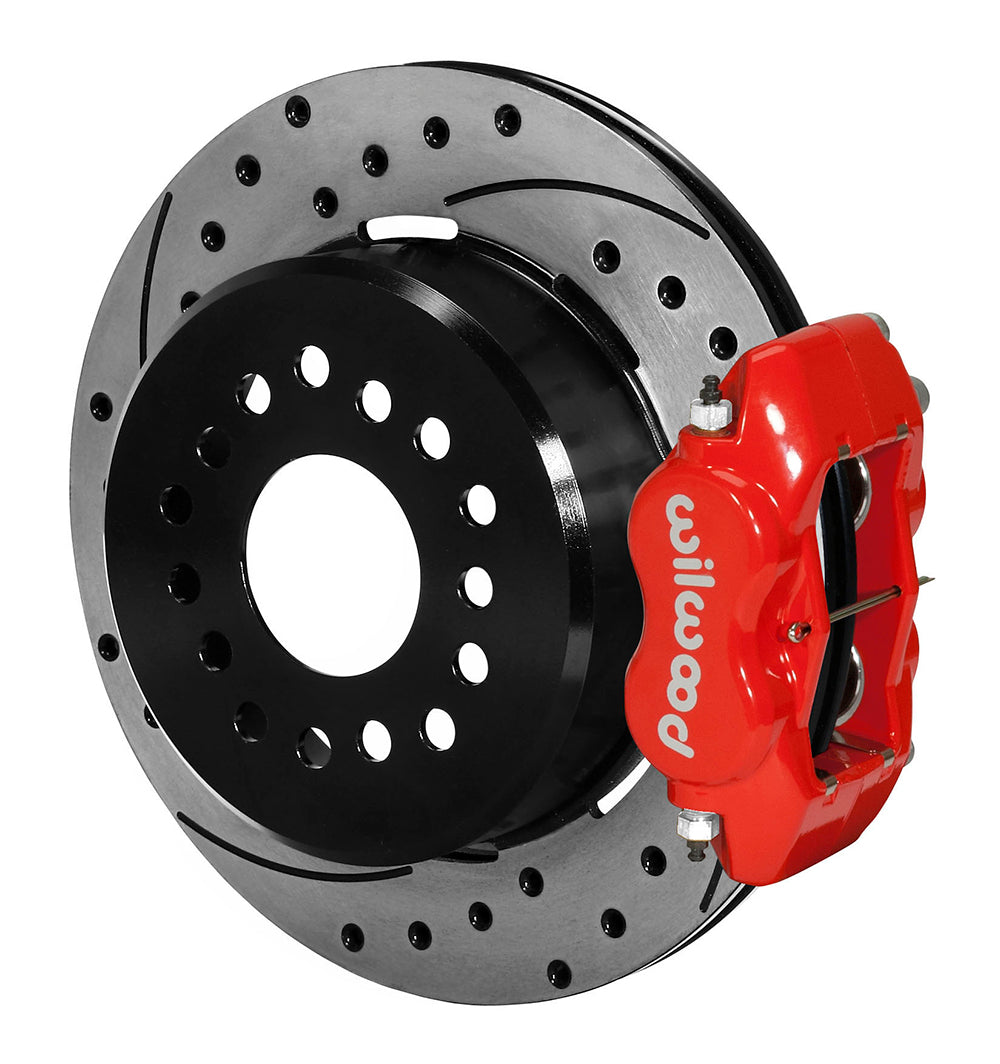

The red SRP version uses the 2.81-inch-offset fixed-bearing bracket arrangement. For Chevrolet 12-bolt Special, 3.15-inch fixed bearing, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this rear package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

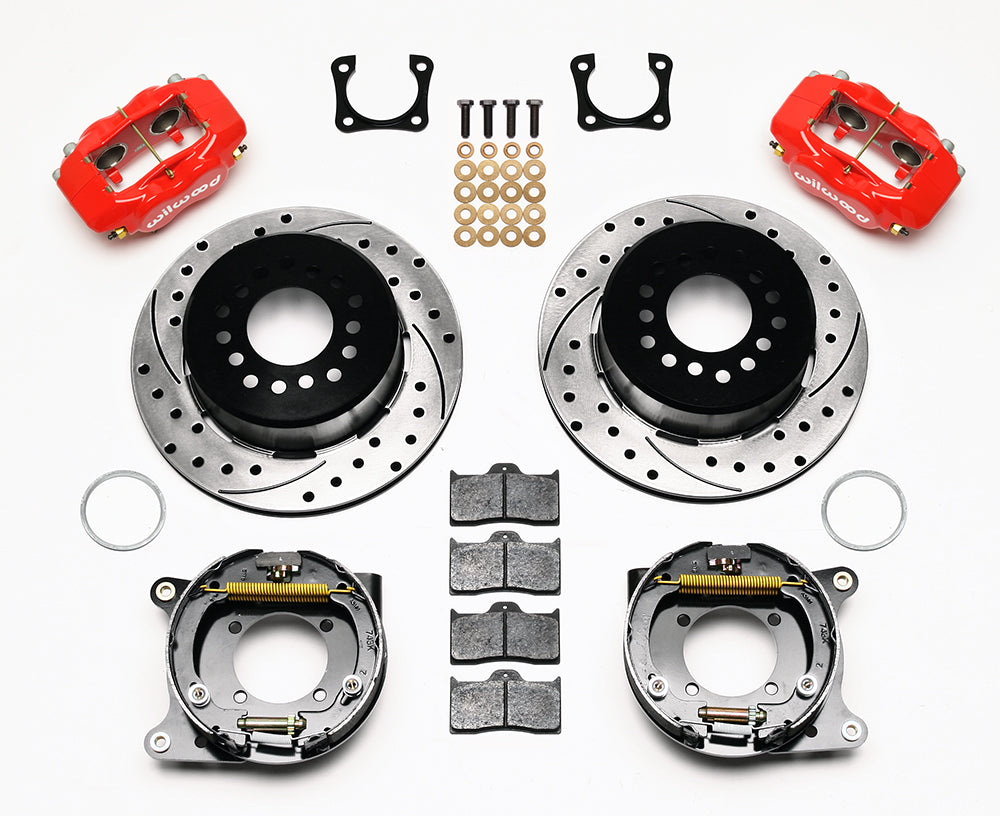

  • The fixed-bearing Special-end assembly includes internal parking shoes beneath the one-piece rear drum/rotors. Parking operation remains separate from the four-piston hydraulic service calipers.
  • Hydraulic flexlines and parking cables must be purchased independently. Check whether the universal 330-9371 cable arrangement needs alterations to connect to the vehicle.

Fitment & Compatibility

This Chevrolet 12-bolt Special package is built around a 3.15-inch fixed axle bearing and a 2.81-inch axle offset. It is distinct from Wilwood’s OE C-clip-end conversion. Verify the fixed-bearing housing-end dimensions in DS445 before interpreting any of the vehicle applications below. A modified Camaro, Chevelle or other listed GM car may have several possible rear ends, regardless of its front spindle setup. In this package the rear rotor also contains the drum for the internal parking shoes, giving the mechanical parking system its own friction surface. Complete the installation plan with cable adaptation, hydraulic lines and a wheel-template check. If the axle bearing or retaining hardware cannot be identified, obtain that information before selecting the kit.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

  • Manufacturer part number: 140-7578-DR.
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
  • Housing/flange arrangement: 12 Bolt Special.
  • Axle flange offset: 2.81 in; 71.37 mm.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Red Powder Coat.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For special end applications. Uses 3.15" fixed bearing.
  2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
  5. Line kit included (manufacturer): None
