Wilwood Polished Rear Parking-Brake Conversion for New-Style Currie Ford — Plain 12.19-inch Rotors, Blank Hats

A plain disc face and polished caliper finish accompany the new-style Currie mounting brackets. Its polished 4-piston calipers and 12.19-inch plain-face rotors are assembled around the requirements of Currie Big Ford New Style, blank wheel-pattern hats. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems in Camarillo, California. The range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component chosen to suit the complete brake system.

Fitment & Compatibility

Use the new-style Currie Big Ford housing-end arrangement and a 2.50-inch axle-offset measurement for this kit. The wheel-pattern sections of its drum/rotors are supplied blank, allowing the correct bolt circle and clearance holes to be machined for the finished axle. That machining requirement applies to both plain and SRP friction surfaces. Discuss the drilling dimensions with a qualified machine shop before ordering and check the DS430 mounting drawing against the axle. This is not the old-style Currie flange package. The listed Town Car entry remains dependent on the actual Currie rear-end hardware. The mechanical parking shoes are included, but cable choice, routing and adjustment must be completed for the vehicle; hydraulic lines are also purchased separately.

Print and use the manufacturer wheel template at its specified scale. Check the barrel, spoke shape and offset on the wheels that will actually be used.

Read the full application entry below, including the brake, spindle and numbered-note fields that apply to that vehicle.

Package and installation requirements

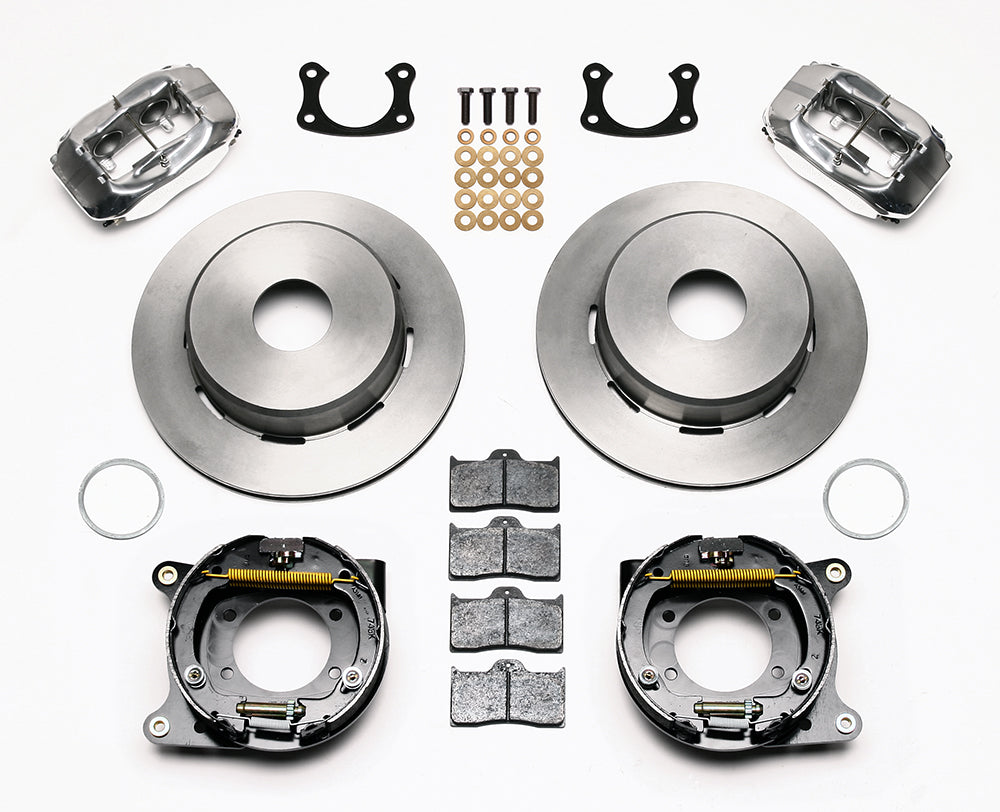

• The one-piece iron drum/rotors incorporate the parking-brake drums; the internal shoes provide a mechanical parking brake independently of the four-piston service calipers.
• Parking-brake cables and hydraulic brake lines are separate. Wilwood references universal cable kit 330-9371; installation can require cable or vehicle modifications.
• The wheel-pattern sections are supplied blank. A qualified machine shop must establish the correct wheel bolt circle and stud clearance before installation; this is separate from the plain or SRP rotor friction-surface finish.

Technical Details

• Manufacturer part number: 140-7150-P.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Polished aluminum.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

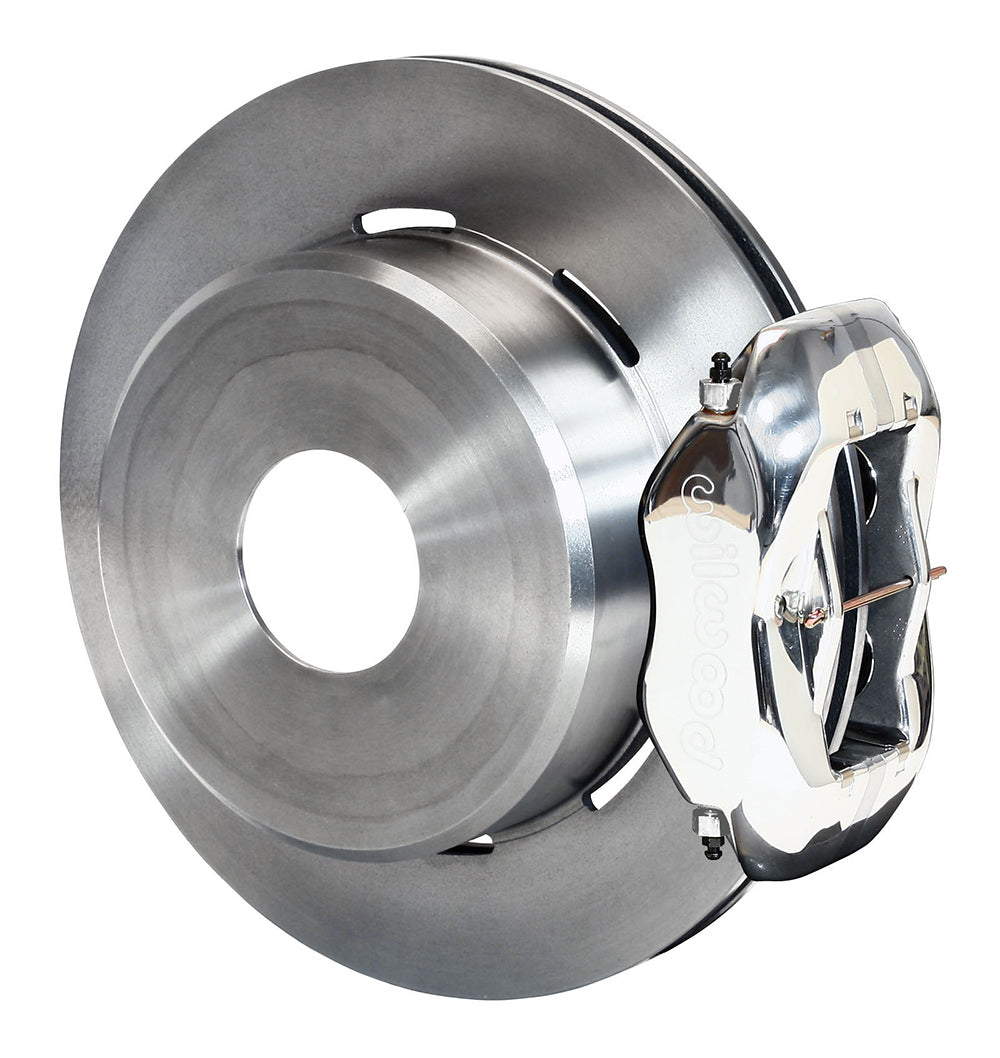

• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; Plain Face friction surface.
• Housing/flange arrangement: Big Ford New Style.
• Axle flange offset: 2.50 in; 63.5 mm.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Wheel-pattern hat sections: blank; require machining for the actual axle and wheel bolt circle.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions
• Technical bulletin

A vehicle that has already been modified needs a hardware check as well as a model-year check. PMB Performance offers over 20 years of experience to help compare the axle, spindle, wheel and brake details before you order.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Currie kits include blank hats (no wheel bolt circle).
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
3. Line kit included (manufacturer): None
