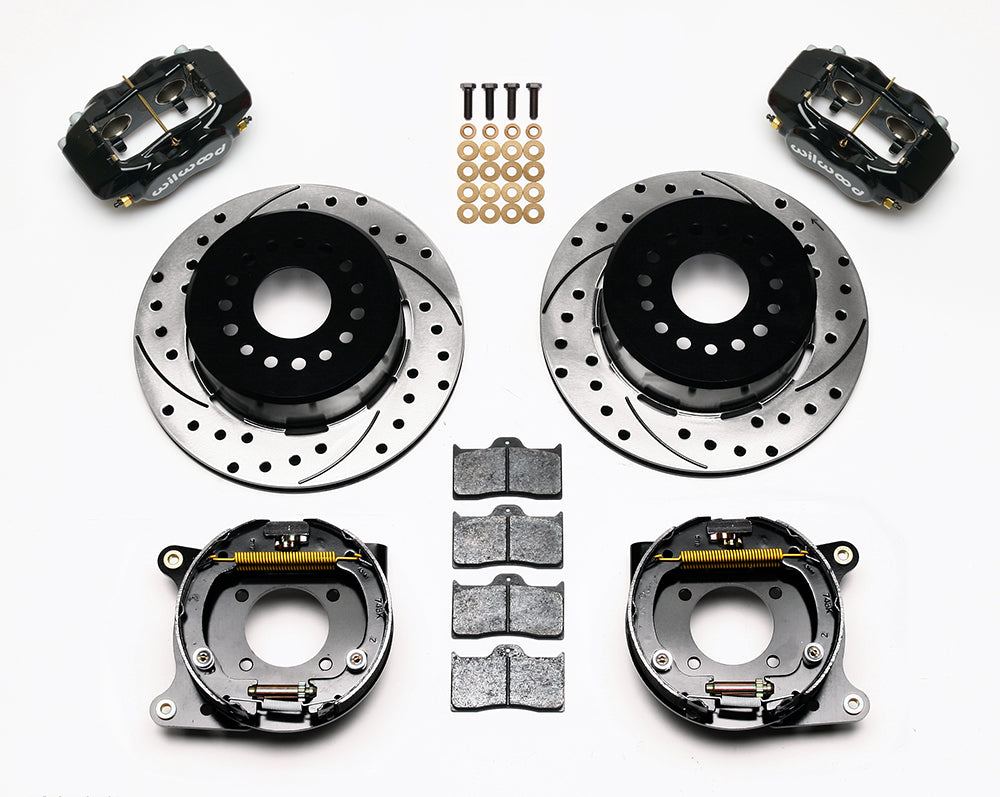

Wilwood Black SRP Rear Disc Conversion for 1993–1997 Camaro / Firebird — 12.19-inch Parking-Brake Kit components

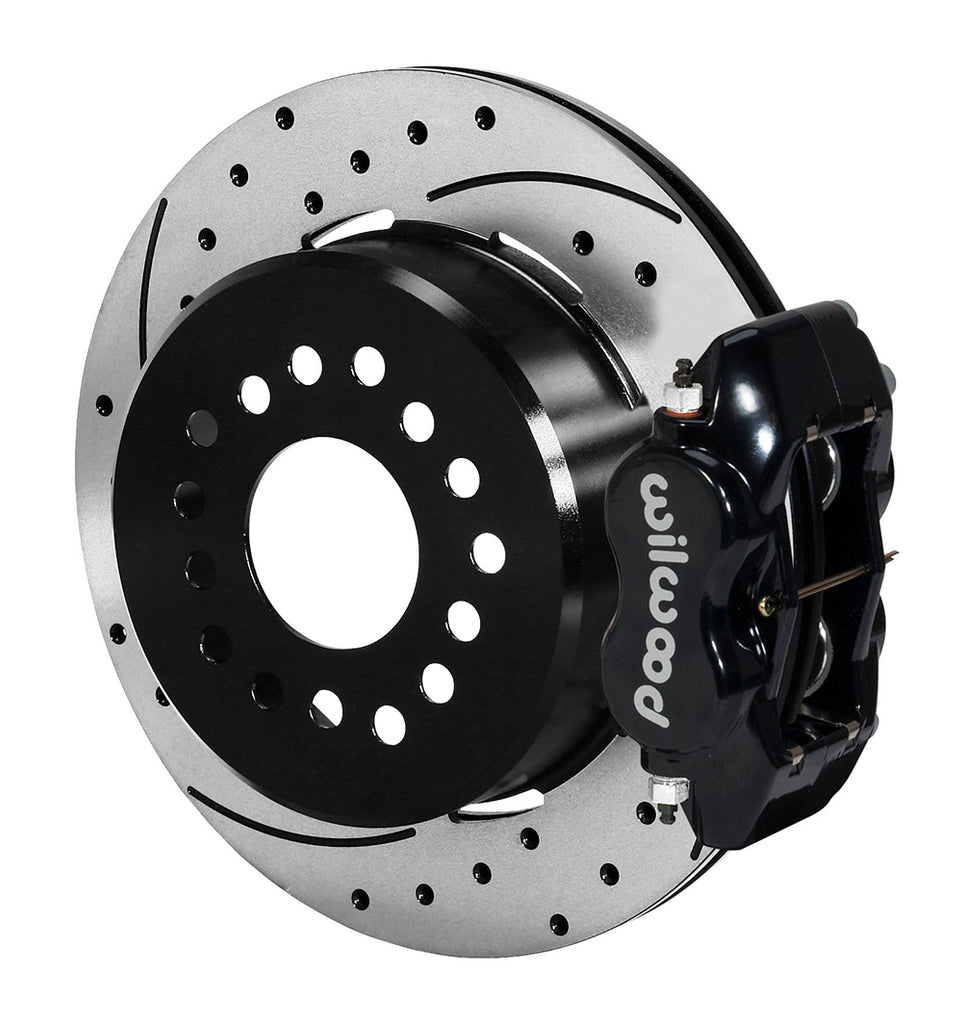

Wilwood Black SRP Rear Disc Conversion for 1993–1997 Camaro / Firebird — 12.19-inch Parking-Brake Kit components — product view 2
Wilwood Black SRP Rear Disc Conversion for 1993–1997 Camaro / Firebird — 12.19-inch Parking-Brake Kit components
Wilwood Black SRP Rear Disc Conversion for 1993–1997 Camaro / Firebird — 12.19-inch Parking-Brake Kit components — product view 2

Wilwood Black SRP Rear Disc Conversion for 1993–1997 Camaro / Firebird — 12.19-inch Parking-Brake Kit

SKU: 140-7148-D

$1,274.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The black SRP package supplies disc and parking brakes for the listed 1993–1997 F-body rear ends. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for 1993–1997 Chevrolet Camaro / Pontiac Firebird. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

The rear axle must retain the OE C-clip arrangement used on the listed 1993–1997 Camaro and Firebird applications. Special housing ends and C-clip eliminator conversions need a different mounting assessment. This kit is based on the 2.75-inch axle offset shown in DS428. Wilwood specifies hat drilling for 7/16-inch, 1/2-inch and 12 mm studs, but the actual axle still determines the wheel bolt pattern. The supplied internal parking shoes require a correctly routed and adjusted cable connection. Check the existing parking hardware when planning the installation instead of assuming it attaches unchanged. The 12.19-inch rear rotor and caliper also need template clearance inside the chosen wheel, including the spokes; the original wheel diameter alone is not a clearance guarantee.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

  • Manufacturer part number: 140-7148-D.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Black Powder Coat.
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.75 in; 5 x 120.65 mm.
  • Rotor/hat stud-hole clearance diameters: 0.45 in; 11.43 mm; 0.48 in; 12.19 mm; 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
  • Housing/flange arrangement: 12 Bolt Late.
  • Axle flange offset: 2.75 in; 69.85 mm.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

  • The one-piece iron drum/rotors incorporate the parking-brake drums; the internal shoes provide a mechanical parking brake independently of the four-piston service calipers.
  • Parking-brake cables and hydraulic brake lines are separate. Wilwood references universal cable kit 330-9371; installation can require cable or vehicle modifications.
  • Not for Special housing ends or C-clip eliminators.
  • Wilwood specifies hat drilling for 7/16-inch, 1/2-inch and 12 mm studs. The listed front/rear flexline reference is 220-6746; confirm routing and length for the installed system.

Manufacturer references

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1993-1997 Chevrolet Camaro Disc Brake Rear Disc Disc Rear Kit 1, 2, 3, 4, 5
1993-1997 Chevrolet Camaro Drum Brake Rear Disc Drum Rear Kit 1, 2, 3, 4, 5
1993-1997 Chevrolet Camaro w/ conversion to 1998-2002 F-Body spindles. Disc Rear. Disc Disc Rear Kit 1, 2, 3, 4, 5
1993-1997 Chevrolet Camaro w/ conversion to 1998-2002 F-Body spindles. Drum Rear. Disc Drum Rear Kit 1, 2, 3, 4, 5
1993-1997 Pontiac Firebird Disc Brake Rear Disc Disc Rear Kit 1, 2, 3, 4, 5
1993-1997 Pontiac Firebird Drum Brake Rear Disc Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
  2. Hats drilled for 7/16", 1/2" & 12mm studs.
  3. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  4. Line kit included (manufacturer): None
  5. Rear line-kit reference: 220-6746
