Wilwood Black Dynalite SRP Parking Kit for Small Ford Housing Ends — Rear 12.19-inch Rotors, 2.66-inch Offset

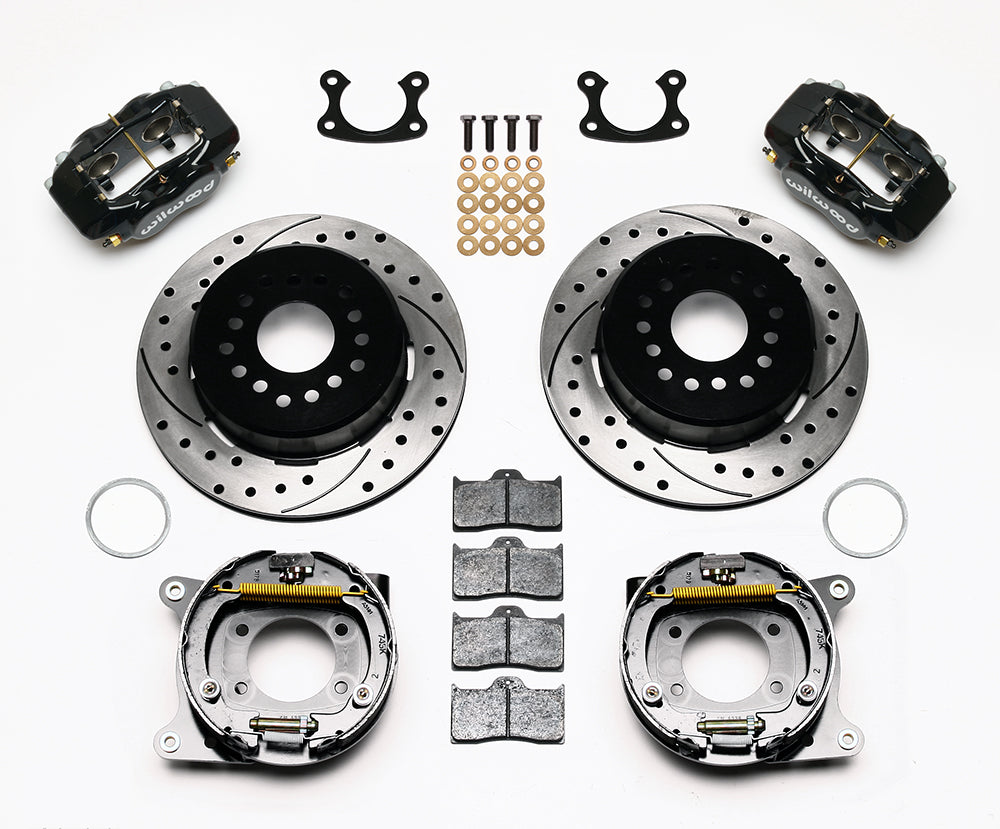

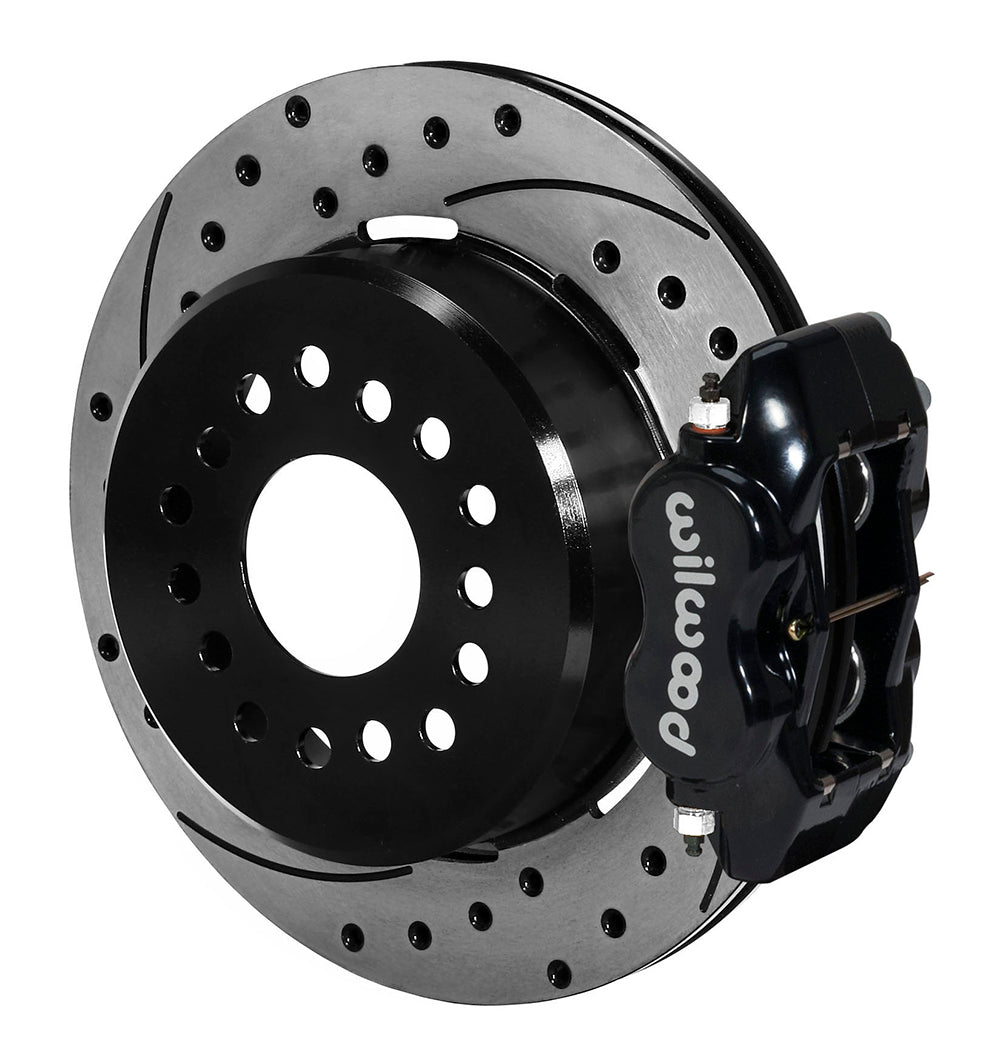

Black calipers surround SRP discs on the Small Ford rear-axle package. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Small Ford, 2.66-inch offset. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

Small Ford housing ends use this kit’s 2.66-inch axle-offset arrangement. They should not be confused with either old-style Big Ford ends or the later Torino flange. Identify the end from the mounting dimensions in DS423, then measure the installed axle offset; an axle sold as a Ford replacement may have different ends. The internal-shoe parking brake is housed within the one-piece drum/rotor rather than operated by the service caliper. Check the planned cable connection and its operation when laying out the installation. The table’s 1990 Lincoln Town Car listing is still subject to these Small Ford measurements. Finally, use the wheel template on the actual wheels: the listed nominal diameter alone does not establish clearance around the four-piston caliper.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-7143-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Rotor/hat stud-hole clearance diameters: 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Housing/flange arrangement: Small Ford.
• Axle flange offset: 2.66 in; 67.56 mm.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• One-piece vented iron rotors include an inner drum for the parking shoes. The service caliper operates the disc face; parking is provided by the separate cable-operated mechanism.
• The package needs separately selected hoses and parking cables. Wilwood’s universal 330-9371 cable reference is not a promise of installation without modification.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions
• Technical bulletin
