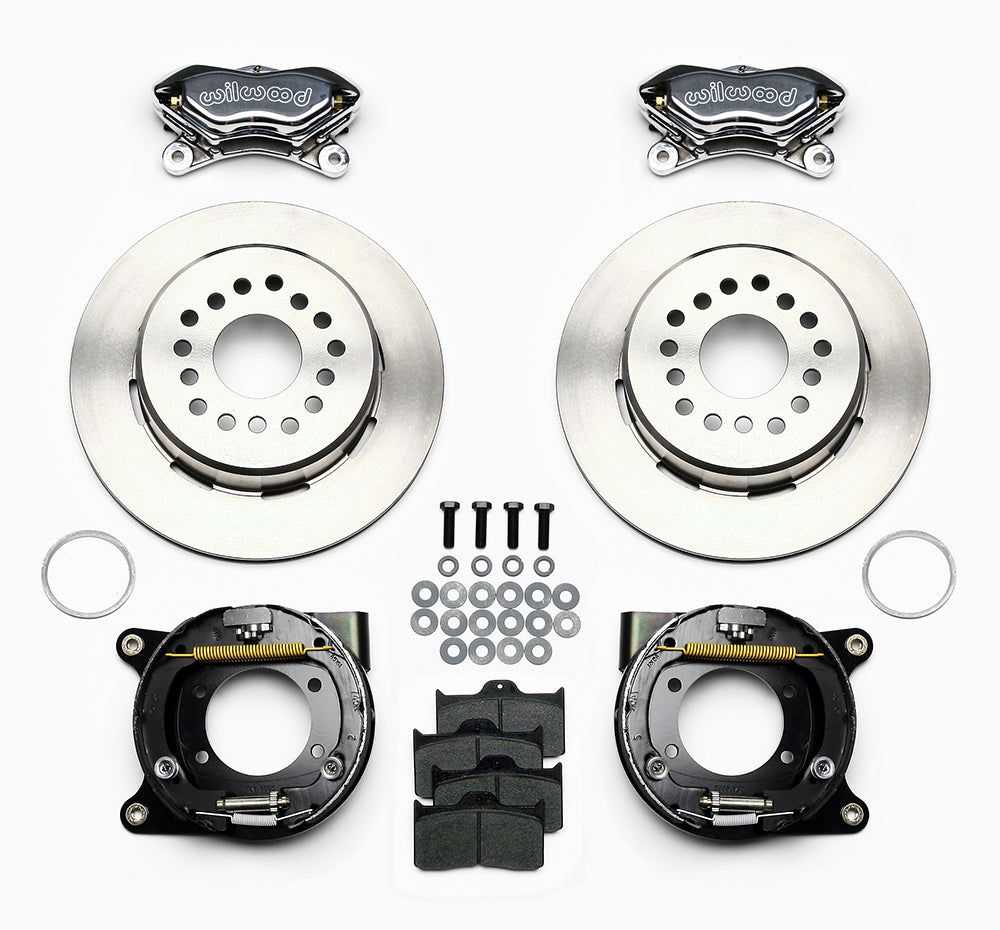

Wilwood Plain 12.19-inch Rear Parking Rotors with Polished Calipers — Chevrolet OE C-Clip Axle Kit components

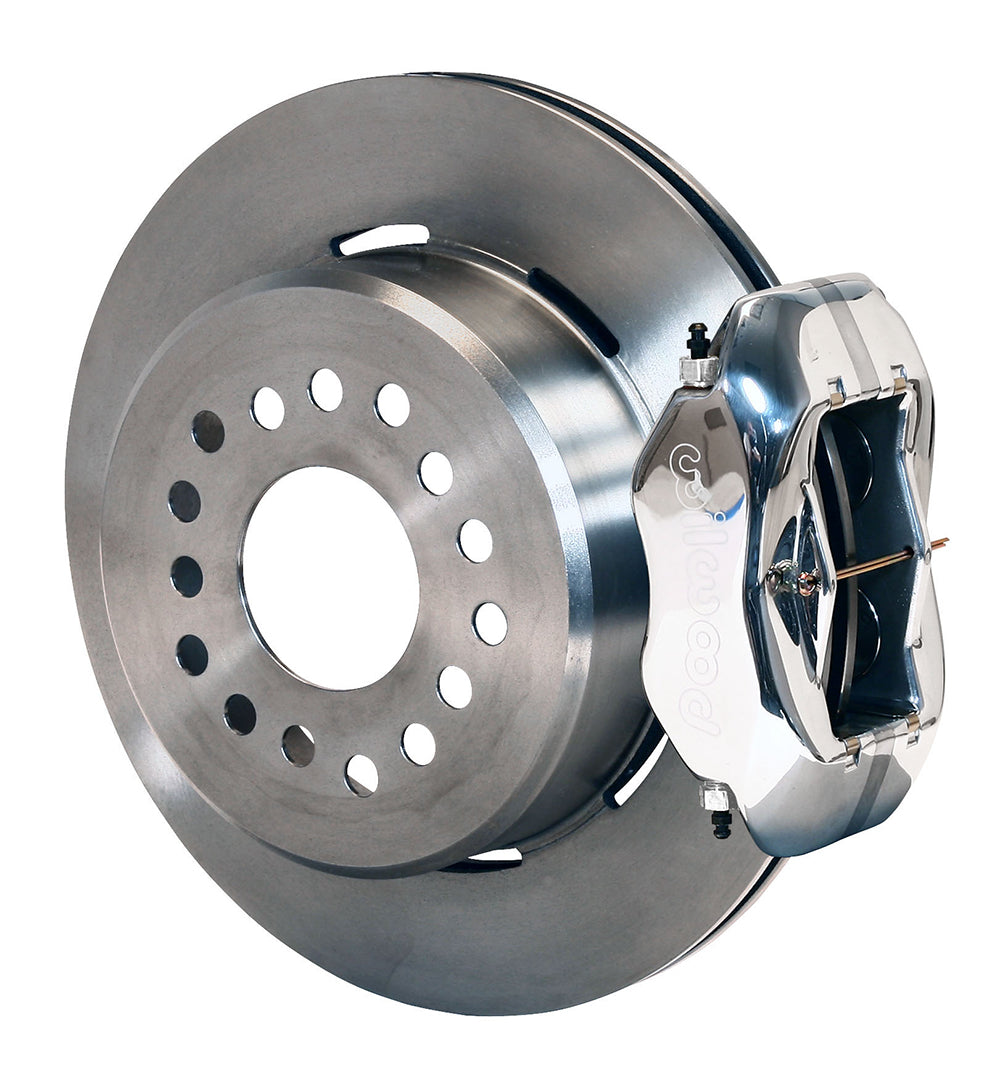

Wilwood Plain 12.19-inch Rear Parking Rotors with Polished Calipers — Chevrolet OE C-Clip Axle Kit components — product view 2
Wilwood Plain 12.19-inch Rear Parking Rotors with Polished Calipers — Chevrolet OE C-Clip Axle Kit components
Wilwood Plain 12.19-inch Rear Parking Rotors with Polished Calipers — Chevrolet OE C-Clip Axle Kit components — product view 2

Wilwood Plain 12.19-inch Rear Parking Rotors with Polished Calipers — Chevrolet OE C-Clip Axle Kit

SKU: 140-7141-P

$1,301.58 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The polished/plain-disc version is sized for the specified original Chevrolet housing ends. Its polished 4-piston calipers and 12.19-inch plain-face rotors are assembled around the requirements of Chevrolet 12-bolt OE C-clip, 2.75/2.81-inch offset. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems in Camarillo, California. The range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component chosen to suit the complete brake system.

Fitment & Compatibility

This Chevrolet package is for the original 12-bolt housing-end design with C-clip axle retention. It accepts the specified 2.75- and 2.81-inch axle-offset arrangements; it is not the fixed-bearing Special-end kit. C-clip eliminators or replacement ends change the mounting requirements and are excluded. Compare the actual end with DS421 rather than selecting from a differential-cover description. The vehicle list includes modified GM applications, but their front spindle qualifiers do not identify the rear housing. Check that rear axle independently. Installation retains the original axle-retention arrangement while adding service discs and internal parking shoes. Brake lines, parking cables, wheel clearance and the hydraulic balance of the complete vehicle must be checked as separate parts of the conversion.

Print and use the manufacturer wheel template at its specified scale. Check the barrel, spoke shape and offset on the wheels that will actually be used.

Read the full application entry below, including the brake, spindle and numbered-note fields that apply to that vehicle.

Package and installation requirements

  • The one-piece iron drum/rotors incorporate the parking-brake drums; the internal shoes provide a mechanical parking brake independently of the four-piston service calipers.
  • Parking-brake cables and hydraulic brake lines are separate. Wilwood references universal cable kit 330-9371; installation can require cable or vehicle modifications.
  • Not for Special housing ends or C-clip eliminators.

Technical Details

  • Manufacturer part number: 140-7141-P.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Polished aluminum.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; Plain Face friction surface.
  • Housing/flange arrangement: 12 Bolt.
  • Axle flange offset: 2.75 in; 69.85 mm; 2.81 in; 71.37 mm.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.

Manufacturer references

A vehicle that has already been modified needs a hardware check as well as a model-year check. PMB Performance offers over 20 years of experience to help compare the axle, spindle, wheel and brake details before you order.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
  2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
  5. Line kit included (manufacturer): None
