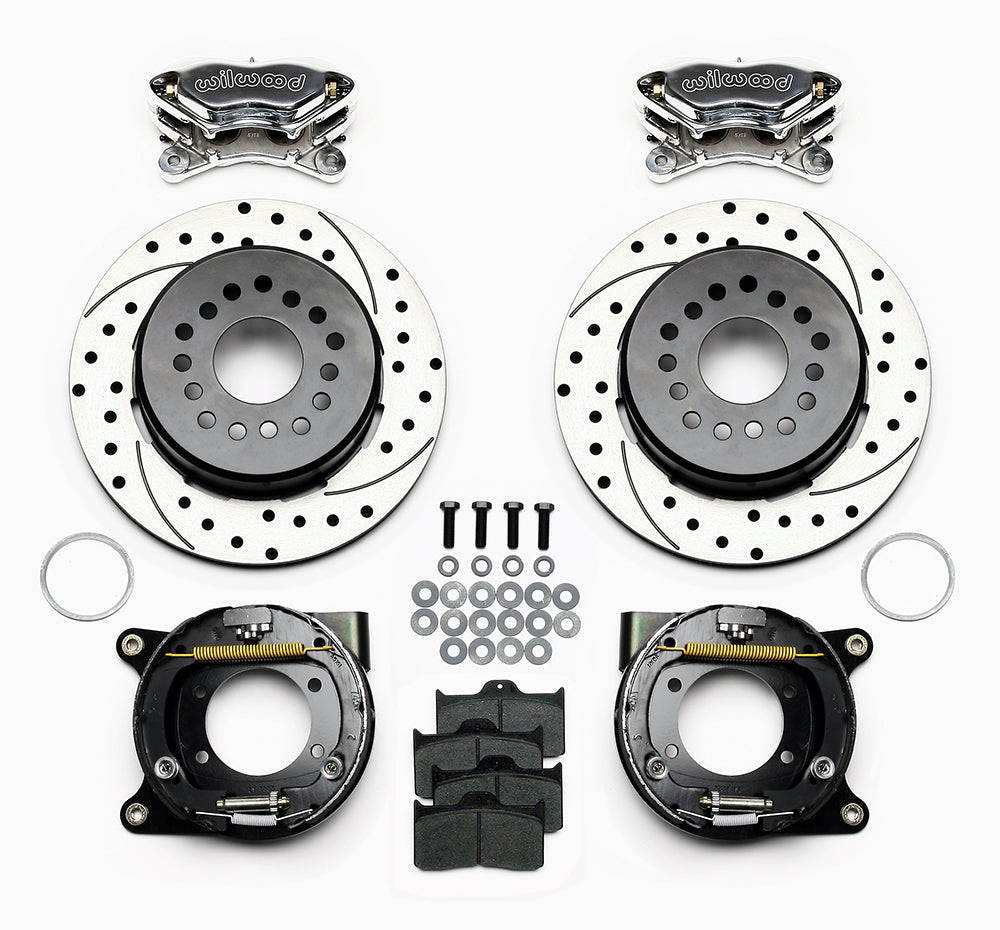

Wilwood Polished Rear Dynalite Kit — OE Chevrolet C-Clip Ends, 12.19-inch SRP Parking Rotors components

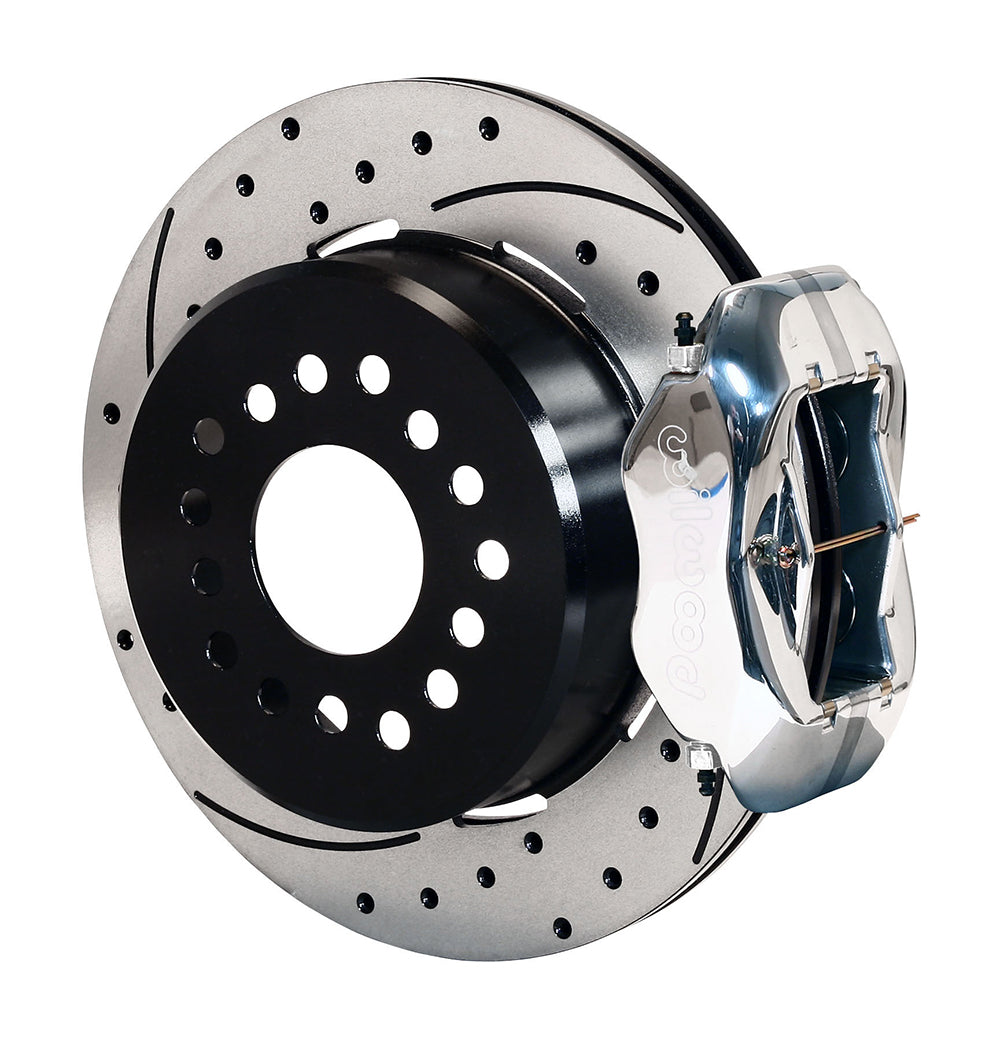

Wilwood Polished Rear Dynalite Kit — OE Chevrolet C-Clip Ends, 12.19-inch SRP Parking Rotors components — product view 2
Wilwood Polished Rear Dynalite Kit — OE Chevrolet C-Clip Ends, 12.19-inch SRP Parking Rotors components
Wilwood Polished Rear Dynalite Kit — OE Chevrolet C-Clip Ends, 12.19-inch SRP Parking Rotors components — product view 2

Wilwood Polished Rear Dynalite Kit — OE Chevrolet C-Clip Ends, 12.19-inch SRP Parking Rotors

SKU: 140-7141-DP

$1,443.89 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Polished calipers and SRP discs are paired for a retained-C-clip Chevrolet rear axle. For Chevrolet 12-bolt OE C-clip, 2.75/2.81-inch offset, Wilwood specifies polished 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this rear package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

  • The one-piece iron drum/rotors incorporate the parking-brake drums; the internal shoes provide a mechanical parking brake independently of the four-piston service calipers.
  • Parking-brake cables and hydraulic brake lines are separate. Wilwood references universal cable kit 330-9371; installation can require cable or vehicle modifications.
  • Not for Special housing ends or C-clip eliminators.

Fitment & Compatibility

This Chevrolet package is for the original 12-bolt housing-end design with C-clip axle retention. It accepts the specified 2.75- and 2.81-inch axle-offset arrangements; it is not the fixed-bearing Special-end kit. C-clip eliminators or replacement ends change the mounting requirements and are excluded. Compare the actual end with DS421 rather than selecting from a differential-cover description. The vehicle list includes modified GM applications, but their front spindle qualifiers do not identify the rear housing. Check that rear axle independently. Installation retains the original axle-retention arrangement while adding service discs and internal parking shoes. Brake lines, parking cables, wheel clearance and the hydraulic balance of the complete vehicle must be checked as separate parts of the conversion.

Before ordering, compare the wheel profile with the Wilwood clearance diagram. The stated minimum size does not establish spoke or barrel clearance for every wheel of that diameter.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

  • Manufacturer part number: 140-7141-DP.
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
  • Rotor/hat stud-hole clearance diameters: 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
  • The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
  • Housing/flange arrangement: 12 Bolt.
  • Axle flange offset: 2.75 in; 69.85 mm; 2.81 in; 71.37 mm.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Polished aluminum.
  • Sold as one kit. Mounting hardware is included. Hubs are not included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1964-1968 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Chevrolet Chevelle w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1964-1969 Pontiac Beaumont w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1967-1969 Chevrolet Camaro w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1970 Oldsmobile 442 w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5
1973-1974 Buick Apollo w/ Ridetech Pin Spindle Drop Drum Rear Kit 1, 2, 3, 4, 5

Application Notes

  1. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
  2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
  3. Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.
  4. Universal Parking Brake cable kit, may require modifications to cable or vehicle to install.
  5. Line kit included (manufacturer): None
