Wilwood Polished Rear SRP Package — Big Ford Old-Style End, 2.36-inch Offset, 12.19-inch Parking Rotors

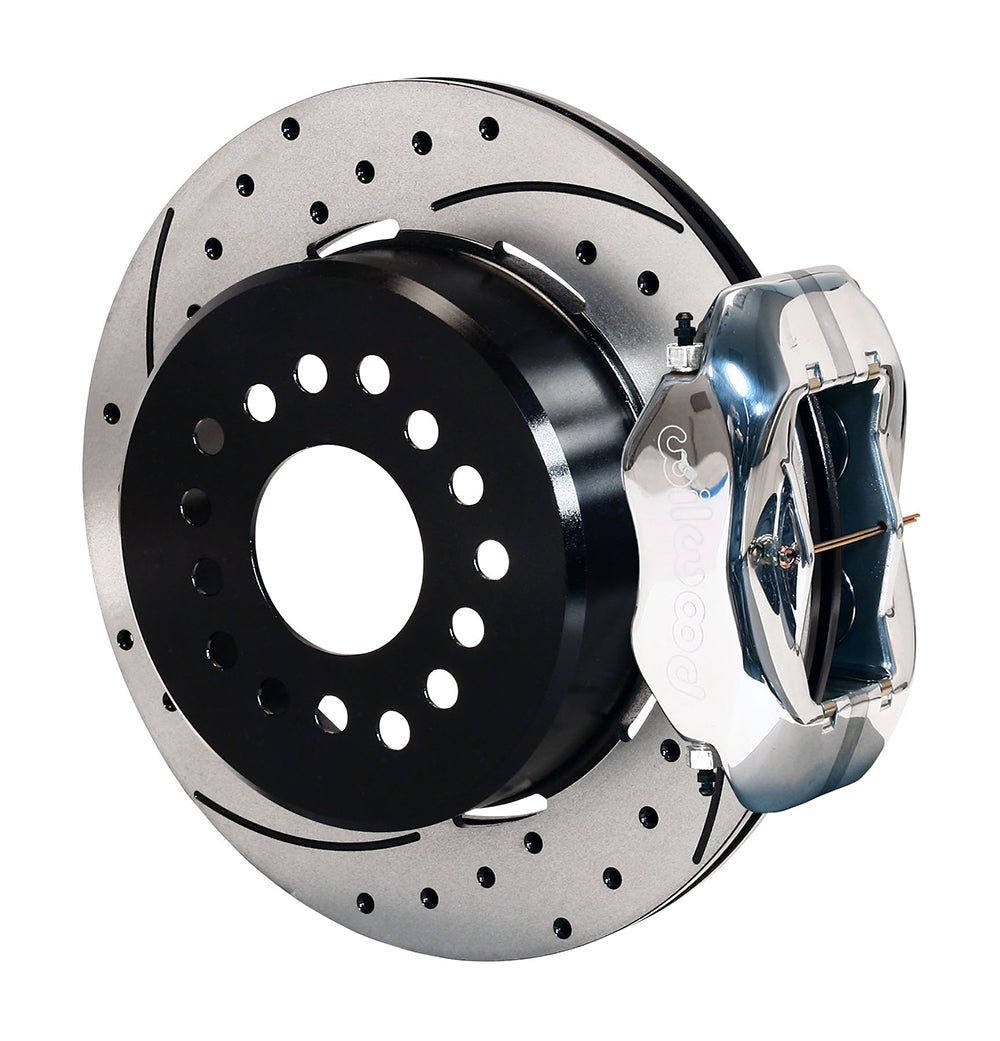

Polished calipers accompany patterned discs on this 2.36-inch-offset old-style Ford kit. For Big Ford Old Style, 2.36-inch offset, Wilwood specifies polished 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this rear package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

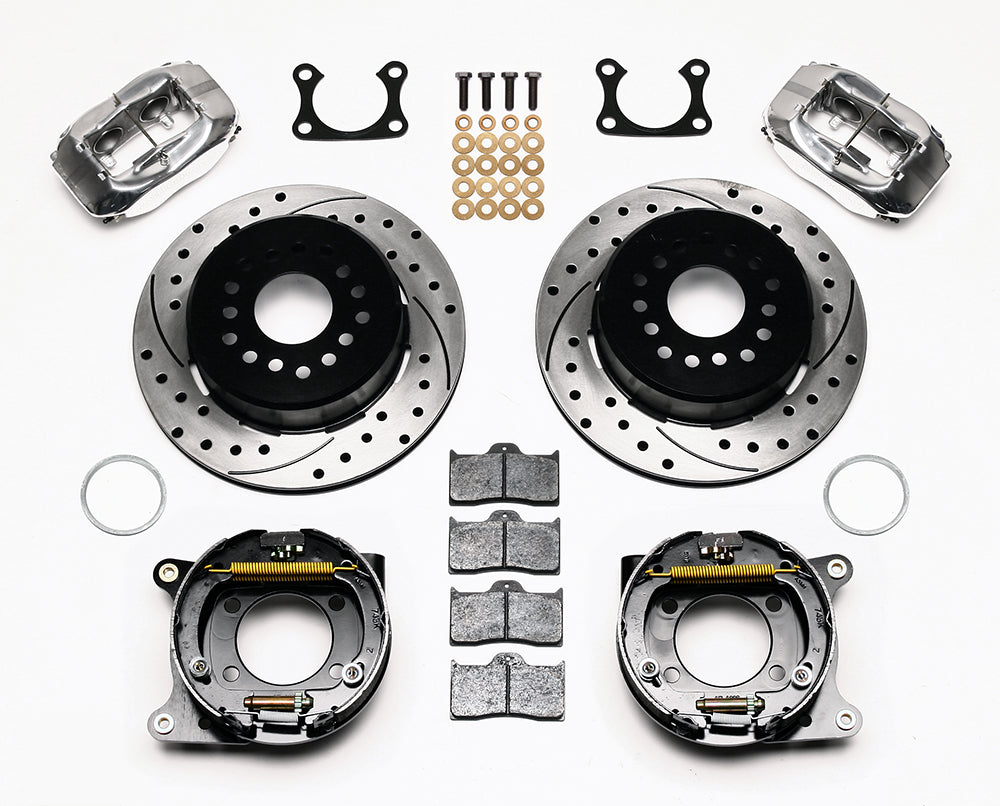

• Service braking uses the four-piston calipers. A separate set of shoes works inside the drum sections of the one-piece rotors to hold the vehicle when parked.
• Allow for hydraulic hoses and a parking-cable connection in addition to this kit. Wilwood lists universal cable assembly 330-9371, which may need vehicle or cable modifications.

Fitment & Compatibility

Choose this package by the old-style Big Ford housing end and the measured 2.36-inch axle offset. The word Ford alone is not sufficient: new-style/Torino and Small Ford ends use different bracket arrangements. Compare the mounting flange with DS419 and measure from the axle flange using Wilwood’s worksheet before dismantling the existing brakes. The application list includes a 1990 Lincoln Town Car row, but a changed axle assembly must still satisfy the specified end and offset. This conversion provides rear service discs plus an independent internal-shoe parking brake. Plan the cable connection as part of the installation; the brake kit does not include the cable assembly or hydraulic flexlines. A matching wheel bolt circle is only one check and does not establish housing compatibility.

Before ordering, compare the wheel profile with the Wilwood clearance diagram. The stated minimum size does not establish spoke or barrel clearance for every wheel of that diameter.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

• Manufacturer part number: 140-7139-DP.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Rotor/hat stud-hole clearance diameters: 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Housing/flange arrangement: Big Ford.
• Axle flange offset: 2.36 in; 59.94 mm.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Polished aluminum.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions
• Technical bulletin

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
