Wilwood Black Dynalite Rear Parking Brakes for Old-Style Big Ford — 2.36-inch Offset, 12.19-inch SRP

A black SRP brake package brings an internal-shoe parking brake to the old-style Big Ford end. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Big Ford Old Style, 2.36-inch offset. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

Choose this package by the old-style Big Ford housing end and the measured 2.36-inch axle offset. The word Ford alone is not sufficient: new-style/Torino and Small Ford ends use different bracket arrangements. Compare the mounting flange with DS419 and measure from the axle flange using Wilwood’s worksheet before dismantling the existing brakes. The application list includes a 1990 Lincoln Town Car row, but a changed axle assembly must still satisfy the specified end and offset. This conversion provides rear service discs plus an independent internal-shoe parking brake. Plan the cable connection as part of the installation; the brake kit does not include the cable assembly or hydraulic flexlines. A matching wheel bolt circle is only one check and does not establish housing compatibility.

Check the actual wheel against the manufacturer template, including the inner barrel and back of the spokes. A nominal wheel diameter by itself does not guarantee clearance.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-7139-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Rotor/hat stud-hole clearance diameters: 0.52 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Housing/flange arrangement: Big Ford.
• Axle flange offset: 2.36 in; 59.94 mm.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

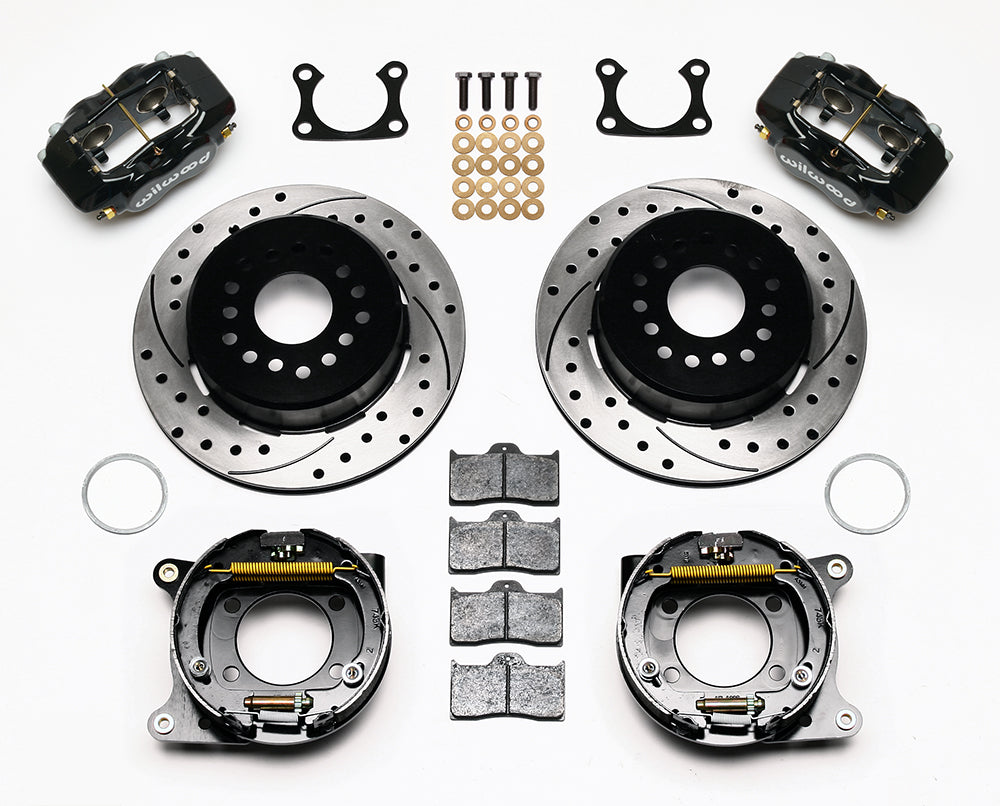

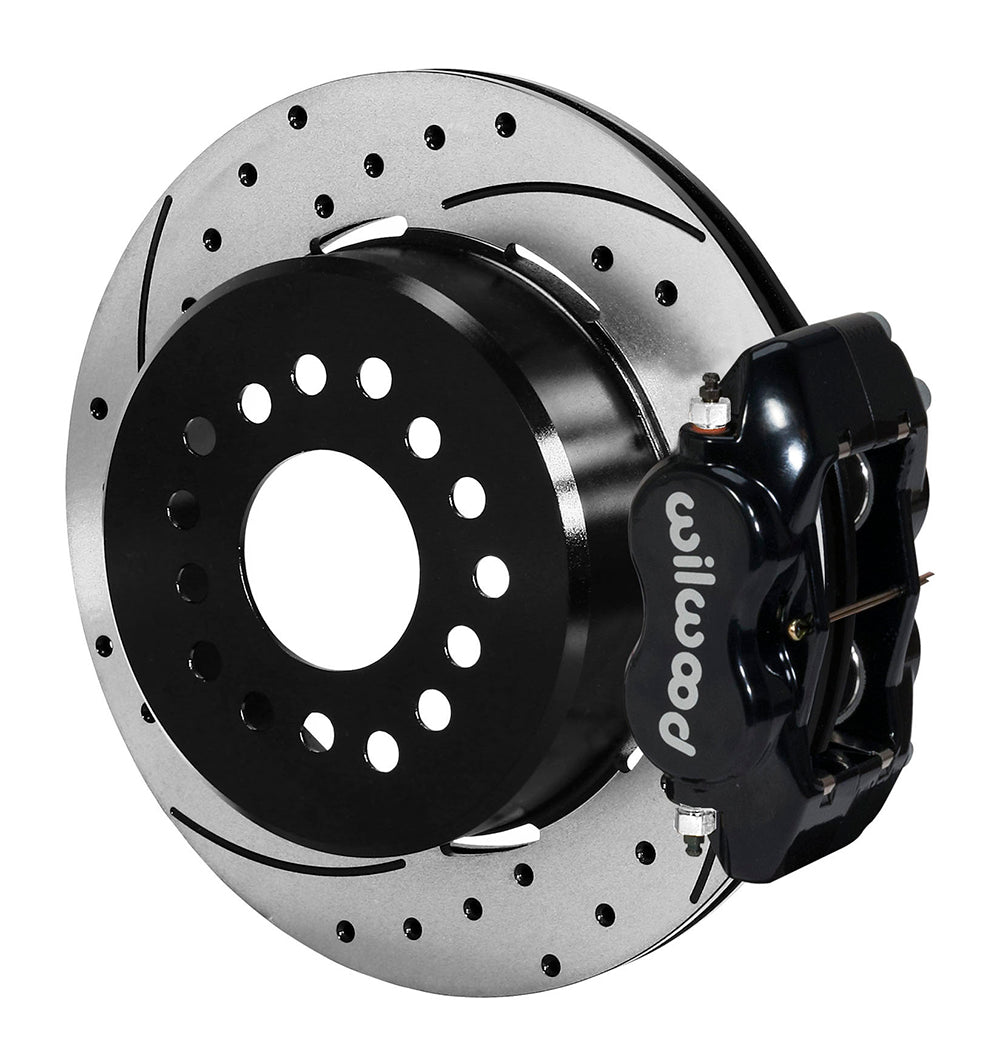

• Service braking uses the four-piston calipers. A separate set of shoes works inside the drum sections of the one-piece rotors to hold the vehicle when parked.
• Allow for hydraulic hoses and a parking-cable connection in addition to this kit. Wilwood lists universal cable assembly 330-9371, which may need vehicle or cable modifications.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions
• Technical bulletin

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
