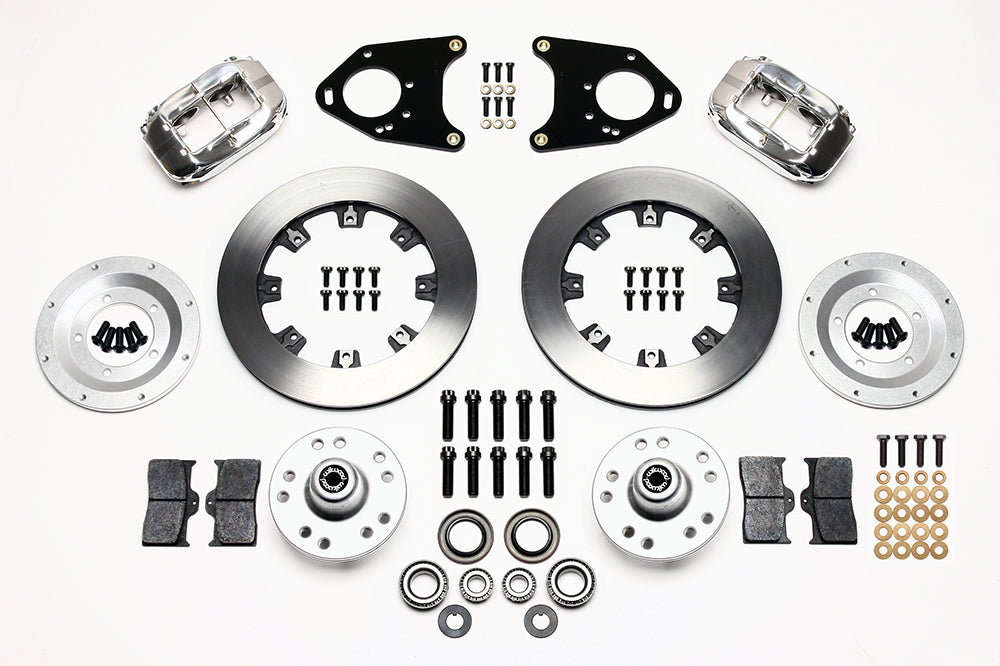

Wilwood Polished Dynalite Plain-Rotor Front Hub Conversion — 1971–1980 Pinto / 1974–1978 Mustang II, 12.19-inch components

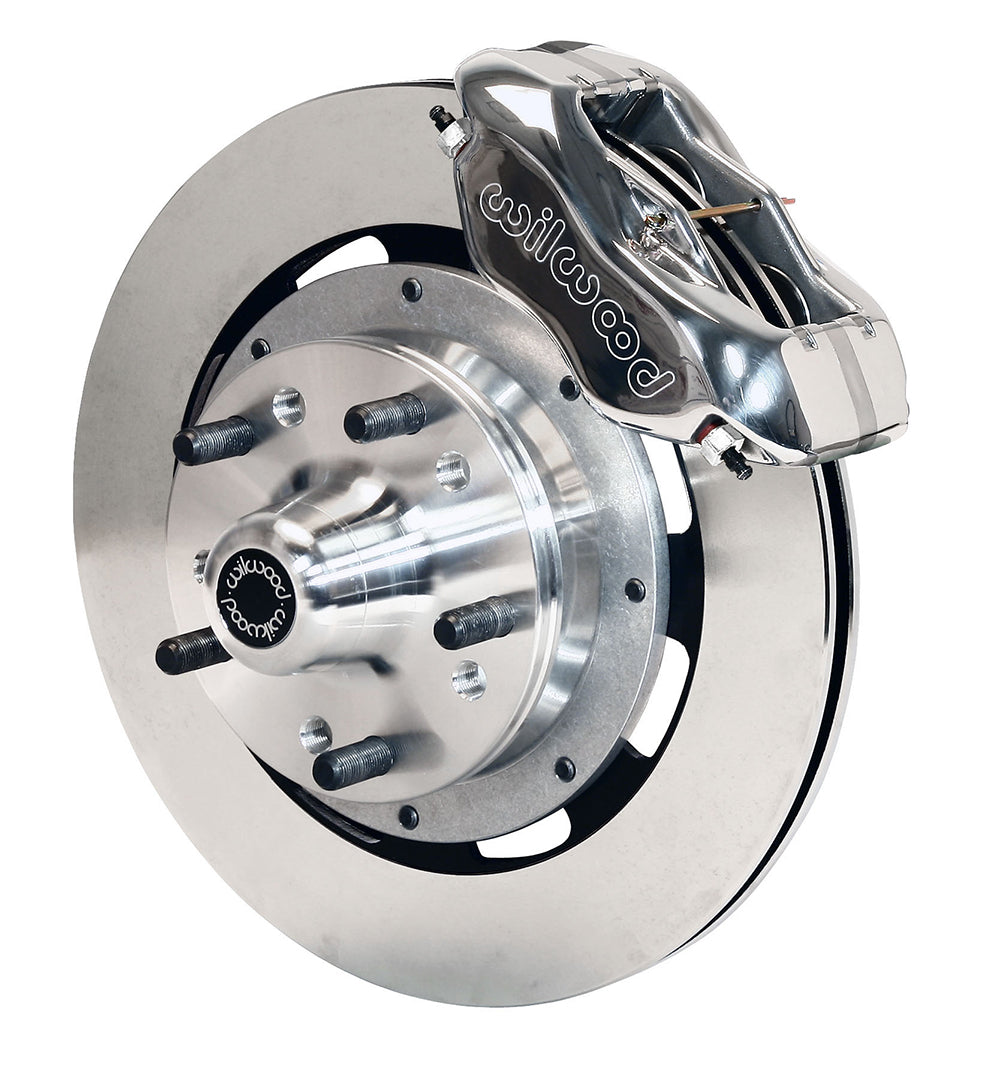

Wilwood Polished Dynalite Plain-Rotor Front Hub Conversion — 1971–1980 Pinto / 1974–1978 Mustang II, 12.19-inch components — product view 2
Wilwood Polished Dynalite Plain-Rotor Front Hub Conversion — 1971–1980 Pinto / 1974–1978 Mustang II, 12.19-inch components
Wilwood Polished Dynalite Plain-Rotor Front Hub Conversion — 1971–1980 Pinto / 1974–1978 Mustang II, 12.19-inch components — product view 2

Wilwood Polished Dynalite Plain-Rotor Front Hub Conversion — 1971–1980 Pinto / 1974–1978 Mustang II, 12.19-inch

SKU: 140-7017-P

$1,366.61 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Plain discs and polished calipers form the restrained rotor-face version of this hub package. Its polished 4-piston calipers and 12.19-inch plain-face rotors are assembled around the requirements of 1971–1980 Ford Pinto / 1974–1978 Mustang II. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems in Camarillo, California. The range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component chosen to suit the complete brake system.

Fitment & Compatibility

The instructions identify 1971–1980 Ford Pinto and 1974–1978 Ford Mustang II front spindles. This kit includes five-lug hubs; it does not retain a factory four-lug wheel pattern. Wilwood states a 0.74-inch outward wheel-location change per side. Check wheel placement and clearance before choosing wheels.

Print and use the manufacturer wheel template at its specified scale. Check the barrel, spoke shape and offset on the wheels that will actually be used.

Package and installation requirements

  • Wilwood marks this kit obsolete without identifying a replacement number on the current page. Confirm availability and the correct replacement with PMB Performance or Wilwood before ordering.
  • The 0.74-inch track-width change is per side; confirm fender, suspension and wheel clearance.
  • Wheel contact surfaces must be fully supported by the hub face. Where they overhang it, Wilwood requires its separately sold 6.60-inch-diameter x 0.20-inch steel spacer. For stamped-steel wheels that do not overhang, the instructions recommend the separate 6.15-inch-diameter x 0.09-inch hub shield. Verify the exact wheel with the installation instructions.

Technical Details

  • Manufacturer part number: 140-7017-P.
  • Calipers: 4 pistons; forged aluminum; stainless steel pistons.
  • Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
  • Caliper finish: Polished aluminum.
  • Sold as one kit. Mounting hardware is included. Replacement hubs are included.
  • Brake pads are included; use the compound and installation instructions specified for this rotor package.
  • Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
  • Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
  • Rotor construction: Iron; vented; Plain Face friction surface.
  • Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
  • Supplied hub wheel bolt circles: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
  • Included wheel stud thread: 1/2-20.

Manufacturer references

A vehicle that has already been modified needs a hardware check as well as a model-year check. PMB Performance offers over 20 years of experience to help compare the axle, spindle, wheel and brake details before you order.
