Product details

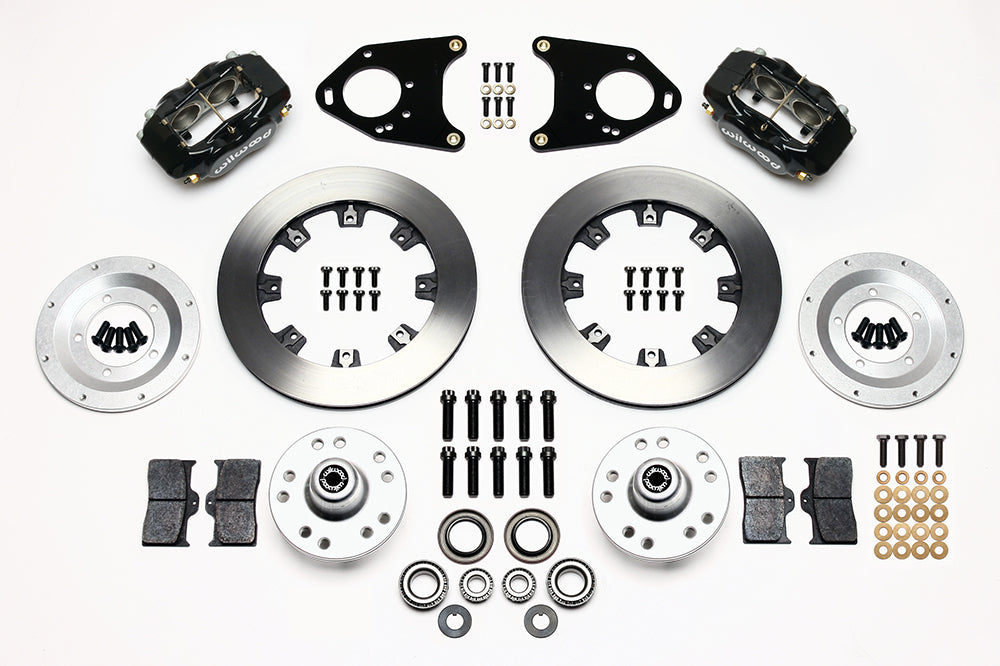

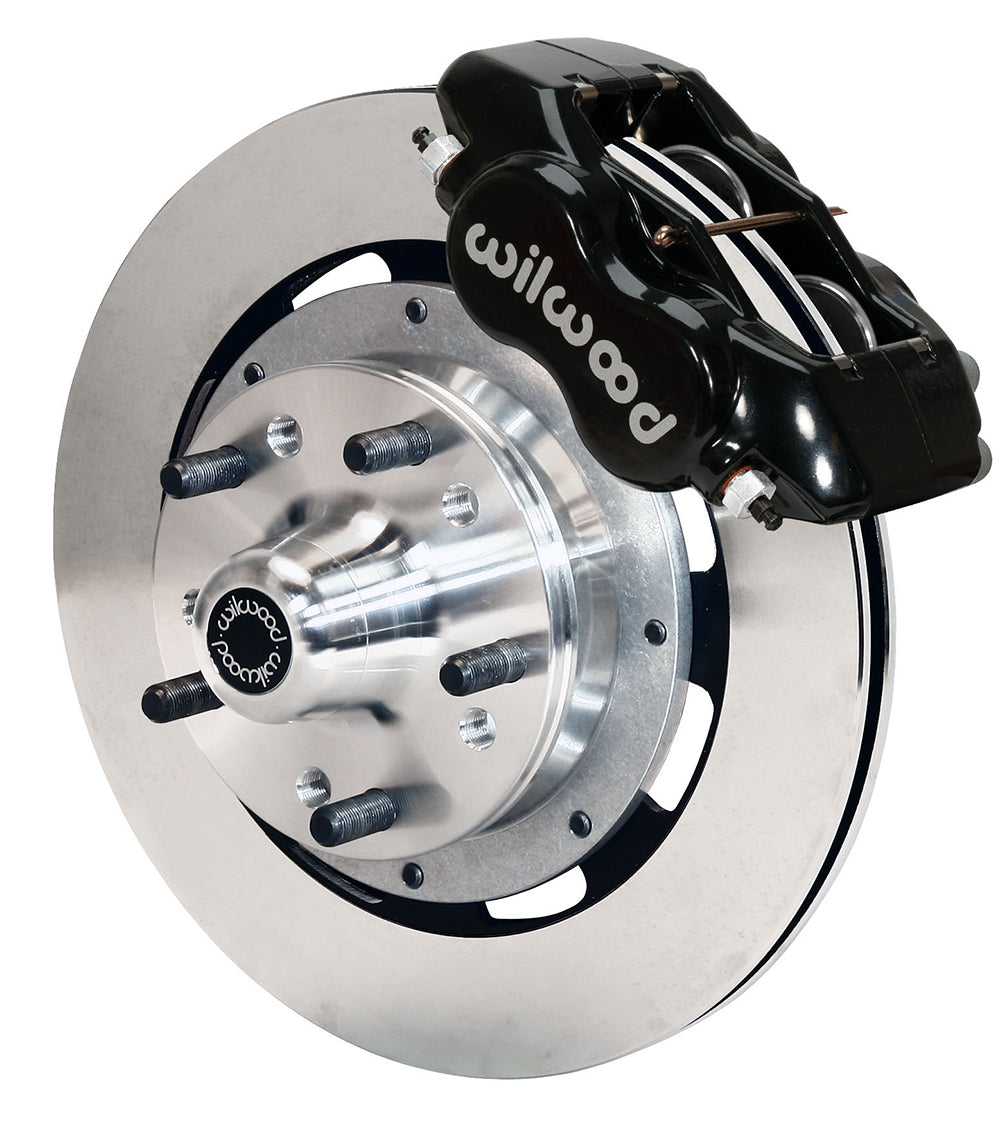

Five-lug hubs make this Pinto and Mustang II kit a brake and wheel-mounting conversion. This Forged Dynalite front hub brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.
Technical Details
- Manufacturer part number: 140-7017-B.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; Plain Face friction surface.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Black Powder Coat.
- Supplied hub wheel bolt circles: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
- Included wheel stud thread: 1/2-20.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
- Sold as one kit. Mounting hardware is included. Replacement hubs are included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
Fitment & Compatibility
The instructions identify 1971–1980 Ford Pinto and 1974–1978 Ford Mustang II front spindles. This kit includes five-lug hubs; it does not retain a factory four-lug wheel pattern. Wilwood states a 0.74-inch outward wheel-location change per side. Check wheel placement and clearance before choosing wheels.
Use the wheel-clearance drawing in the installation instructions before purchase. The catalog minimum diameter is a guide; barrel shape, spoke clearance and wheel offset still determine fit.
Package and installation requirements
- Wilwood marks this kit obsolete without identifying a replacement number on the current page. Confirm availability and the correct replacement with PMB Performance or Wilwood before ordering.
- The 0.74-inch track-width change is per side; confirm fender, suspension and wheel clearance.
- Wheel contact surfaces must be fully supported by the hub face. Where they overhang it, Wilwood requires its separately sold 6.60-inch-diameter x 0.20-inch steel spacer. For stamped-steel wheels that do not overhang, the instructions recommend the separate 6.15-inch-diameter x 0.09-inch hub shield. Verify the exact wheel with the installation instructions.
Manufacturer references
PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.
