Wilwood 12.19-inch Plain Dynalite Front Kit, Red — Mitsubishi Lancer, four-lug applications

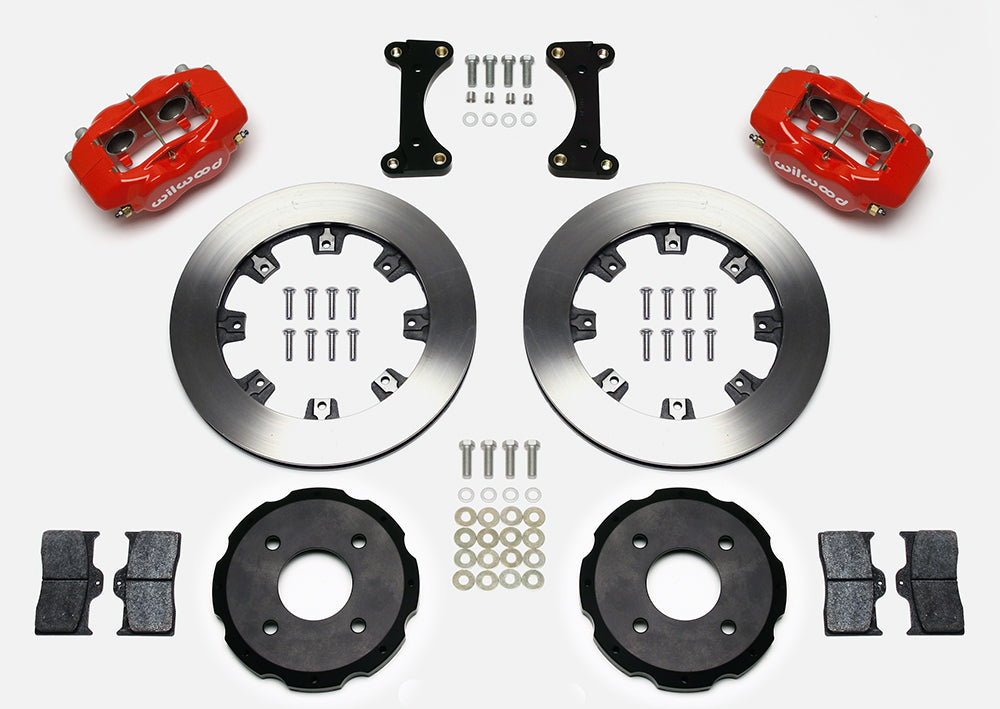

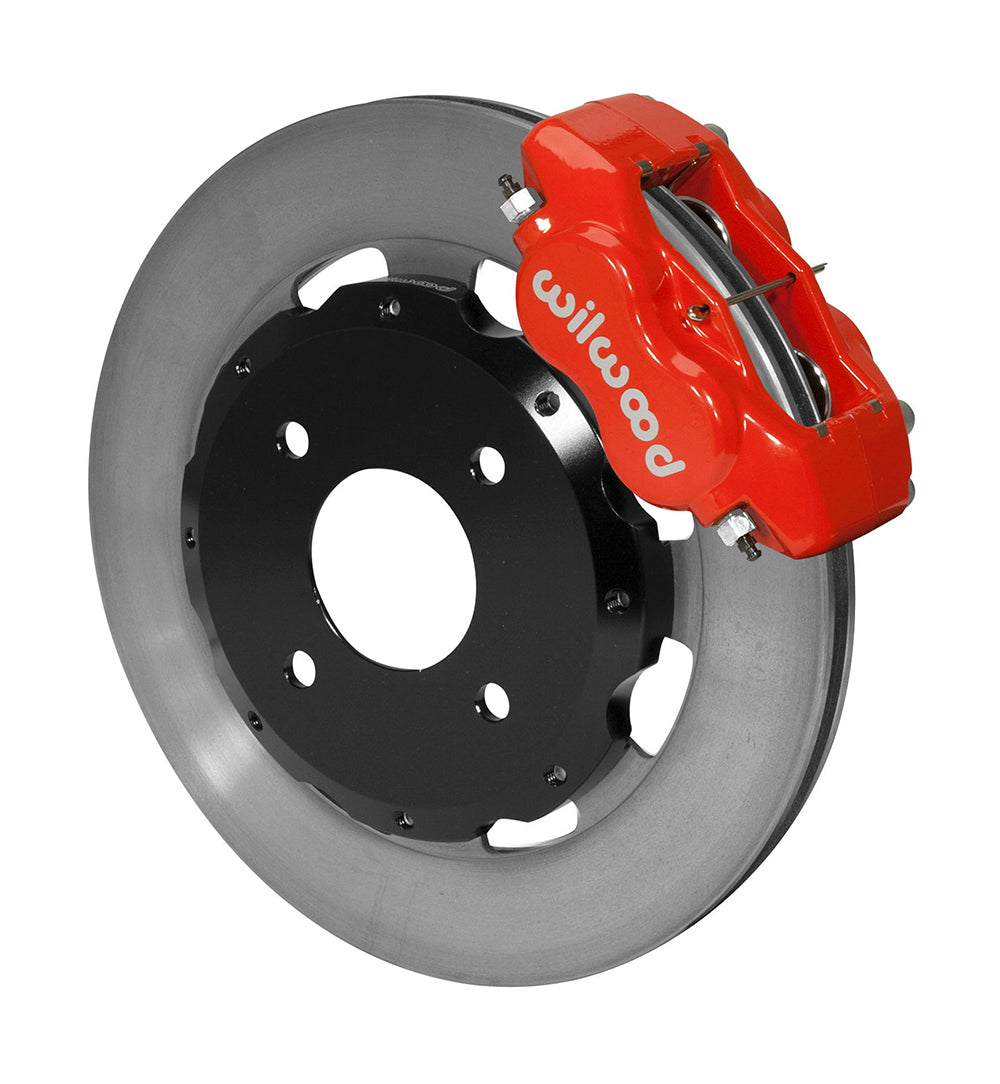

Red calipers are combined with plain vented discs for the specified four-lug Lancer front end. At the front axle, this kit pairs red powder-coated 4-piston calipers and 12.19-inch plain-face rotors with the mounting hardware for Mitsubishi Lancer, four-lug applications. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, with a range including calipers, rotors, master cylinders, valves, fittings and brake lines. Selecting the mounting and hydraulic components together is part of building the complete brake system.

Technical Details

• Manufacturer part number: 140-7015-R.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; Plain Face friction surface.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm.
• Rotor/hat stud-hole clearance diameters: 0.500 in; 12.70 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Package and installation requirements

• Wilwood front flexline kit 220-7016 is not included.

Fitment & Compatibility

Only the specified four-lug Lancer applications are covered: LS from 2002–2005, OZ Rally from 2002–2006, the 2004 Sportback and the 2006 SE. The supplied rotor hats use a 4 x 4.5-inch wheel-stud clearance pattern, and the existing vehicle hubs remain in service. This is not an Evolution brake package and does not establish fitment to a five-lug conversion. Compare the current spindle and hub with DS414 before fitting the larger 12.19-inch rotor. The four-piston Dynalite mounts through the supplied brackets, while brake hoses are selected separately. Because an aftermarket wheel can have a different spoke profile even when its diameter is unchanged, use the complete template to establish clearance for the finished front brake assembly.

The listed applications below retain their equipment qualifiers. Check the matching row and each referenced note before selecting the kit.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

PMB Performance has more than 20 years of experience helping customers select brake components. Share the measurements and photos of your current setup so we can help check the application and the additional pieces needed.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-7016
