Wilwood Mitsubishi Lancer, four-lug applications Front Kit — Red Dynalite, 12.19-inch SRP Drilled/Slotted

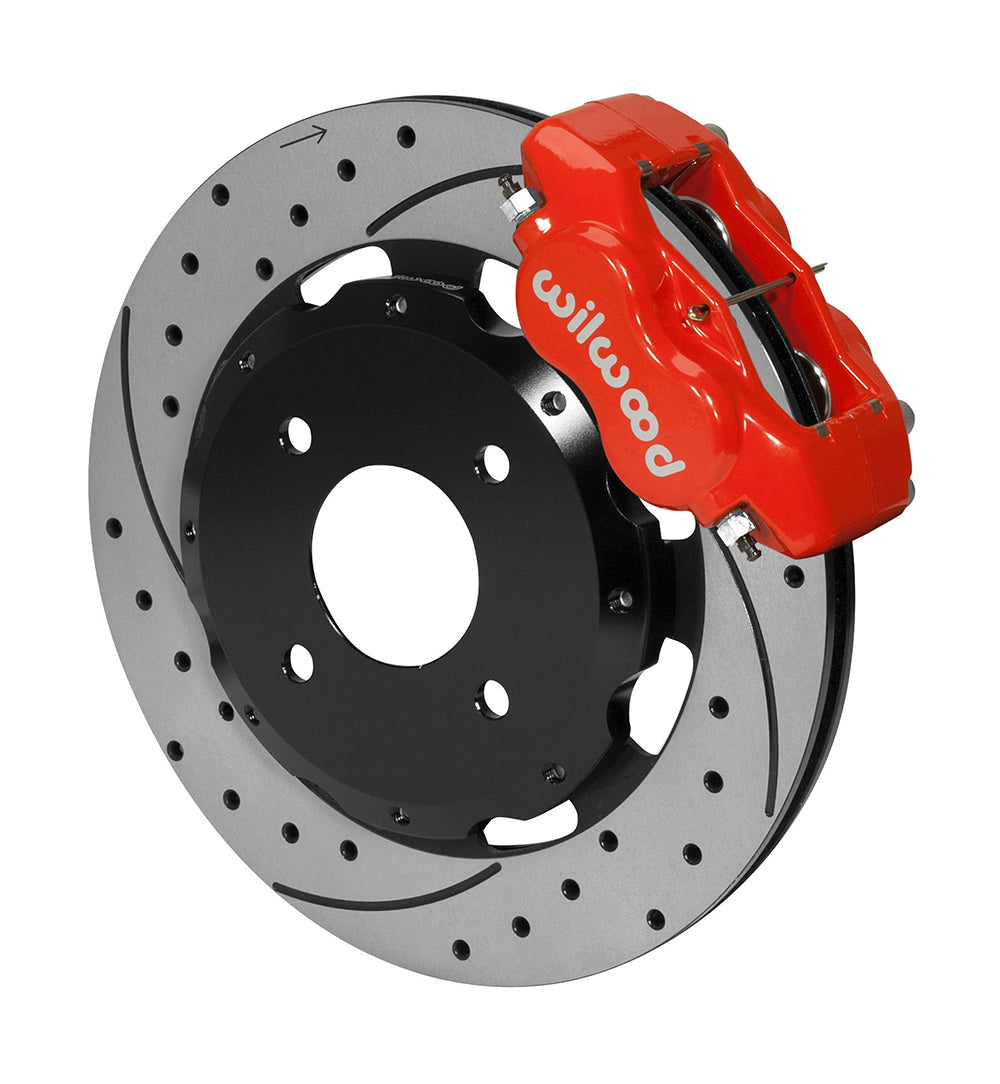

This Lancer package puts red four-piston calipers around a patterned 12.19-inch rotor. For Mitsubishi Lancer, four-lug applications, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this front package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

• Wilwood front flexline kit 220-7016 is not included.

Fitment & Compatibility

Only the specified four-lug Lancer applications are covered: LS from 2002–2005, OZ Rally from 2002–2006, the 2004 Sportback and the 2006 SE. The supplied rotor hats use a 4 x 4.5-inch wheel-stud clearance pattern, and the existing vehicle hubs remain in service. This is not an Evolution brake package and does not establish fitment to a five-lug conversion. Compare the current spindle and hub with DS414 before fitting the larger 12.19-inch rotor. The four-piston Dynalite mounts through the supplied brackets, while brake hoses are selected separately. Because an aftermarket wheel can have a different spoke profile even when its diameter is unchanged, use the complete template to establish clearance for the finished front brake assembly.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

• Manufacturer part number: 140-7015-DR.
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm.
• Rotor/hat stud-hole clearance diameters: 0.500 in; 12.70 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.

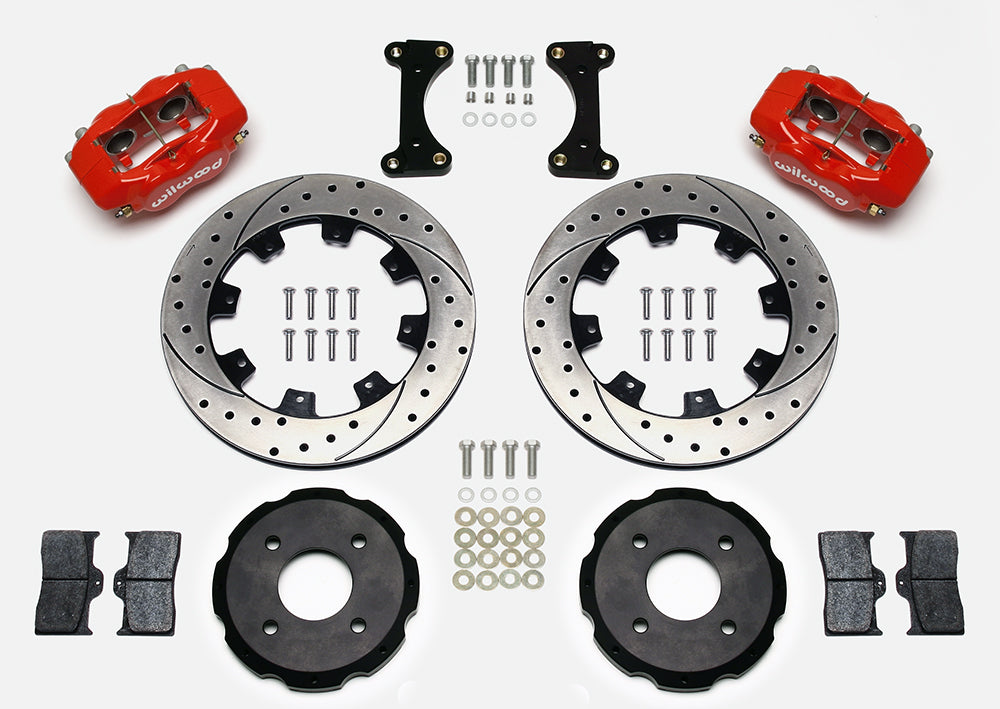

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-7016
