Wilwood Black Dynalite 12.19-inch SRP Drilled/Slotted Front Brakes — Mitsubishi Lancer, four-lug applications

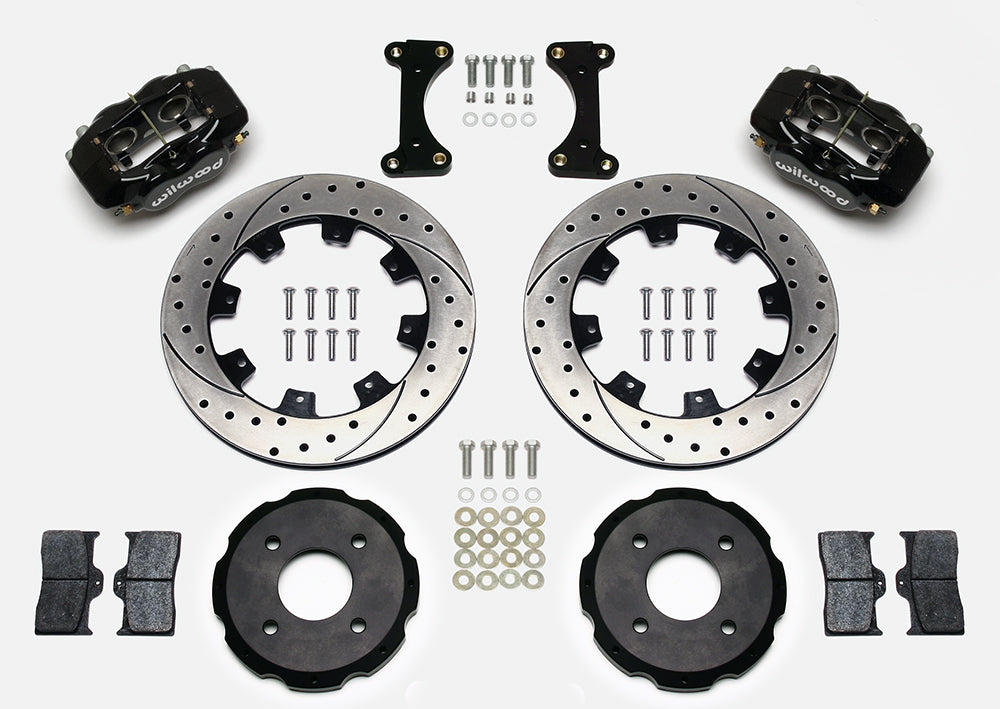

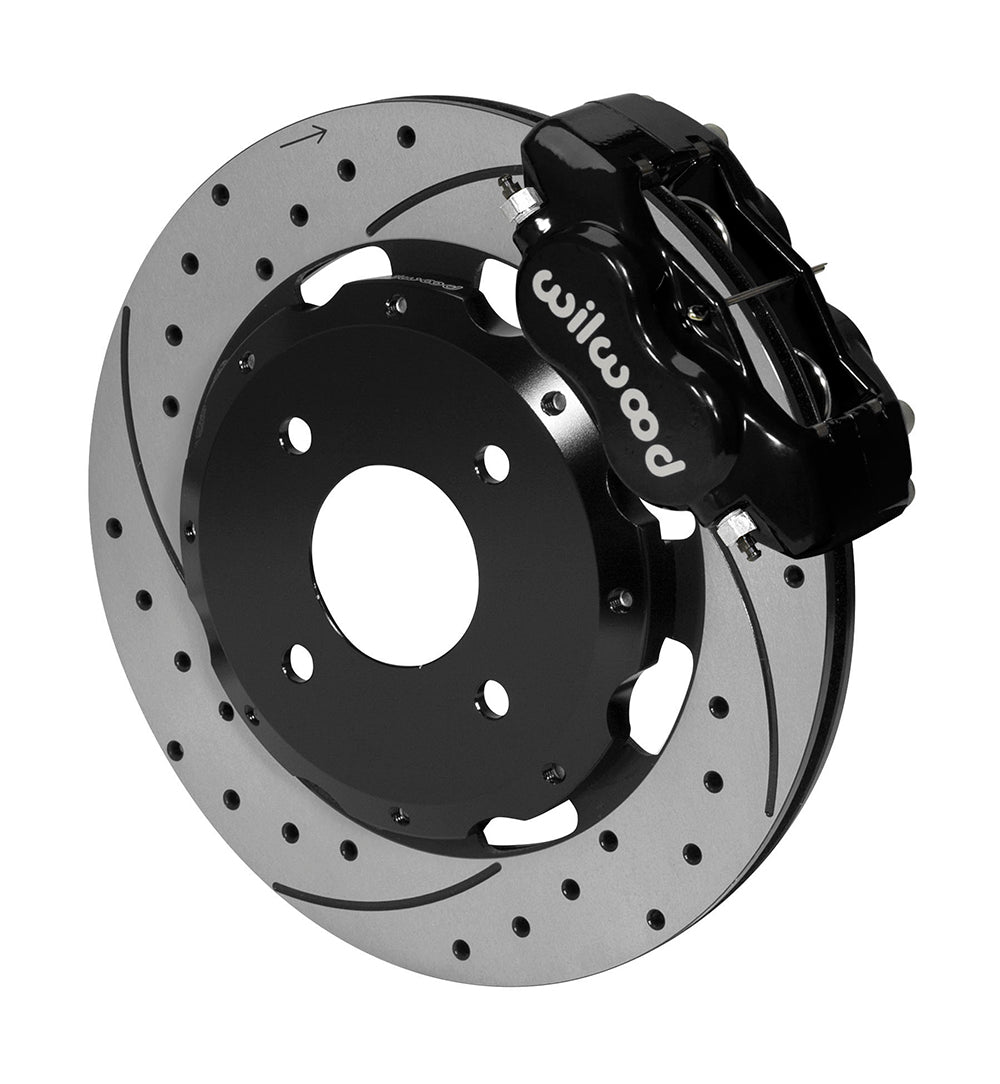

Black calipers and SRP discs identify this drilled-and-slotted option for the listed Lancer trims. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Mitsubishi Lancer, four-lug applications. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

Only the specified four-lug Lancer applications are covered: LS from 2002–2005, OZ Rally from 2002–2006, the 2004 Sportback and the 2006 SE. The supplied rotor hats use a 4 x 4.5-inch wheel-stud clearance pattern, and the existing vehicle hubs remain in service. This is not an Evolution brake package and does not establish fitment to a five-lug conversion. Compare the current spindle and hub with DS414 before fitting the larger 12.19-inch rotor. The four-piston Dynalite mounts through the supplied brackets, while brake hoses are selected separately. Because an aftermarket wheel can have a different spoke profile even when its diameter is unchanged, use the complete template to establish clearance for the finished front brake assembly.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-7015-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm.
• Rotor/hat stud-hole clearance diameters: 0.500 in; 12.70 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• Wilwood front flexline kit 220-7016 is not included.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-7016
