Product details

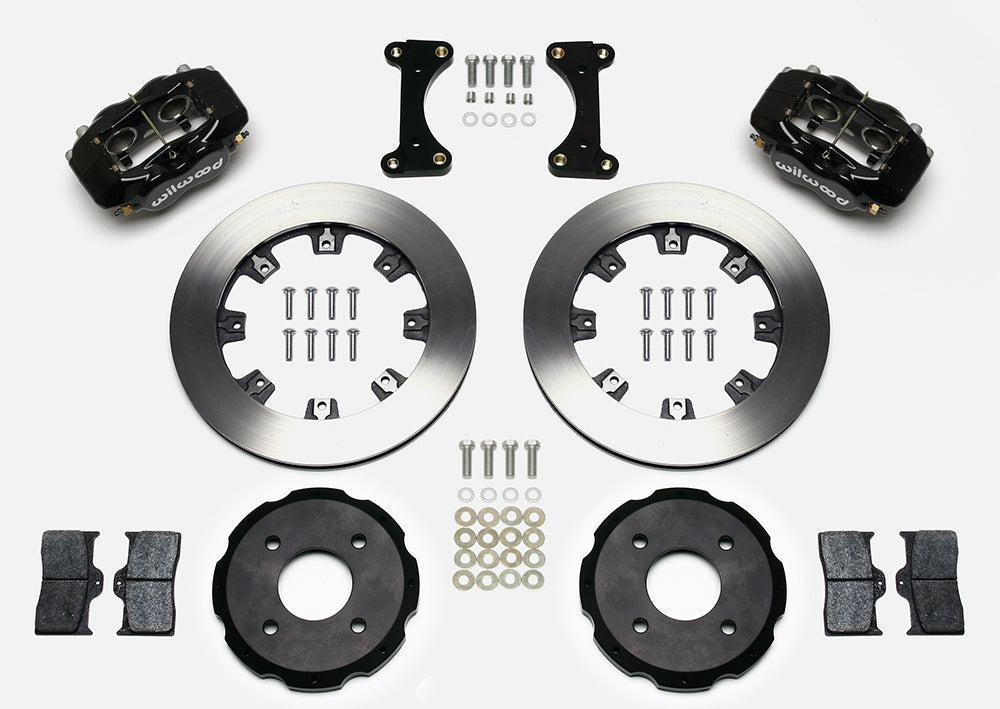

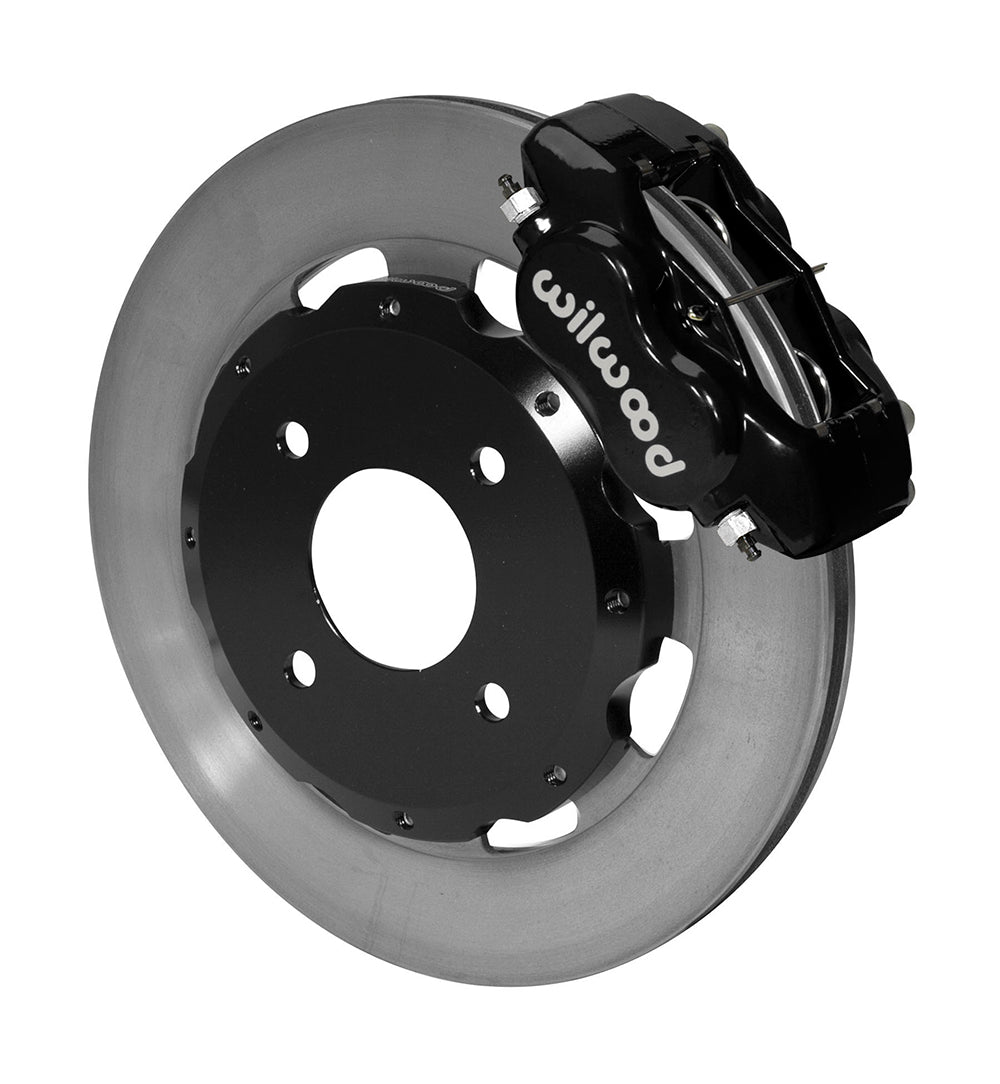

The four-lug Lancer front hub is retained beneath this Dynalite conversion. This Forged Dynalite front brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.
Technical Details
- Manufacturer part number: 140-7015.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; Plain Face friction surface.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Black Powder Coat.
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm.
- Rotor/hat stud-hole clearance diameters: 0.500 in; 12.70 mm. These are hole sizes, not wheel-stud thread specifications.
- The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
- Sold as one kit. Mounting hardware is included. Hubs are not included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
Fitment & Compatibility
Only the specified four-lug Lancer applications are covered: LS from 2002–2005, OZ Rally from 2002–2006, the 2004 Sportback and the 2006 SE. The supplied rotor hats use a 4 x 4.5-inch wheel-stud clearance pattern, and the existing vehicle hubs remain in service. This is not an Evolution brake package and does not establish fitment to a five-lug conversion. Compare the current spindle and hub with DS414 before fitting the larger 12.19-inch rotor. The four-piston Dynalite mounts through the supplied brackets, while brake hoses are selected separately. Because an aftermarket wheel can have a different spoke profile even when its diameter is unchanged, use the complete template to establish clearance for the finished front brake assembly.
The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.
Package and installation requirements
- Wilwood front flexline kit 220-7016 is not included.
Manufacturer references
PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002-2005 | Mitsubishi | Lancer | LS | LS | Disc | Drum | Front Kit | 1, 2, 3 |
| 2002-2006 | Mitsubishi | Lancer | OZ Rally | OZ Rally Edition | Disc | Drum | Front Kit | 1, 2, 3 |
| 2004 | Mitsubishi | Lancer | Sportback | Sportback | Disc | Disc | Front Kit | 1, 2, 3 |
| 2006 | Mitsubishi | Lancer | SE | SE | Disc | Drum | Front Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-7016
