Product details

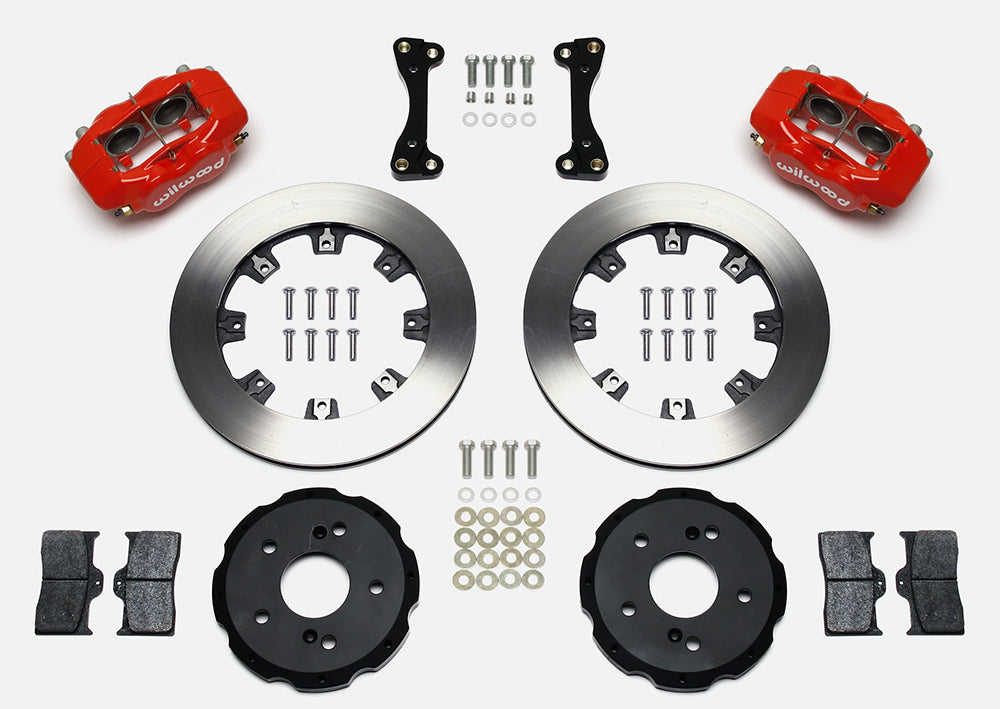

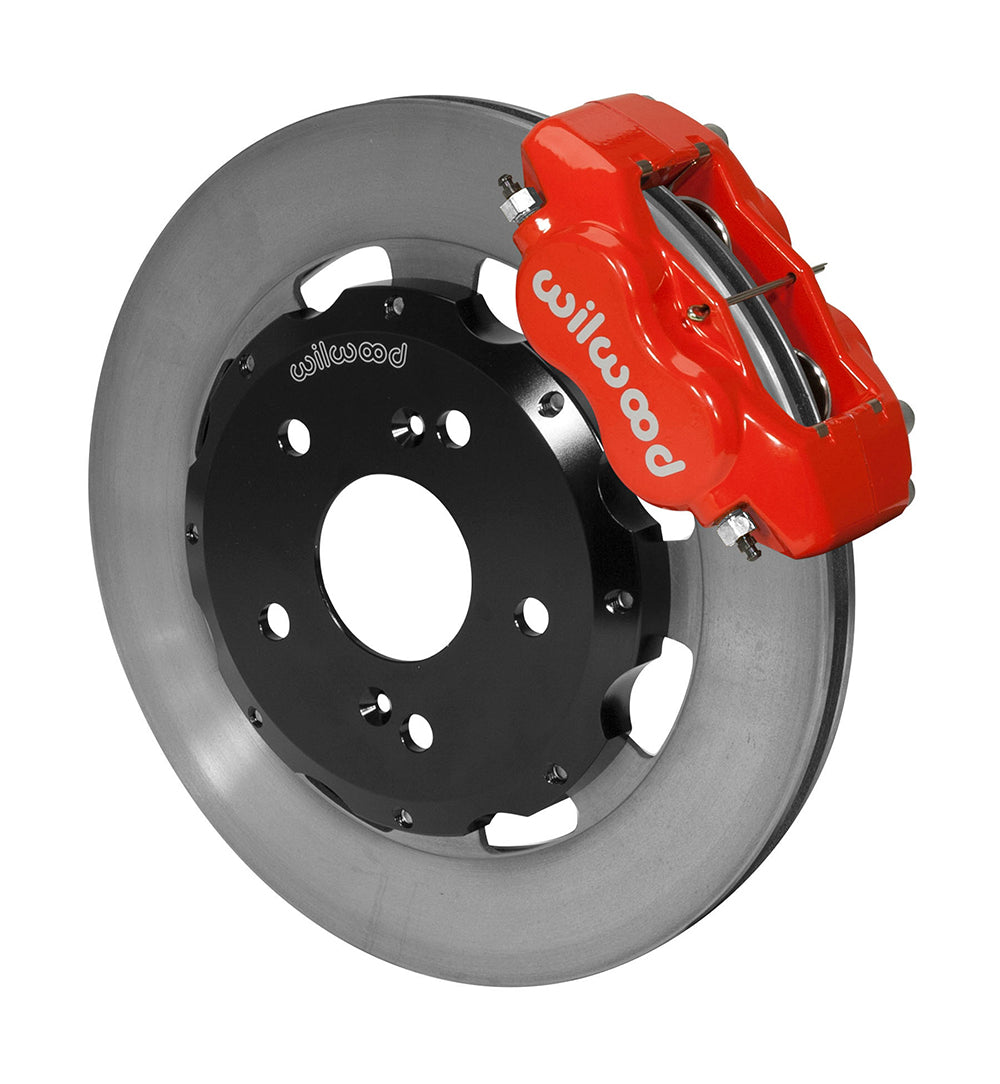

The plain-disc version keeps the rotor surface simple while adding red forged calipers. At the front axle, this kit pairs red powder-coated 4-piston calipers and 12.19-inch plain-face rotors with the mounting hardware for Acura RSX / Honda Element / Civic Si. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, with a range including calipers, rotors, master cylinders, valves, fittings and brake lines. Selecting the mounting and hydraulic components together is part of building the complete brake system.
Technical Details
- Manufacturer part number: 140-7014-R.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; Plain Face friction surface.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Red Powder Coat.
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm.
- Rotor/hat stud-hole clearance diameters: 0.500 in; 12.70 mm. These are hole sizes, not wheel-stud thread specifications.
- The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
- Sold as one kit. Mounting hardware is included. Hubs are not included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
Package and installation requirements
- Front line kit 220-6860 is referenced separately.
Fitment & Compatibility
The manufacturer application table names 2002–2006 Acura RSX, 2003–2011 Honda Element and 2004–2005 Honda Civic Si configurations. DS413 specifically identifies the five-lug arrangement and factory 262 mm disc-brake spindle. Check that physical spindle and hub requirement against the installed vehicle before ordering; model names alone do not resolve a changed or different brake package. The hat must seat flush on the hub flange with the correct center register and stud clearance. Do not interpret clearance drilling in the hat as a conversion of the vehicle’s wheel bolt pattern. Use the instruction drawing for wheel fit and verify that the separate flexlines suit the steering and suspension travel.
The listed applications below retain their equipment qualifiers. Check the matching row and each referenced note before selecting the kit.
Manufacturer references
PMB Performance has more than 20 years of experience helping customers select brake components. Share the measurements and photos of your current setup so we can help check the application and the additional pieces needed.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002-2006 | Acura | RSX | Except Type-S | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2002-2006 | Acura | RSX | Type-S only | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2003-2011 | Honda | Element | All | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2004-2005 | Honda | Civic | Si | SI | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6860
