Product details

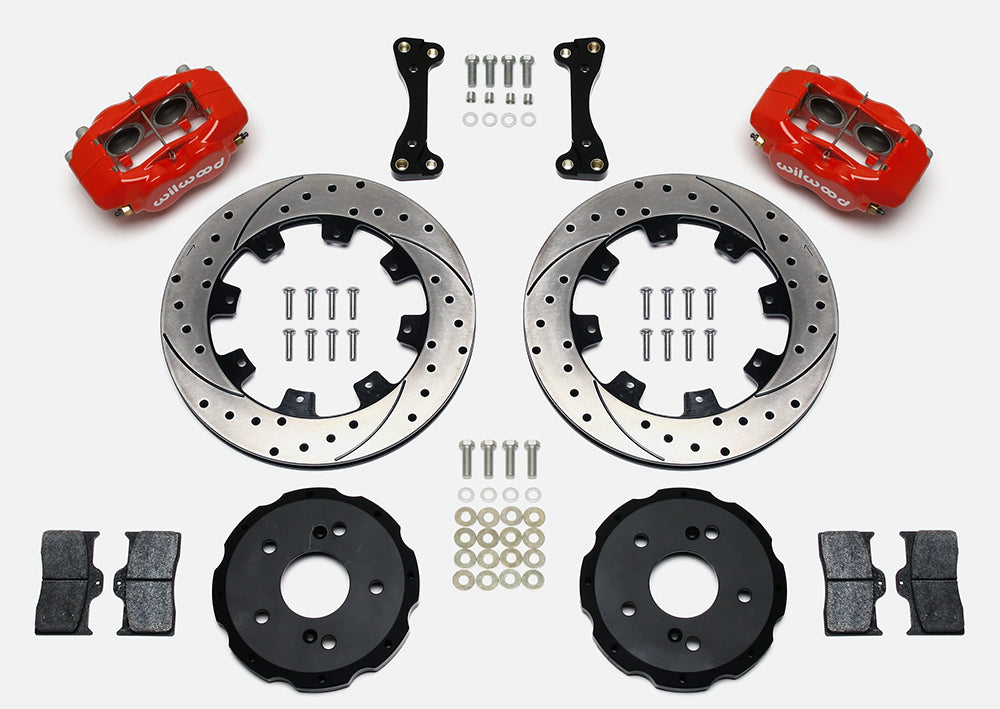

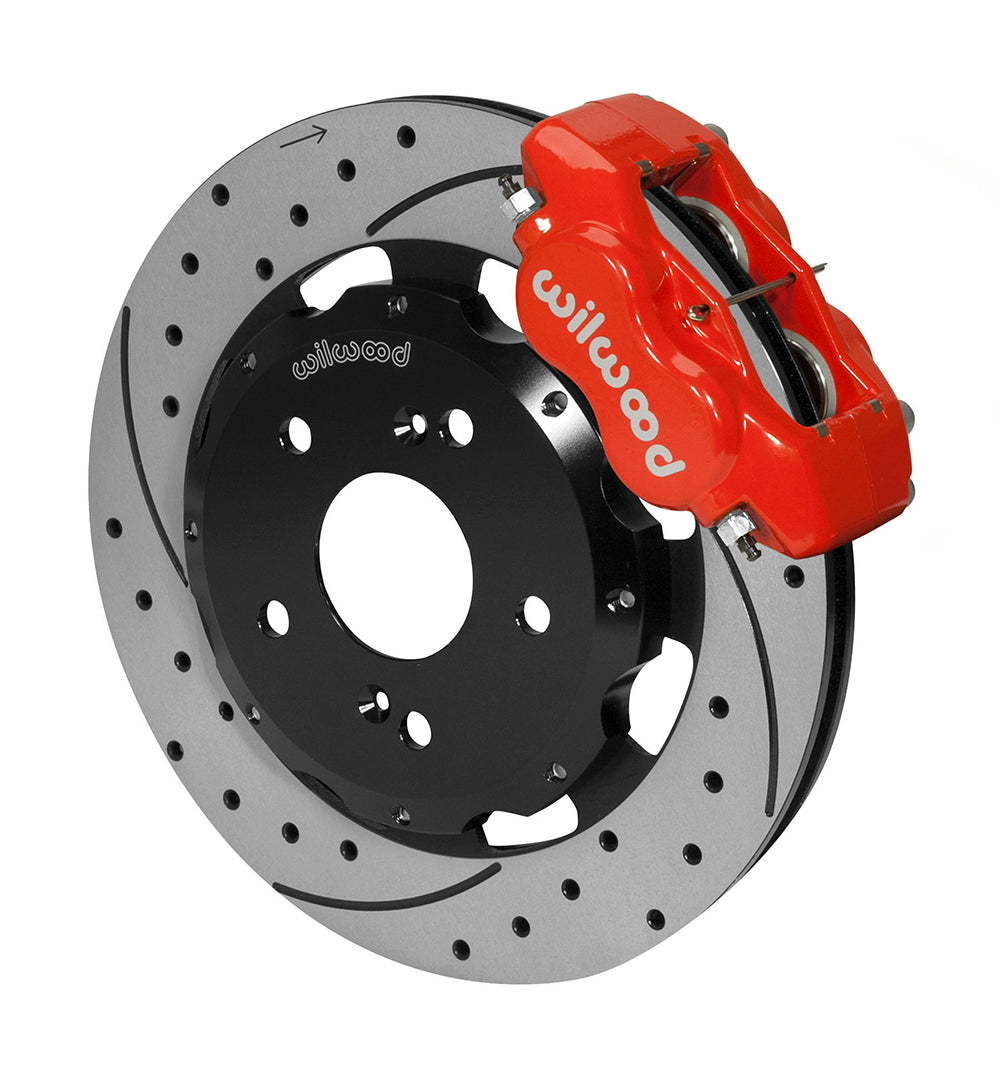

Red calipers frame drilled-and-slotted iron discs in this Honda/Acura five-lug kit. For Acura RSX / Honda Element / Civic Si, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this front package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.
Package and installation requirements
- Front line kit 220-6860 is referenced separately.
Fitment & Compatibility
The manufacturer application table names 2002–2006 Acura RSX, 2003–2011 Honda Element and 2004–2005 Honda Civic Si configurations. DS413 specifically identifies the five-lug arrangement and factory 262 mm disc-brake spindle. Check that physical spindle and hub requirement against the installed vehicle before ordering; model names alone do not resolve a changed or different brake package. The hat must seat flush on the hub flange with the correct center register and stud clearance. Do not interpret clearance drilling in the hat as a conversion of the vehicle’s wheel bolt pattern. Use the instruction drawing for wheel fit and verify that the separate flexlines suit the steering and suspension travel.
Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.
Technical Details
- Manufacturer part number: 140-7014-DR.
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm.
- Rotor/hat stud-hole clearance diameters: 0.500 in; 12.70 mm. These are hole sizes, not wheel-stud thread specifications.
- The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Red Powder Coat.
- Sold as one kit. Mounting hardware is included. Hubs are not included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
Manufacturer references
For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002-2006 | Acura | RSX | Except Type-S | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2002-2006 | Acura | RSX | Type-S only | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2003-2011 | Honda | Element | All | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2004-2005 | Honda | Civic | Si | SI | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6860
