Product details

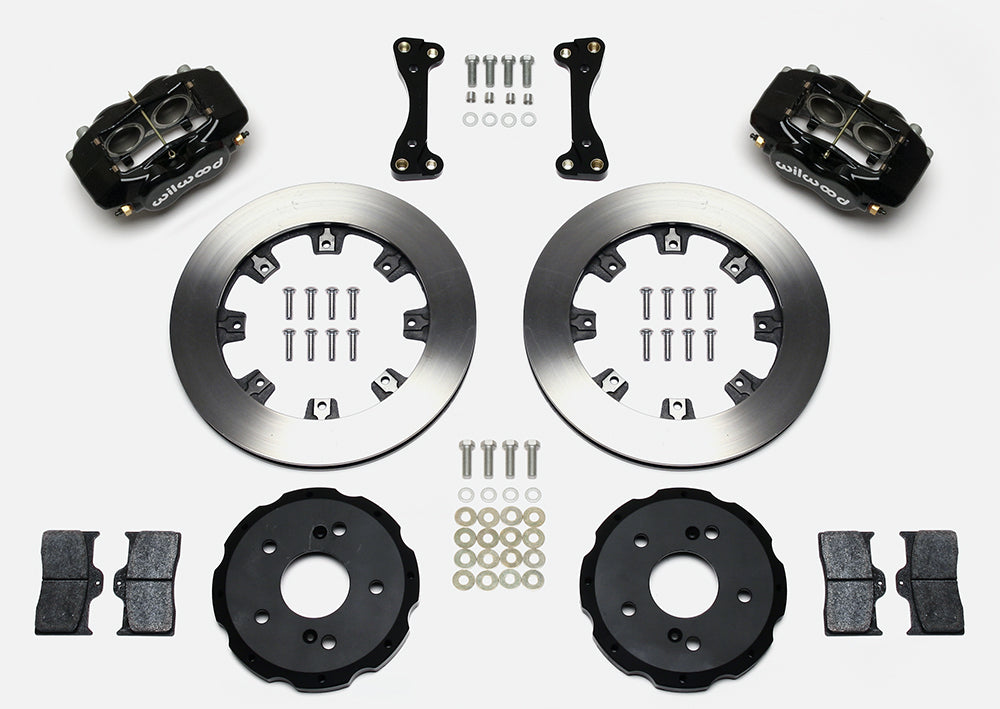

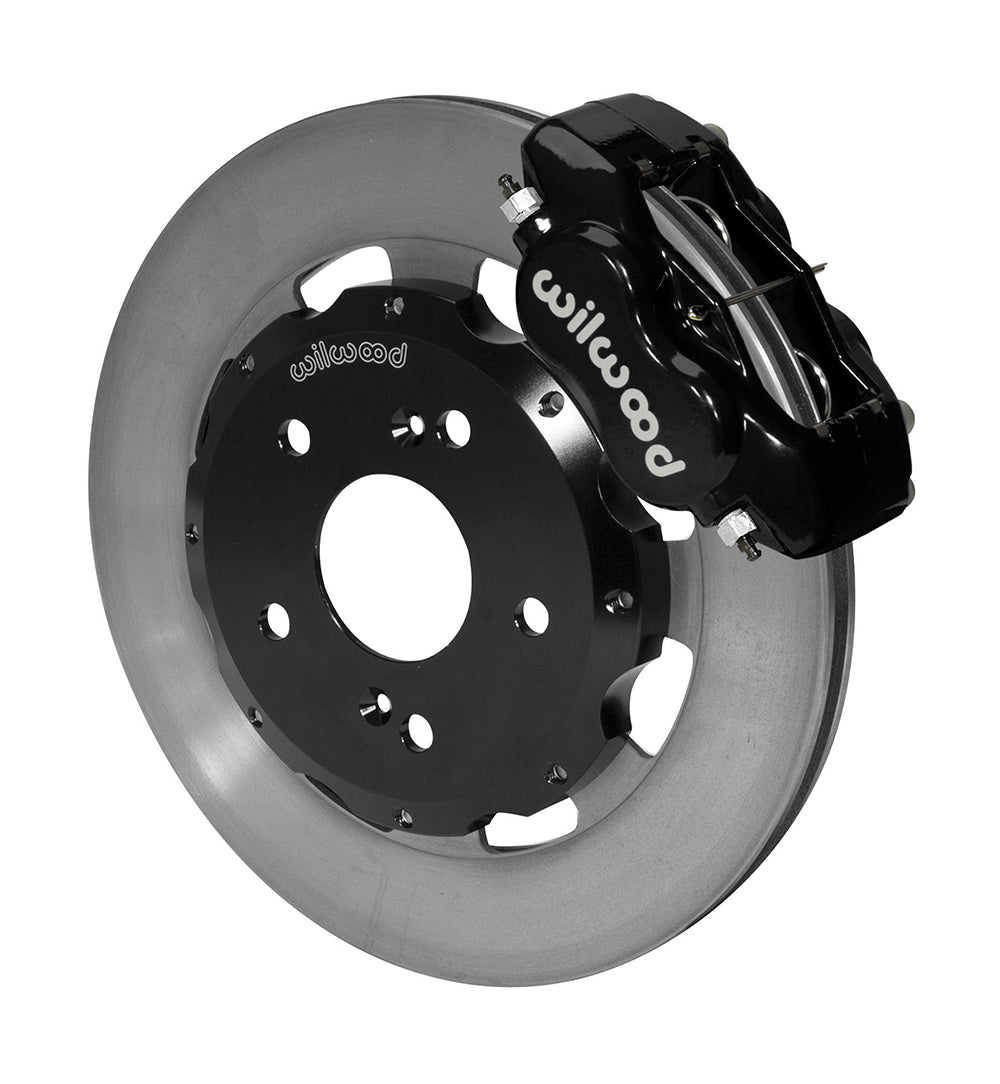

Five-lug Honda and Acura hubs are the foundation for this 12.19-inch front conversion. This Forged Dynalite front brake kit combines black powder-coated 4-piston calipers and 12.19-inch plain-face rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.
Technical Details
- Manufacturer part number: 140-7014.
- Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
- Rotor construction: Iron; vented; Plain Face friction surface.
- Calipers: 4 pistons; forged aluminum; stainless steel pistons.
- Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
- Caliper finish: Black Powder Coat.
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm.
- Rotor/hat stud-hole clearance diameters: 0.500 in; 12.70 mm. These are hole sizes, not wheel-stud thread specifications.
- The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
- Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
- Sold as one kit. Mounting hardware is included. Hubs are not included.
- Brake pads are included; use the compound and installation instructions specified for this rotor package.
- Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
Fitment & Compatibility
The manufacturer application table names 2002–2006 Acura RSX, 2003–2011 Honda Element and 2004–2005 Honda Civic Si configurations. DS413 specifically identifies the five-lug arrangement and factory 262 mm disc-brake spindle. Check that physical spindle and hub requirement against the installed vehicle before ordering; model names alone do not resolve a changed or different brake package. The hat must seat flush on the hub flange with the correct center register and stud clearance. Do not interpret clearance drilling in the hat as a conversion of the vehicle’s wheel bolt pattern. Use the instruction drawing for wheel fit and verify that the separate flexlines suit the steering and suspension travel.
The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.
Package and installation requirements
- Front line kit 220-6860 is referenced separately.
Manufacturer references
PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002-2006 | Acura | RSX | Except Type-S | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2002-2006 | Acura | RSX | Type-S only | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2003-2011 | Honda | Element | All | Disc | Disc | Front Kit | 1, 2, 3 | |
| 2004-2005 | Honda | Civic | Si | SI | Disc | Disc | Front Kit | 1, 2, 3 |
Application Notes
- Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-6860
