Wilwood Selected Subaru Impreza / Forester and Saab 9-2X Rear Conversion — Red Dynapro, 12.19-inch SRP Rotors

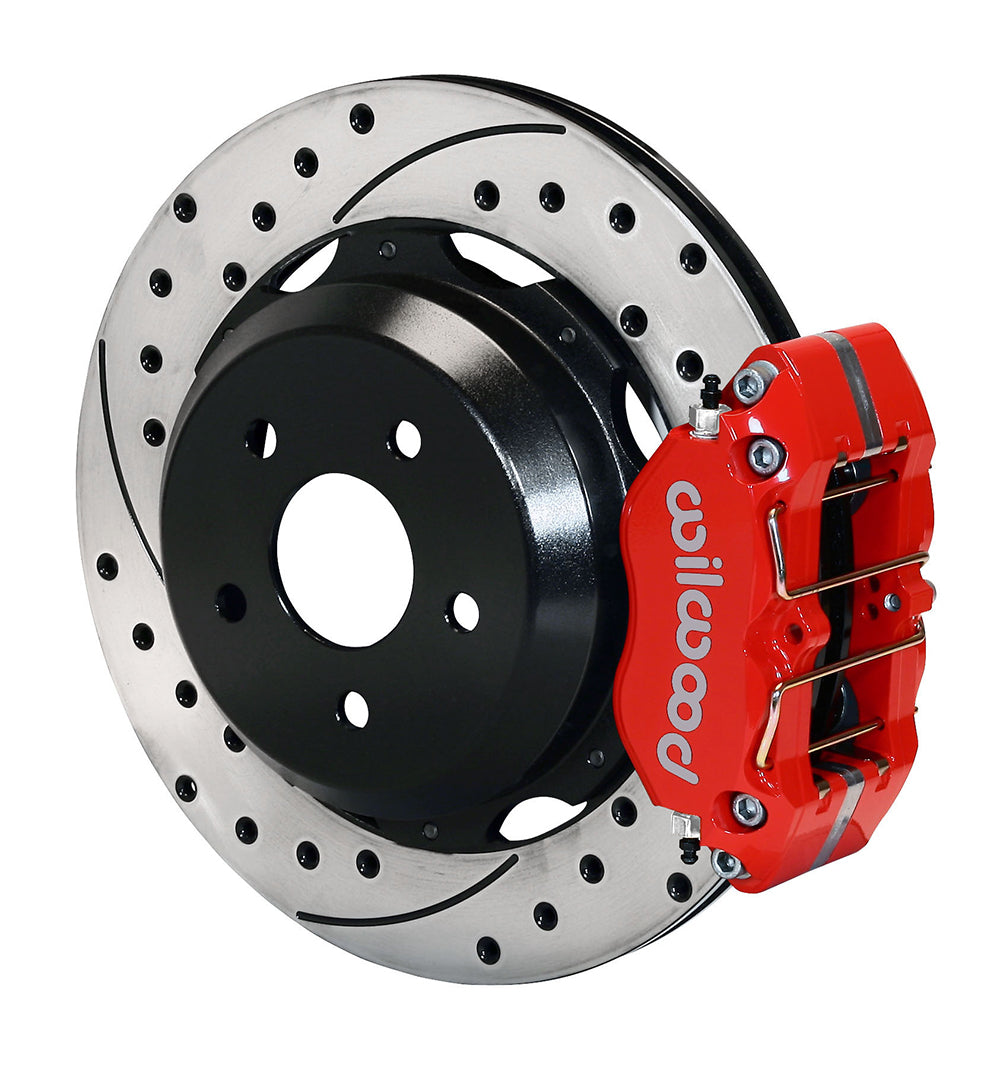

This red rear package retains the original parking-brake hardware beneath its drilled-and-slotted discs. For Subaru Impreza / Forester and Saab 9-2X, Wilwood specifies red powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors in this rear package. Bill Wood founded Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components including calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit should be matched to the hydraulic and mechanical requirements of the complete vehicle.

Package and installation requirements

• Rear flexline kit 220-7010 is purchased separately.

Fitment & Compatibility

A single-piston factory rear caliper and 170 mm parking-brake shoes are the essential starting equipment for this US-market Subaru/Saab package. The list includes Impreza RS from 1999–2005 and WRX from 2002–2005, plus the specified 2004 Outback/TS, 2005–2007 Outback Sport and 2006–2007 2.5i versions. Forester applications from 2001–2008 require factory rear discs, and Saab coverage is the 2005–2006 9-2X. These entries are not interchangeable with every Subaru rear brake package. The existing parking mechanism remains in use beneath the replacement rotor, so inspect its shoes and operating parts before installation. Confirm the entire row below and the DS411 mounting drawing, particularly if the car has acquired donor hubs or larger rear brakes.

Before ordering, compare the wheel profile with the Wilwood clearance diagram. The stated minimum size does not establish spoke or barrel clearance for every wheel of that diameter.

Review the fitment table and numbered notes below together; a matching model name alone does not establish the installation.

Technical Details

• Manufacturer part number: 140-7006-DR.
• Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.510 in; 12.95 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Housing/flange arrangement: OEM.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.

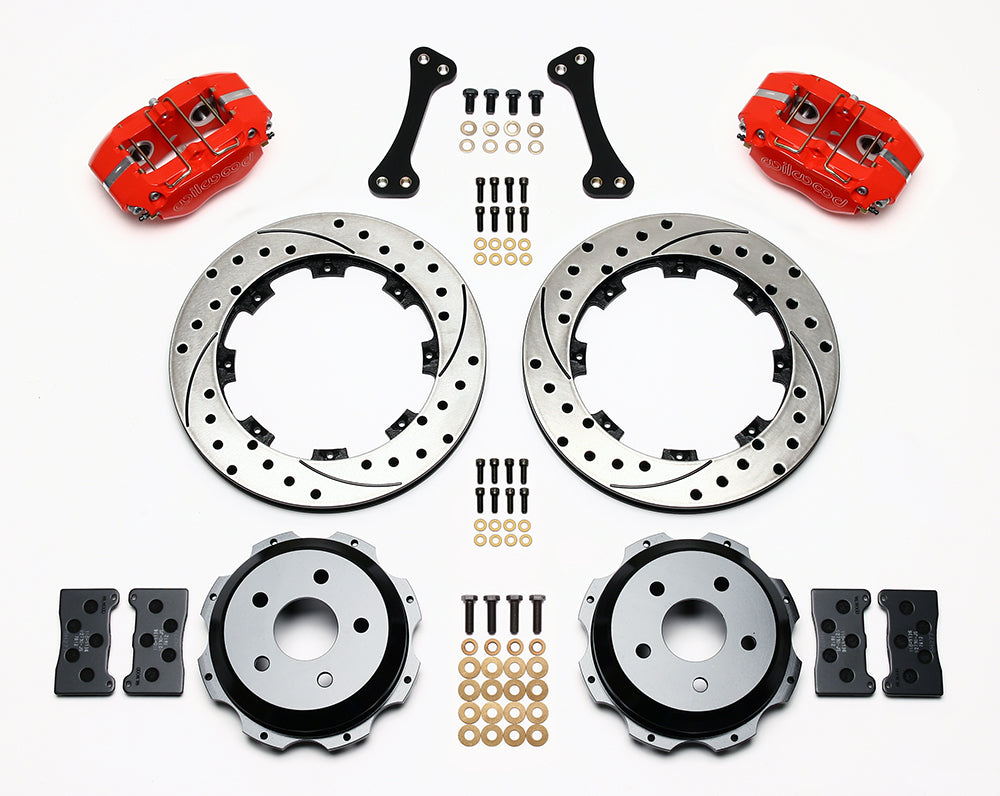

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

For help selecting the correct package, contact PMB Performance with the installed brake and mounting details. Our team has over 20 years of experience with brake components and fitment.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
3. Line kit included (manufacturer): None
4. Rear line-kit reference: 220-7010
