Wilwood Black Dynapro Rear Kit, 12.19-inch SRP Rotors — Selected Subaru Impreza / Forester and Saab 9-2X

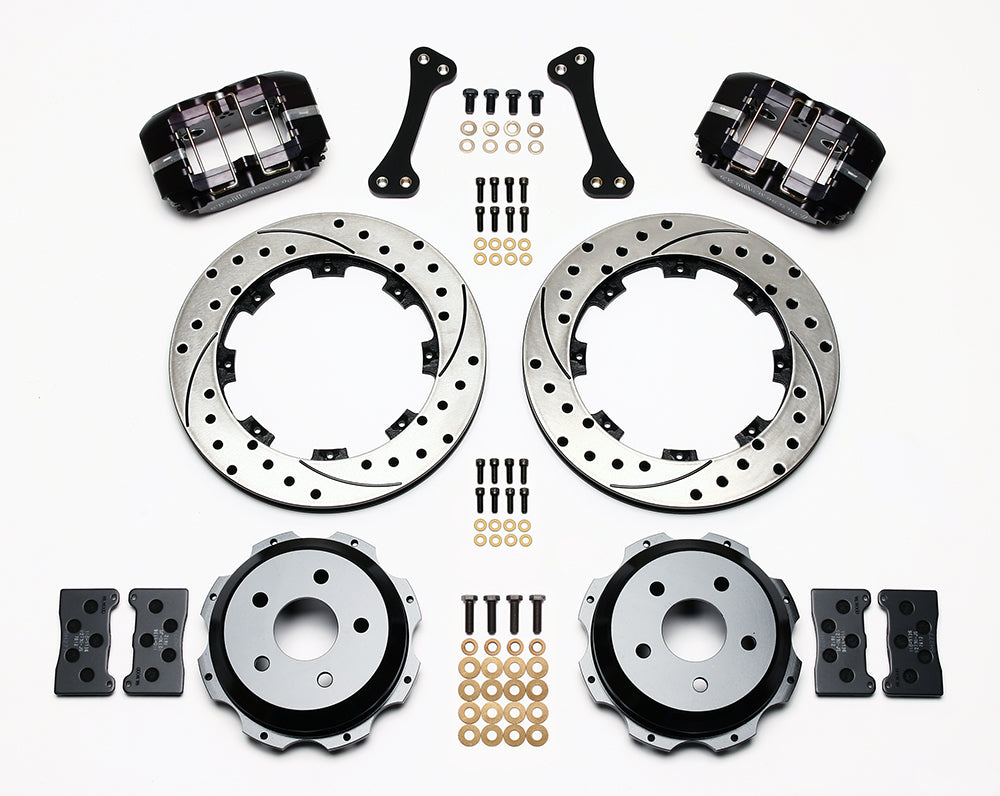

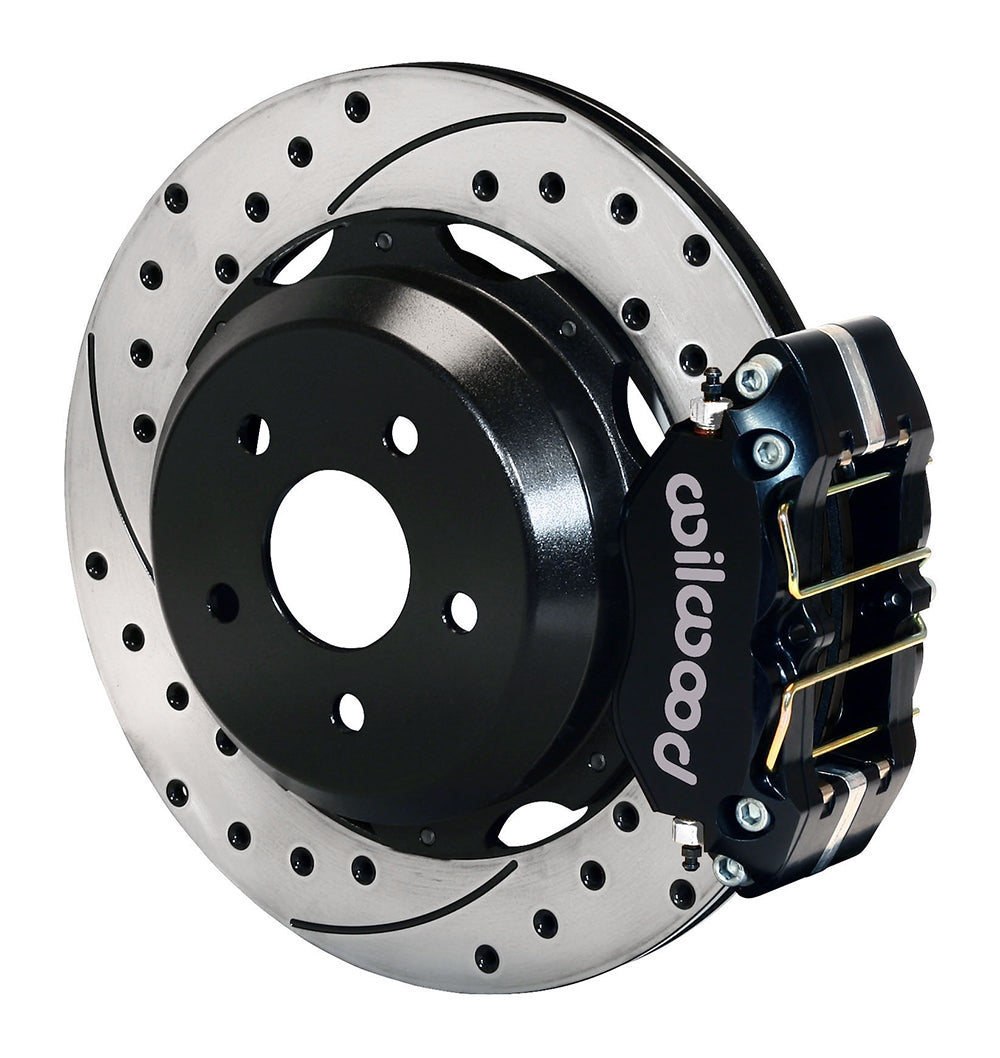

Black Dynapro calipers and SRP discs suit the listed single-piston factory rear-brake applications. The supplied black powder-coated 4-piston calipers and 12.19-inch SRP drilled-and-slotted rotors are configured for Subaru Impreza / Forester and Saab 9-2X. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized vehicles. Calipers, rotors, master cylinders, valves, fittings and brake lines must be selected around the needs of the complete system.

Fitment & Compatibility

A single-piston factory rear caliper and 170 mm parking-brake shoes are the essential starting equipment for this US-market Subaru/Saab package. The list includes Impreza RS from 1999–2005 and WRX from 2002–2005, plus the specified 2004 Outback/TS, 2005–2007 Outback Sport and 2006–2007 2.5i versions. Forester applications from 2001–2008 require factory rear discs, and Saab coverage is the 2005–2006 9-2X. These entries are not interchangeable with every Subaru rear brake package. The existing parking mechanism remains in use beneath the replacement rotor, so inspect its shoes and operating parts before installation. Confirm the entire row below and the DS411 mounting drawing, particularly if the car has acquired donor hubs or larger rear brakes.

Check the actual wheel against the manufacturer template, including the inner barrel and back of the spokes. A nominal wheel diameter by itself does not guarantee clearance.

Use the complete vehicle row and its application notes below to check model year, trim and original brake equipment.

Technical Details

• Manufacturer part number: 140-7006-D.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.510 in; 12.95 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; SRP Drilled & Slotted friction surface.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.
• Housing/flange arrangement: OEM.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.

Package and installation requirements

• Rear flexline kit 220-7010 is purchased separately.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

With over 20 years of experience, PMB Performance can help you work through the mounting and brake-system details before ordering. Include your vehicle information and any axle, hub or spindle changes when contacting us.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
3. Line kit included (manufacturer): None
4. Rear line-kit reference: 220-7010
