Wilwood Billet Superlite 6 Front Kit for 1993–1997 Chevrolet Camaro / Pontiac Firebird — 12.88-inch GT Slotted, Black

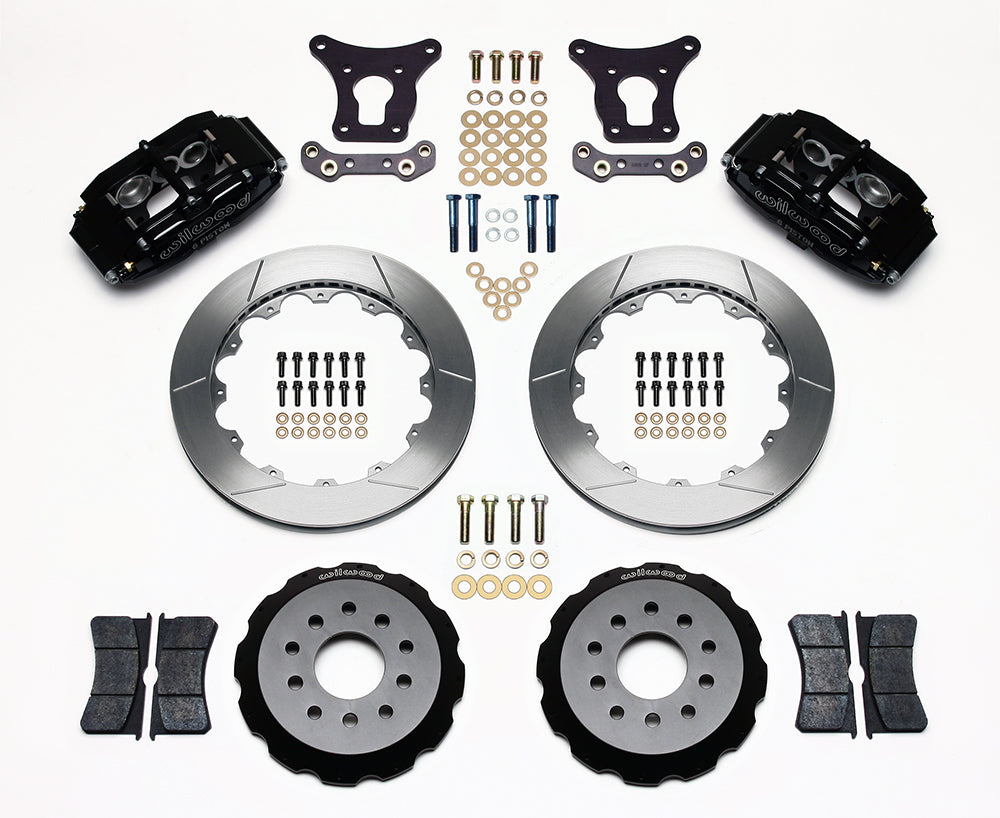

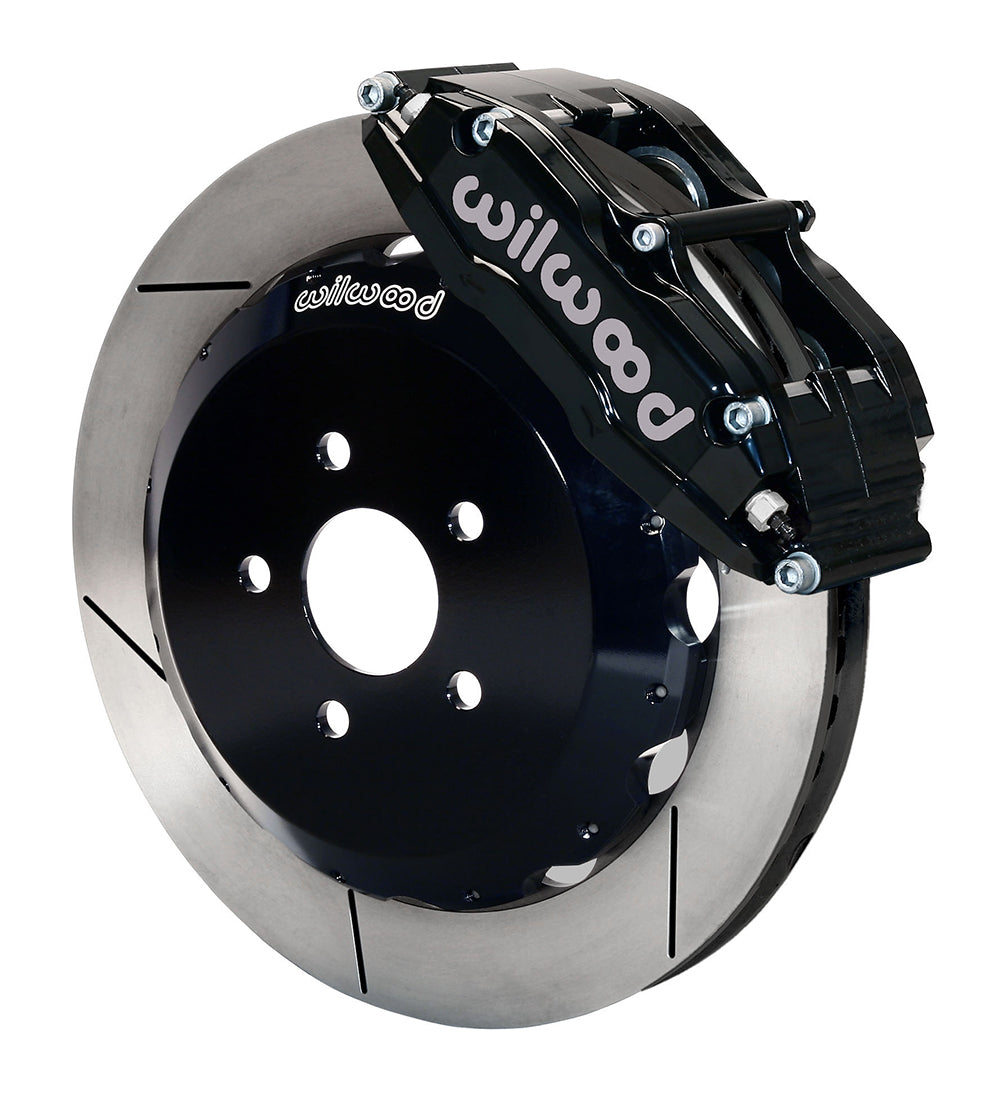

The six-piston Billet Superlite package brings a 12.88-inch Spec-37 rotor to the 1993–1997 F-body front end. This Billet Superlite six-piston front brake kit combines black powder-coated 6-piston calipers and 12.88-inch GT-slotted rotors. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together as a complete brake system.

Technical Details

• Manufacturer part number: 140-6743.
• Rotor dimensions: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick.
• Rotor construction: Spec-37 Iron; vented; GT Slotted friction surface.
• Calipers: 6 pistons; billet aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Black Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Rotor/hat stud-hole clearance diameters: 0.560 in; 14.22 mm; 0.520 in; 13.21 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.
• Wheel-size guide: 17 in; 431.8 mm minimum nominal diameter; verify actual template clearance.
• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Fitment & Compatibility

This front package is for the listed 1993–1997 Chevrolet Camaro and Pontiac Firebird applications. Its six-piston calipers are machined from billet aluminum, while the 12.88 x 1.10-inch vented rotors use Spec-37 iron. Those dimensions determine a different wheel envelope from the factory brakes. Use DS406 to compare the back of the wheel spokes and the barrel with the complete caliper/rotor profile; a nominal 17-inch wheel is only the starting size guide. The kit mounts through the specified front hub and spindle arrangement rather than supplying replacement hubs. Check their condition and the installation drawing before assembly. Hydraulic flexlines are a separate purchase, with Wilwood identifying the F-body line kit in the manufacturer references.

The application table below identifies the model-year and factory-equipment combinations. Match the entire row, including its numbered notes.

Package and installation requirements

• Front hose kit 220-6746 is separate from the brake kit.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

PMB Performance brings more than 20 years of brake and parts experience to fitment questions. Send us the axle or spindle details, current brake equipment and intended wheel dimensions if you need help checking this kit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-6746
