Wilwood 12.19-inch Plain Dynalite Front Kit, Red — Chrysler PT Cruiser / Dodge Neon SRT-4

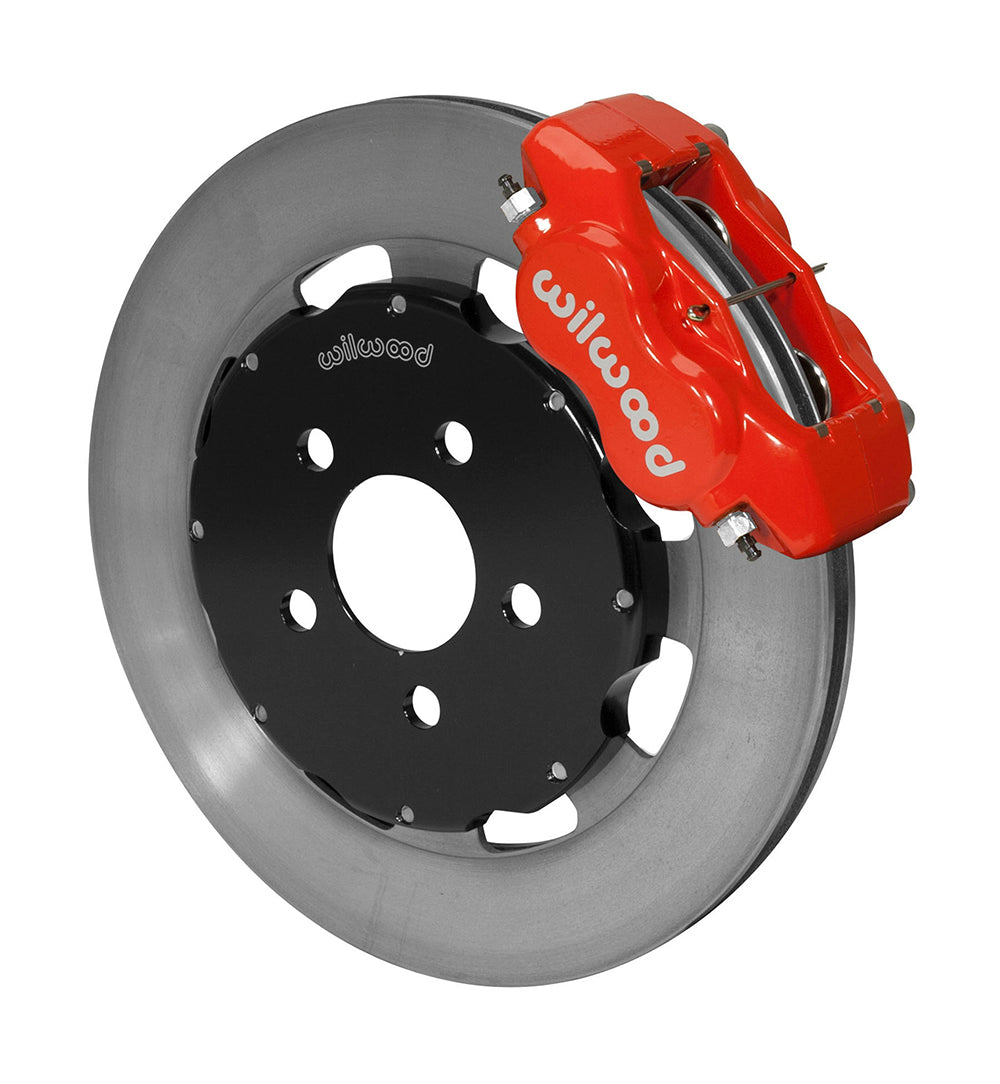

Red forged calipers are paired with plain iron discs for the listed Chrysler and Dodge front ends. At the front axle, this kit pairs red powder-coated 4-piston calipers and 12.19-inch plain-face rotors with the mounting hardware for Chrysler PT Cruiser / Dodge Neon SRT-4. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, with a range including calipers, rotors, master cylinders, valves, fittings and brake lines. Selecting the mounting and hydraulic components together is part of building the complete brake system.

Technical Details

• Manufacturer part number: 140-6376-R.
• Rotor dimensions: 12.19 in; 309.63 mm diameter x 0.81 in; 20.57 mm thick.
• Rotor construction: Iron; vented; Plain Face friction surface.
• Wheel-size guide: 15 in; 381 mm minimum nominal diameter; verify actual template clearance.
• Calipers: 4 pistons; forged aluminum; stainless steel pistons.
• Caliper attachment: lug mount; 1/8-27 NPT hydraulic inlet.
• Caliper finish: Red Powder Coat.
• Rotor/hat wheel-stud clearance patterns: 5 x 3.93 in.
• Rotor/hat stud-hole clearance diameters: 0.550 in; 13.97 mm. These are hole sizes, not wheel-stud thread specifications.
• The rotor/hat drilling does not change the vehicle hub or axle wheel bolt pattern.

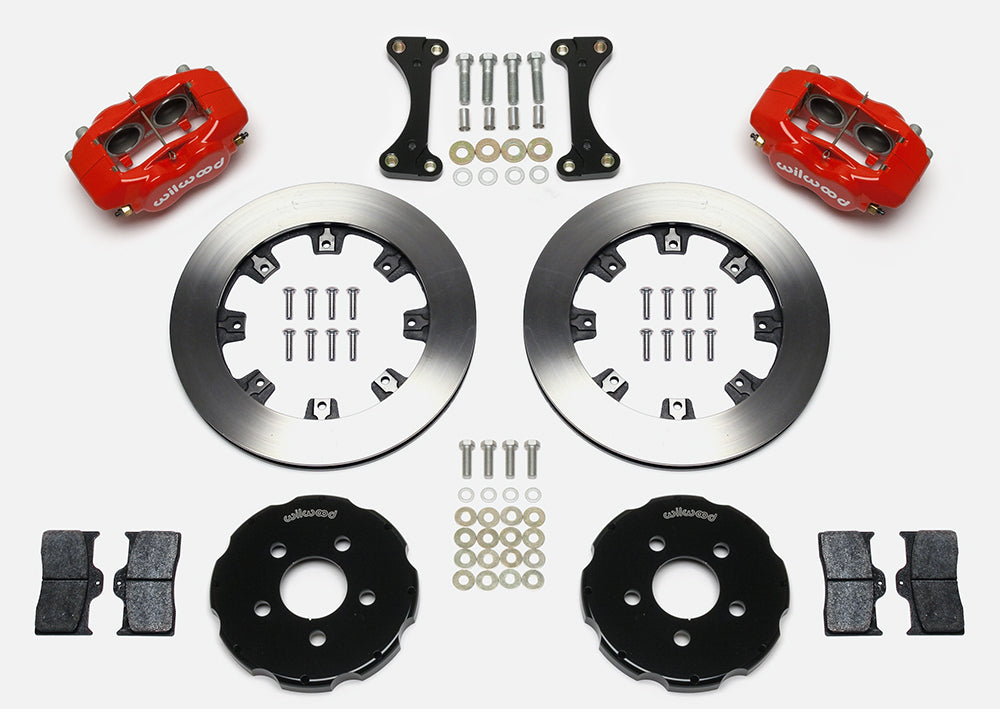

• Sold as one kit. Mounting hardware is included. Hubs are not included.
• Brake pads are included; use the compound and installation instructions specified for this rotor package.
• Spindles, master cylinder, brake booster and hydraulic brake lines are not included.

Package and installation requirements

• Front brake hose kit 220-6428 is listed separately.

Fitment & Compatibility

PT Cruiser applications span the listed 2001–2010 configurations, including the specific factory rear-brake and turbo qualifiers shown below. Dodge fitment is limited to the 2003–2005 Neon SRT-4; an ordinary Neon is not covered by that listing. This front conversion uses the existing hub, so check its center register, wheel-stud pattern and condition before assembly. DS385 provides the mounting sequence and the wheel-clearance profile for the larger 12.19-inch disc and fixed four-piston caliper. Any prior hub or spindle changes need to be checked independently of the vehicle model. Hydraulic flexlines are separate from the kit; route them through full steering and suspension travel as directed by the installation instructions.

The listed applications below retain their equipment qualifiers. Check the matching row and each referenced note before selecting the kit.

Manufacturer references

• Wilwood product and configuration information
• Installation instructions

PMB Performance has more than 20 years of experience helping customers select brake components. Share the measurements and photos of your current setup so we can help check the application and the additional pieces needed.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Application Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Line kit included (manufacturer): None
3. Front line-kit reference: 220-6428
